Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*

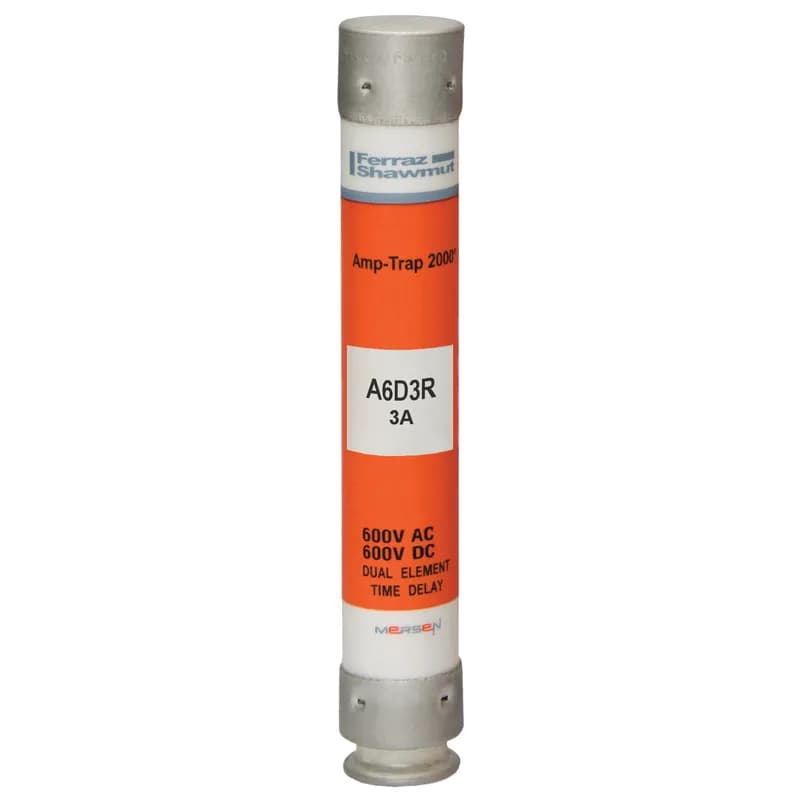

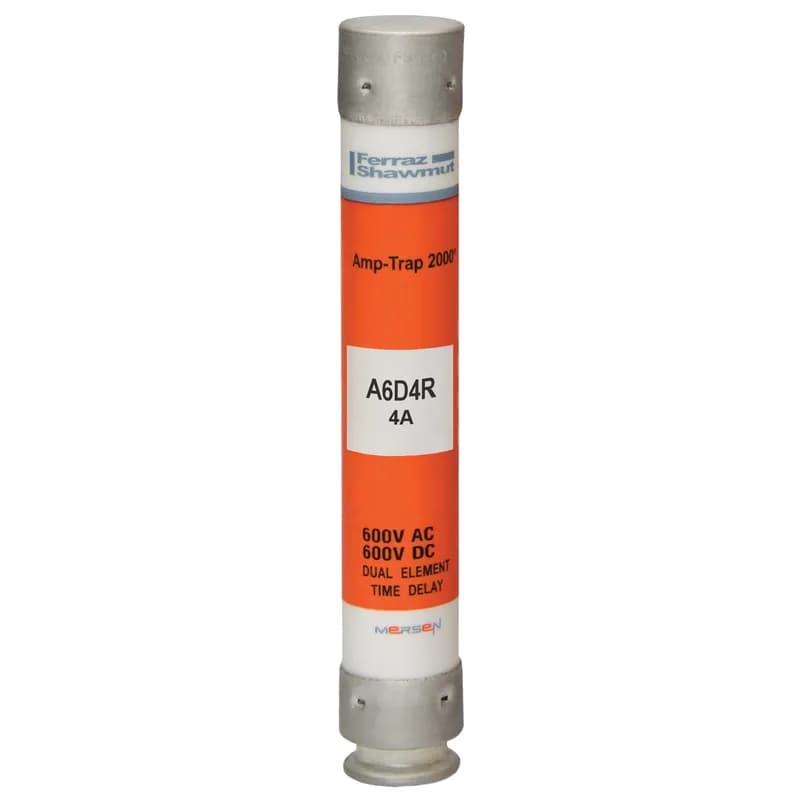

Overview
- Class RK1 Time-Delay Fuse for reliable motor and transformer protection
- 600VAC/600VDC dual voltage rating
- 2.8A current rating with 300kA interrupting capacity
- IEC Type 2 "no damage" protection
- Rejection-style design and high-visibility orange label for safety and identification
Specifications
AC Voltage Rating | 600 V |
Amperage Rating | 2.8 A |
Application | Motors Safety switches Transformers Branch circuit protection Disconnects Control panels All general-purpose circuits |
Body Material | PolyTube |
Brand Name | Mersen |
Class | Class RK1 |
Connection | Ferrule |
Connection Material | Tin-Plated Copper |
Connection Type | Ferrule |
Current Rating | 2.8A |
Interrupt Rating | 200 kA |
Mounting | Clip |
Series | Amp-Trap 2000 |
Size | 5 x 0.81;127 x 20.574 in;mm |
Size | 5 x 0.81 in |
Size | 127 x 20.574 mm |
Special Features | Non-indicating or Solid state SmartSpot visual blown fuse indicator Time-delay for motor starting and transformer inrush currents without nuisance opening 600VAC & 600VDC dual rated 300kA interrupting rating - self-certified, UL witnessed tests Extremely current-limiting for low peak let-thru current Recommended for Arc Flash energy reduction Easy 2-to-1 selectivity for prevention of nuisance shut downs and “black outs” Rejection-style design prevents replacement errors (when used with recommended fuse blocks) High-visibility orange label gives instant brand recognition Reduced inventory by taking the place of class RK5, K, and H fuses Metal-embossed date and catalog number for easier traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings |
Standard | UL listed to standard 248-12 File E2137 DC listed to UL standard 248 CSA certified to standard C22.2 No. 248.12 |
Sub Brand | Amp-Trap 2000® |
Type | Class RK1 |
Voltage Rating | 600 VAC |
Package Dimensions (L x W x H) | 5 in x 0.81 in x 0.81 in |
Package Dimensions (L x W x H) | 127 mm x 20.574 mm x 20.574 mm |
Package Weight (Imperial) | 0.146 lb |
Package Weight (Metric) | 0.066 kg |
GPM-SRR90
Fuse Block 600VAC 600VDC Class CC 30A 1/4in Quick Connect / Solder 90 angle screw Knob Panel Mount
C331156
Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 14x51 1-Pole Visual Indicator Microswitch Pressure Plate IP20
LCC5
POWR-JAW clamps improve the contact between fuse and clip. The unnecessary heat from poor contact due to the loss of spring force in the clips can cause nuisance fuse opening and premature aging of surrounding components. High temperature phenolic resin knob designed for the most severe environments 7 sizes to provide effective coverage. Simple design makes installation easy.
Frequently Asked Questions
What is the interrupting rating of the Mersen A6D-R fuse?
The Mersen A6D-R fuse has a 300kA interrupting rating, which is self-certified and UL witnessed.
What type of protection does the A6D-R fuse provide?
The A6D-R fuse provides IEC Type 2 "no damage" protection for mains, feeders, and branch circuits.
What is the voltage rating for this Mersen fuse?
This Mersen A6D-R fuse is dual-rated for 600VAC and 600VDC.
What applications is the A6D-R fuse recommended for?
The A6D-R fuse is recommended for motor starters, safety switches, transformers, and general-purpose circuits.
Does the A6D-R fuse prevent nuisance tripping?
Yes, its time-delay characteristics are designed to handle harmless inrush currents without nuisance tripping.
What is the purpose of the rejection-style design?
The rejection-style design prevents improper fuse replacements when used with recommended fuse blocks.
What is the material of the fuse body?
The fuse body is made of fiberglass, providing dimensional stability in industrial settings.
Are there any approvals for the A6D-R fuse?
Yes, the A6D-R fuse is UL listed to standard 248-12 (File E2137) and CSA certified to standard C22.2 No. 248.12.
