Contact for Pricing

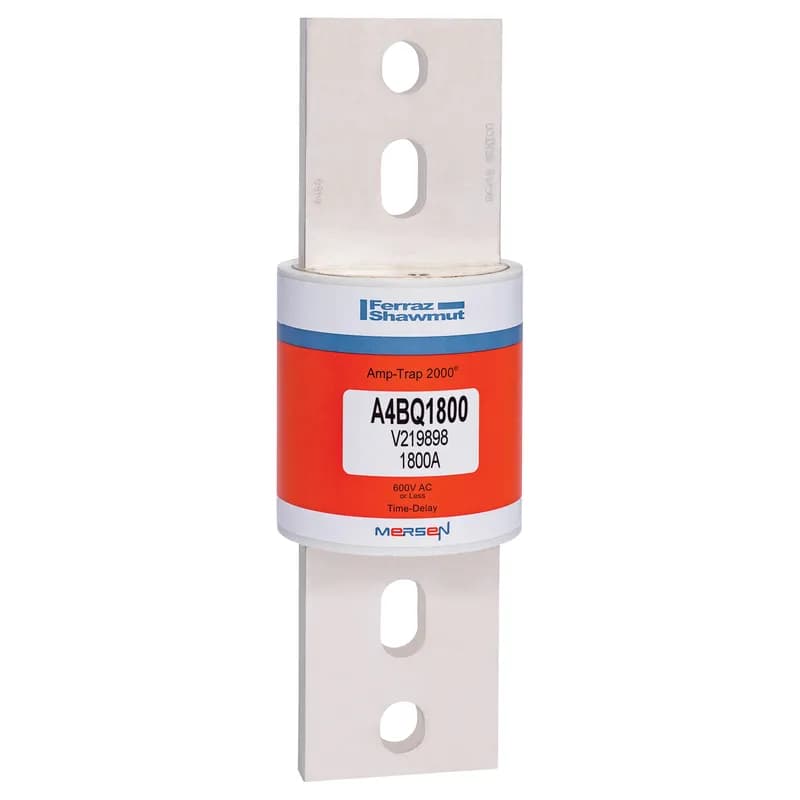

Overview
- 20% lower let-thru current vs. standard Class L fuses
- 4-second time-delay at 500% rated current for inrush handling
- 300kA interrupting rating (self-certified, UL witnessed)
- Rejection-style design prevents incorrect replacements
- Pure silver links for minimal let-thru current and extended life
Specifications
AC Voltage Rating | 600 V |
Amperage Rating | 1800 A |
Application | Mains Feeders Large motors Lighting, heating & general loads Circuit breaker back-up DC rated: UPS DC links, battery disconnects, other DC applications |
Body Material | GMG |
Brand Name | Mersen |
Class | Class L |
Connection | Blade |
Connection Material | Silver-Plated Copper |
DC Voltage Rating | 500 V |
Fuse Class | L |
Interrupt Rating | 200 kA |
Mounting | Bolted |
Size | 10.75 x 3.5 in |
Size | 273.05 x 88.9 mm |
Special Features | Fastest operation under short circuit conditions: Let-thru currents are typically 20 percent lower, with a corresponding let-thru energy (clearing I2t) up to 40 lower than the next fastest Class L fuse Time-delay for high inrush loads such as motors and transformers, without nuisance opening 300kA interrupting rating - self-certified, UL witnessed tests Most current-limiting for lowest peak let-thru current even at fault currents up to 300kA Recommended for Arc Flash energy reduction Pure silver links ensure lowest let-thru current and longer fuse life Easy 2-to-1 selectivity for prevention of nuisance shutdowns and “blackouts” Rejection-style design prevents replacement errors High-visibility orange label gives instant brand recognition Reduced inventory because A4BQ can replace all older types of Class L fuses now in-service Metal-embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching Optional mechanical TA indicator (100-6000A). Please contact factory for special trigger actuator |
Standard | A4BQ (100-6000) UL listed to standard 248-10 File E2137 DC listed to UL standard 248 (100-2000A) CSA certified to standard C22.2 No. 248.10 (601-6000A) A4BQ (100-6000) - TA UL listed |
Sub Brand | Amp-Trap 2000® |
Type | Class L |
Type Of Indicators | TA Indicator |
Voltage Rating | 600 VAC |
Package Dimensions (L x W x H) | 10.75 in x 3.5 in x 3.5 in |
Package Dimensions (L x W x H) | 273.05 mm x 88.9 mm x 88.9 mm |
Package Weight (Imperial) | 8.950 lb |
Package Weight (Metric) | 4.060 kg |
