Littelfuse 0MIN020.VXGLO - SMARTGLOW MINI BLADE BOX 20A. The MINI® Fuse is quickly becoming the new standard for vehicle circuit protection throughout the world. Its miniature design, patented by Littelfuse, meets the need for more circuits to be protected while utilizing less space, and its ability to cope with high temperatures in adverse environments makes the MINI® Fuse the recommended choice for protection.
Littelfuse

0MIN020.VXGLO

UPC: 079458150179

Documents & Media
Brochure

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The **Littelfuse SMARTGLOW MINI Blade Fuse 20A (SKU: 0MIN020.VXGLO)** sets the industry standard for high-performance automotive circuit protection, combining patented miniature design with advanced thermal resilience and visual diagnostics. Engineered by Littelfuse—the global leader in circuit protection solutions—the MINI Blade Fuse delivers unmatched reliability in modern vehicle electrical systems, where space constraints and extreme operating conditions demand precision-engineered components. **Why Choose the Littelfuse MINI Blade Fuse?** Automotive electrical systems are evolving rapidly, with increasing circuit densities and higher power demands. The **MINI Blade Fuse** addresses these challenges by offering a compact, space-efficient solution that maximizes circuit protection without compromising performance. Its **patented miniature design** allows for more fuses to be installed in limited spaces—critical for today’s densely packed vehicle architectures, including electric vehicles (EVs), hybrid systems, and advanced driver-assistance systems (ADAS). Unlike traditional blade fuses, the MINI series is optimized for **high-temperature environments**, ensuring consistent operation in under-hood applications where ambient temperatures can exceed 125°C. **Key Features & Benefits:** - **Patented Miniature Design**: Littelfuse’s proprietary MINI format enables higher circuit density, reducing panel space requirements by up to **40%** compared to standard blade fuses. This is particularly valuable in OEM applications where weight and size reduction are priorities. - **Exceptional Thermal Resilience**: Built to withstand extreme heat, the MINI Blade Fuse maintains stable performance in adverse environments, including engine compartments and high-load circuits. Its materials are selected for long-term durability, reducing the risk of nuisance failures. - **SMARTGLOW Visual Indication**: The innovative **SMARTGLOW feature** provides an immediate, at-a-glance status check—glowing red when the fuse is blown. This eliminates the need for manual inspection or multimeter testing, accelerating diagnostics and reducing vehicle downtime in repair shops and fleet maintenance. - **Reliable Overcurrent Protection**: As a **20A-rated fuse**, the 0MIN020.VXGLO is engineered to interrupt fault currents safely, protecting sensitive electronics and wiring harnesses from damage due to short circuits or overloads. Its fast-acting response ensures compliance with automotive safety standards, including ISO 8820 and SAE J1284. - **Versatile Applications**: Ideal for a wide range of automotive systems, including: - **Powertrain & Engine Control**: Protecting critical sensors, ECUs, and actuators in gasoline, diesel, and hybrid powertrains. - **Body & Comfort Electronics**: Safeguarding circuits for lighting, infotainment, power windows, and HVAC systems. - **Electric & Hybrid Vehicles**: Supporting high-voltage auxiliary systems and battery management circuits. - **Aftermarket & Performance Upgrades**: A trusted choice for custom wiring harnesses, audio systems, and off-road vehicle modifications. **Industry Trust & Compliance:** Littelfuse is a **recognized authority in circuit protection**, with over a century of innovation in automotive and industrial applications. The MINI Blade Fuse series is **widely adopted by OEMs worldwide**, including major automotive manufacturers who prioritize reliability and safety. Its compliance with **UNSPSC 39121622** and adherence to international standards (e.g., UL, IEC) make it a preferred choice for engineers and technicians designing or servicing modern vehicles. **Installation & Maintenance:** Designed for **tool-less installation**, the MINI Blade Fuse snaps securely into compatible fuse blocks, ensuring a stable connection even in high-vibration environments. The **SMARTGLOW feature** simplifies maintenance by instantly identifying blown fuses, reducing diagnostic time and improving fleet uptime. For professionals, this translates to **lower labor costs** and **faster turnaround** in repair facilities. **Why Littelfuse?** Choosing the right circuit protection isn’t just about specifications—it’s about **trust in performance**. Littelfuse’s global manufacturing footprint, rigorous quality control, and commitment to innovation ensure that every MINI Blade Fuse meets the demands of real-world automotive applications. Whether you’re an OEM engineer optimizing a new vehicle platform or a technician servicing a customer’s car, the **Littelfuse SMARTGLOW MINI Blade Fuse 20A** delivers the reliability, efficiency, and peace of mind you need. Upgrade your vehicle’s electrical safety today with the industry’s most advanced miniature fuse technology.
  • Patented miniature design for 40% space savings vs. standard blade fuses
  • Exceptional thermal resilience for high-temperature automotive environments
  • SMARTGLOW visual indication for quick, at-a-glance fuse status checks
  • 20A rating for reliable overcurrent protection in critical vehicle circuits
  • Widely adopted by OEMs and trusted for aftermarket & performance applications

Specifications

Amperage Rating
20 A
Application
Automotive
Brand Name
Littelfuse
Color
Blue
Connection Type
Blade connector
Current Rating
20 A
Material
Poly
Mounting Type
Snap-in fuse block
Series
MINI Blade Fuse Series
Size
Miniature Blade
Special Features
Indicator light that glows when the fuse is blown
Sub Brand
MAXI Smart Glo
Type
Blade Fuse

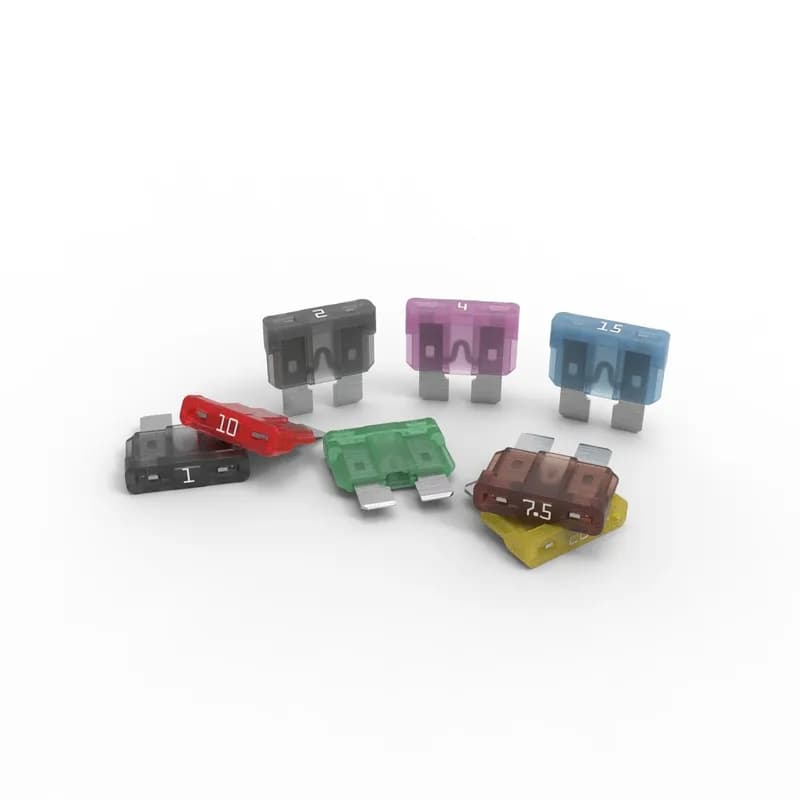

ATOF® automotive blade fuses were developed to take the place of obsolete ATO Series 257 fuses. Automakers consider ATOF fuses standard equipment for protecting low-voltage circuits.
