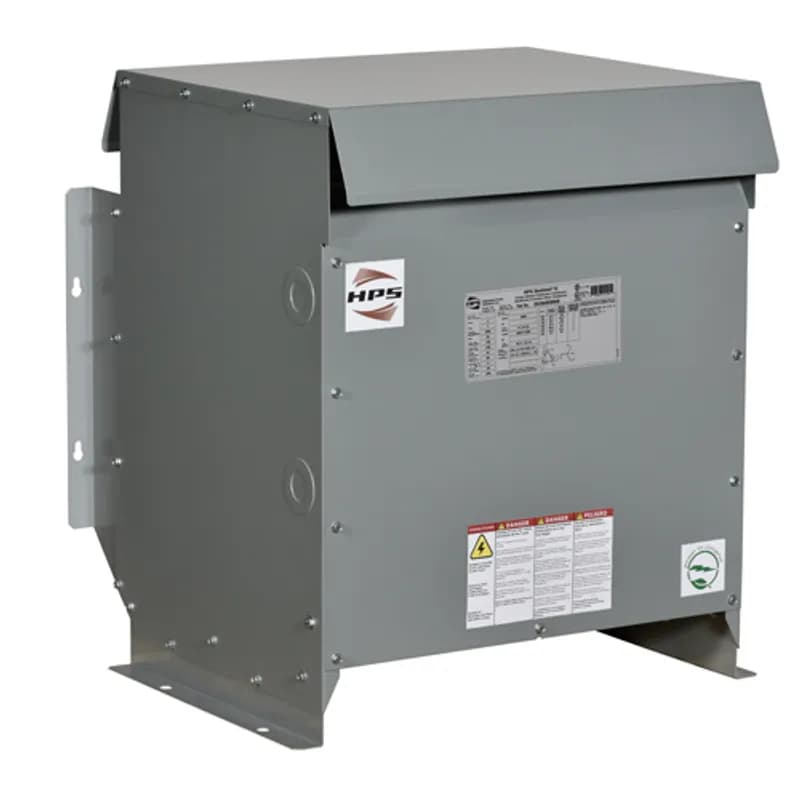

Overview
- HPS general purpose distribution transformers are rated for 600 volts and below.
- Meets North American Efficiency Standards: U.S. - DOE 10 CFR Part 431 (DOE 2016); Canada - SOR/2018-201, (NRCan 2019) & ON Reg. 404/12; Mexico - NMX-J-351-1-ANCE-2021
- HPS also offers a line of low voltage Smart Transformers with integrated power monitoring for enhanced energy management and real-time performance insights.
- 60 Hz Operation with Screw Terminal Connections
- Blue Enclosure, US Manufactured
Specifications
Application | General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. |
Cable Entry | Knock Outs |
Color | Blue |
Connection Type | D (Delta) / Y (Wye) |
Connection Type | Wye (Y) |
Connection Type | Screw Terminal |
Cooling | Convection cooled |
Enclosure | Contact HPS |
Enclosure Color | ANSI 61 Grey, UL 50 |
Enclosure Type | Type 3R |
Frequency | 60 Hz |
Frequency Rating | 60 HZ |
Height | 21.88 in |
Height | 555.752 mm |
Impedance | Typically 1.8% to 7.5% |
Insulation Class | 220°C |
KVA Rating | 15 KVA |
Length | 20.12 in |
Length | 511.048 mm |
Length | Contact HPS in |
Material | Aluminum |
Mounting | Floor or Wall/Ceiling Mount |
Mounting Method | Wall/Floor |
Number Of Phases | 3 |
Number Of Taps | ST-20 compliant |
Phase | 3PH Delta-Wye-N |
Phase | 3PH |
Poles | 3PH |
Primary Voltage | 208 V |
Primary Voltage | 208D V |
Secondary Voltage | 380Y/220V w taps at 400Y, 416Y and 430Y V |
Series | SG3A |
Size | 15 kVA |
Sound Level dBA | Meets NEMA ST-20 standards |
Special Features | Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. |
Standard | CSA, UL |
Temperature Rating | Typical 30 Average/ 40 Maximum Deg C |
Temperature Rise | 150°C |
Termination | Mechanical Lugs |
Transformer Rating | 416 |
Type | Transformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Three Phase |
Voltage Rating | 208D PV, 380Y/220 V with taps at 400Y, 416Y, 430Y |
Voltage Rating | 208D PV to 380Y/220V w taps at 400Y, 416Y and 430Y SV |
Voltage Rating | 208D PV / 380Y/220V |
Wall Mounting | Yes |
Warranty | 10 year warranty |
Width | 21.5 in |
Width | 546.1 mm |
Width | Contact HPS |
Winding | Aluminum |
Package Dimensions (L x W x H) | 20.12 IN x 21.5 IN x 21.88 IN |
Package Dimensions (L x W x H) | 512 mm x 547 mm x 556 mm |
Package Weight (Imperial) | 215.000 L |
Package Weight (Metric) | 98.000 kg |
