Contact for Pricing
Overview

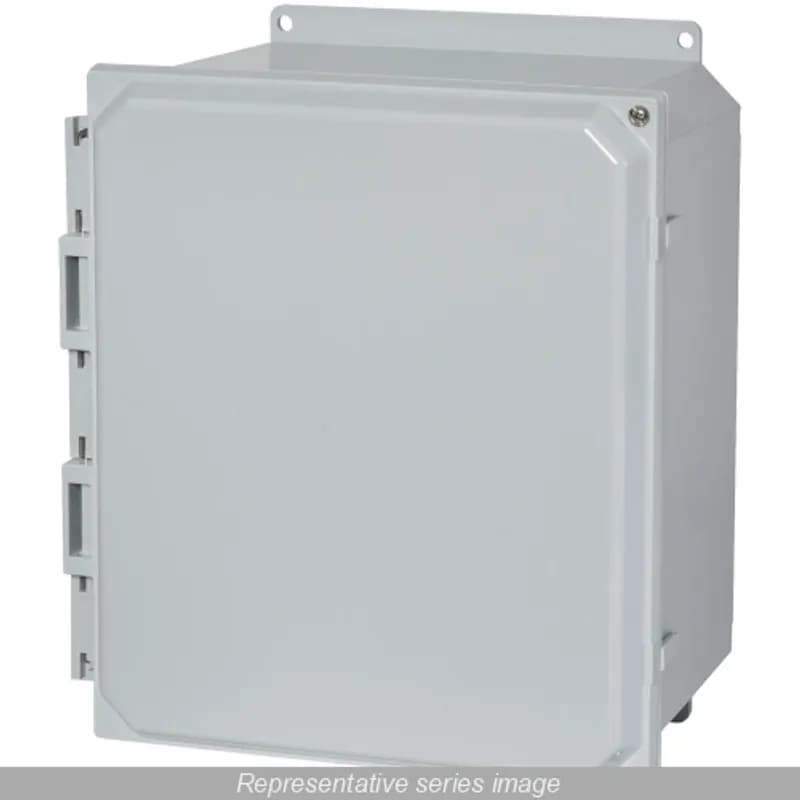

- 9.93 x 8.15 x 3.98 inch polycarbonate enclosure
- Secure latch mechanism for easy access
- Integrated feet with 10.75 x 6.91 inch mounting centers
- Compatible with optional steel inner panel PCJR0907
- Solid cover design for environmental protection
Specifications
Application | Designed to insulate and protect controls and components in both indoor and outdoor conditions Ideal for industrial pump controls, waste water, irrigation control along with solar/wind and chemical plants |
Brand Name | Hammond Mfg. |
Color | Gray |
Cubic Capacity | 320 in3 |
Ip Rating | IP66/IP67 |
Material | Polycarbonate |
Material | Polycarbonate Plastic |
Material Quality | Polycarbonate Plastic |
Mounting | Wall |
Mounting Type | Feet Mount |
Mounting Type | Feet |
NEMA Rating | 4;4x |
Nema Rating | Type 4X |
NEMA Rating | type-13, type-4x |
Series | PCJ Series |
Series | PCJ |
Size | 10x8x4 inches |
Size | 10x8x4 in |
Size | 10x8x4 inch |
Size | 10 in x 8 in x 4 in |
Special Features | Injection moulded polycarbonate thermoplastic enclosure with matching cover is easily punched, cut, or drilled Enhanced UV inhibitors protect against outdoor weathering Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included Stainless steel 316 screw fasteners Door fasteners include a provision for padlocking on Snap Latches Enclosure available with clear Polycarbonate cover Molded hinge with 316 stainless steel pin Captive oil resistant gasket provides a positive seal Available with Polycarbonate flange or foot mount brackets for multi-directional mounting Operating temperatures between 130C and - 35 C (266F to - 31 F) Impact index of 16 J (12 ft/lb) For corrosion resistance information, please refer to table in the Technical Information section |
Standard | ccsaus, ce, culus |
Sub Brand | PCJ Series |
Type | Type 4X Polycarbonate Junction Box (Solid and Clear Cover) |
Package Dimensions (L x W x H) | 4.4 IN x 8.8 IN x 11 IN |
Package Dimensions (L x W x H) | 11.176 cm x 22.352 cm x 27.94 cm |
Package Weight (Imperial) | 5.000 L |
Package Weight (Metric) | 2.268 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
Frequently Asked Questions
Does the PCJ1084NL include mounting feet?
Yes, the enclosure features integrated feet with mounting centers at 10.75 x 6.91 inches.
What is the part number for the clear cover version?
The clear cover version is designated as PCJ1084CCNL.
What are the dimensions of the PCJ1084NL enclosure?
The Hammond PCJ1084NL measures 9.93 inches in height, 8.15 inches in width, and 3.98 inches in depth.
Is there an optional inner panel for the PCJ1084NL?
Yes, the PCJR0907 steel inner panel (8.75 x 6.88 inches) is available for component mounting.
What material is the PCJ1084NL enclosure made from?
The enclosure is constructed from durable polycarbonate for impact and environmental resistance.
What is the panel mounting area inside the PCJ1084NL?
The internal panel mounting area measures 8.75 inches in height and 6.88 inches in width.
Can the PCJ1084NL be used outdoors?
The polycarbonate construction provides protection against dust and moisture, making it suitable for outdoor use.
