ABB - Low Voltage Drives
ACS880-37-3310A-7+B054+C129+H359
Alternate Item Number: 3AUA0000185726
UPC: 662348069233
Documents & Media
Contact for Pricing
Overview

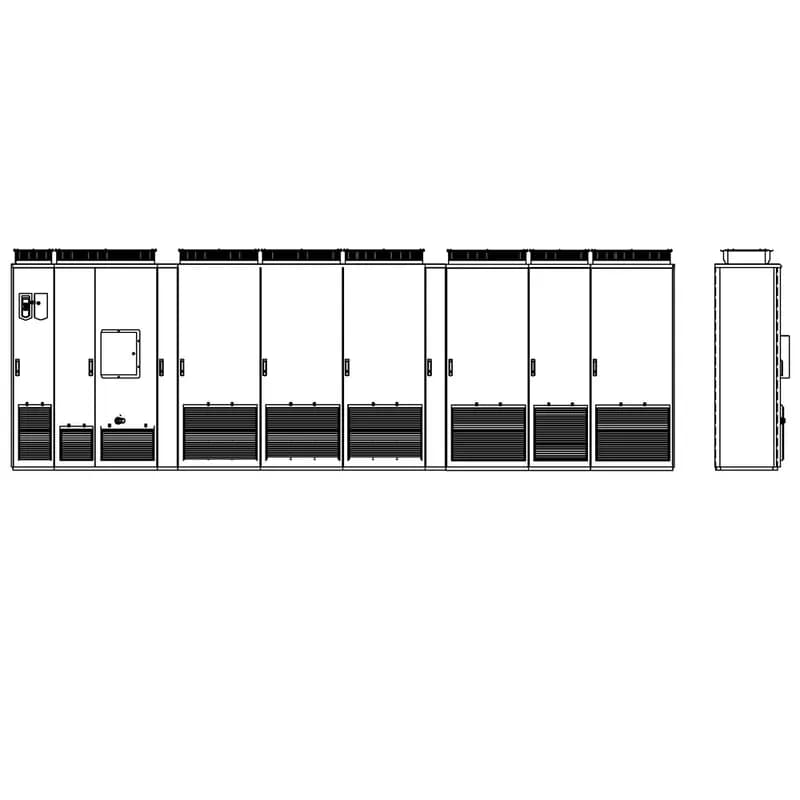

The ABB ACS880-37-3310A-7+B054+C129+H359 is a robust AC drive designed for high-power industrial applications. This Type 1 cabinet-mounted unit delivers 3300 horsepower (3178A) and operates with an input voltage range of 3-525-690V. It features built-in harmonic mitigation to enhance power quality and reduce electrical interference, crucial for demanding industrial environments. The drive is constructed with UL-approved components, ensuring reliability and compliance. It supports common motor terminal configurations and includes Assistant Bluetooth connectivity for streamlined setup and diagnostics. With substantial dimensions of 84.45 x 253.15 x 28.11 inches and a 1.1 overload capacity, the ACS880 is engineered for continuous operation in heavy-duty applications such as large pumps, fans, compressors, and conveyors. Its modular design facilitates flexible installation and simplifies maintenance procedures, minimizing downtime in industrial facilities. The ABB ACS880 series provides precise motor control and energy efficiency for critical industrial processes.
- 3300 HP (3178A) output for high-power industrial needs
- Type 1 cabinet-mounted drive for protected installation
- Input voltage range: 3-525-690V
- Built-in harmonic mitigation for improved power quality
- Assistant Bluetooth connectivity for simplified diagnostics
Specifications
Amerage | 3178 A |
Connection Type | Common motor terminal cubicle |
Control Panel | Assistant Bluetooth |
Current Rating | 3178A |
Current Rating | 3178 A |
Enclosure UL Type | 1 |
Frame Size | 6xR8i+6xR8i |
Height | 84.45 in |
Horsepower | 3300 HP |
Input Phase | 3-Phase |
IP Rating | IP42 |
Ip Rating | Type 1 |
Length | 28.11 in |
Mounting | Cabinet |
Mounting Type | Cabinet |
NEMA Rating | Type 1 |
Options | UL approved components, Common motor terminal cubicle |
Output Current | 3178 A |
Output Phase | 3-Phase |
Phases | 3-Phase A |
Series | ACS880 |
Size | 84.45x253.15x28.11 in |
UL Type | 1 |
Voltage | 600 V |
Voltage Range | 525-690 V |
Voltage Rating | 600 VAC |
Voltage Rating | 525-690 VAC |
Voltage Rating | 3-525-690V |
Weight | 12060 lb |
Width | 253.15 in |
Package Dimensions (L x W x H) | 28.11 IN x 253.15 IN x 84.45 IN |
Package Dimensions (L x W x H) | 71.3994 cm x 643.001 cm x 214.503 cm |
Package Weight (Imperial) | 12060.000 L |
Package Weight (Metric) | 5470.416 kg |
FENA-21
The FENA 21 DualPort module supports Three protocols Modbus-TCP, EtherNet/IP, and the PROFInet IO RT network. The Modbus-TCP protocol is simply the Modbus protocol used on top of Ethernet-TCP/IP. Modbus-TCP is an open Industrial Ethernet network which has been specified by the Modbus-IDA User Organization. EtherNet/IP is based on the Common Industrial Protocol (CIP), which is also the framework for both the ControlNet and DeviceNet network protocols. PROFInet IO RT is an open network based on the PI Organization standard.
