ABB - Low Voltage Drives
ACS880-31-027A-5+J425+K490+K491
Alternate Item Number: 3AXD50000862450
Contact for Pricing
Overview

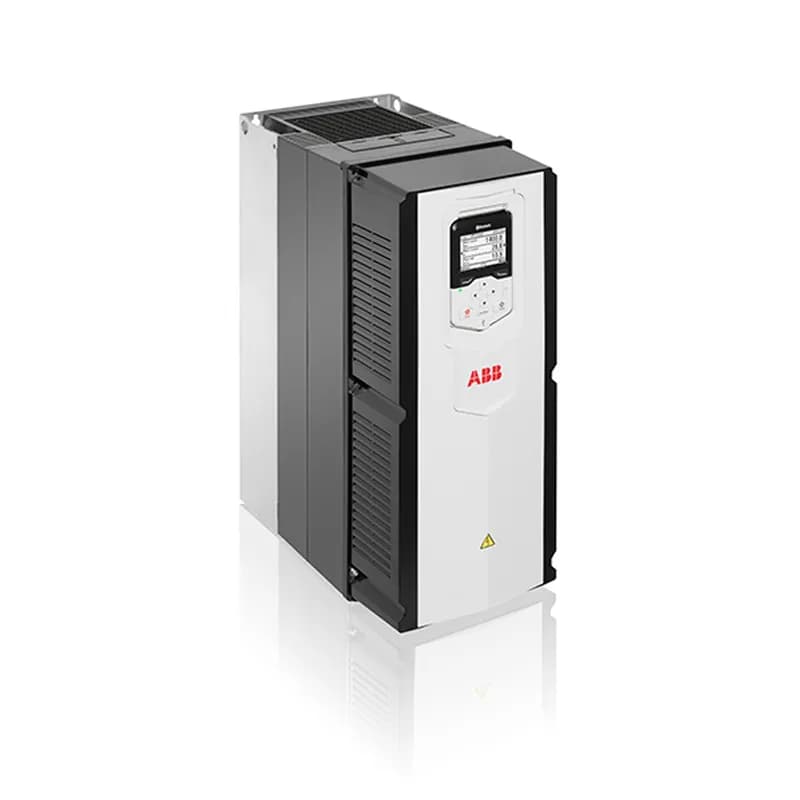

The ABB ACS880-31-027A-5+J425+K490+K491 is a versatile AC drive from ABB's Low Voltage Drives division, engineered for robust industrial automation. This unit boasts a 20HP power rating and a continuous current capacity of 27A, operating efficiently within a broad voltage range of 380-500 VAC. Its compact dimensions, measuring 30.35x9.92x15.04 inches, and Type 1 NEMA enclosure make it suitable for wall-mounting installations, optimizing space in control cabinets and industrial environments. Connectivity is a key feature, with integrated Ethernet/IP and Modbus/TCP communication protocols, facilitating seamless integration into modern SCADA and PLC systems. The drive is configured for FB adapter 2, enhancing its control capabilities. It also includes harmonic mitigation features, contributing to improved power quality and reduced energy consumption. The 1.1 overload capacity ensures reliable operation under transient load conditions. This specific configuration, SKU ACS880-31-027A-5+J425+K490+K491, is designed for applications requiring precise motor control, energy efficiency, and dependable performance in various industrial sectors. Manufactured in Denmark, this drive represents ABB's commitment to quality and innovation in variable speed drive technology.
- 20HP Power Rating
- 27A Current Rating
- 380-500 VAC Voltage Range
- Type 1 NEMA Enclosure
- Ethernet/IP and Modbus/TCP Communication
Specifications
Amerage | 27 A |
Connection Type | Ethernet/IP, Modbus/TCP |
Control Panel | Assistant Industrial |
Current Rating | 27 A |
Enclosure Construction (IP rating) | IP21 |
Enclosure Construction (UL Type) | 1 |
Enclosure UL Type | 1 |
Frame Size | R6 |
Frequency | 50/60 Hz |
Frequency | 50 Hz |
Height | 30.35 in |
Horsepower | 20 HP |
Horsepower 10% & 50% Overload/ 1 min | 20 HP |
Input Phase | 3-Phase |
IP Rating | IP21 |
Length | 15.04 in |
Mounting | ULH Wall |
Mounting Type | ULH Wall Mount |
Mounting Type | ULH Wall |
NEMA Rating | Type 1 |
Number of Phases Input | 3 |
Number of Phases Output | 3 |
Options | Ethernet/IP, configured for FB adapter 2, Modbus/TCP, configured for FB adapter 2 |
Output Current | 27 A |
Output Current 10% & 50% Overload/ 1 min | 27 A |
Output Phase | 3-Phase |
Phases | 3-Phase A |
Series | ACS880 |
Size | 30.35x9.92x15.04 in |
Type | ACS880 Drive |
UL Enclosure Construction | 1 |
UL Type | 1 |
Voltage | 480 V |
Voltage Range | 380-500 V |
Voltage Rating | 480 VAC |
Voltage Rating | 380-500 VAC |
Voltage Rating | 3-380-500 VAC |
Voltage Rating | 3-380-500 V |
Weight | 162 lb |
Width | 9.92 in |
Package Dimensions (L x W x H) | 15.04 IN x 9.92 IN x 30.35 IN |
Package Dimensions (L x W x H) | 38.2016 cm x 25.1968 cm x 77.089 cm |
Package Weight (Imperial) | 162.000 L |
Package Weight (Metric) | 73.483 kg |
FENA-21
The FENA 21 DualPort module supports Three protocols Modbus-TCP, EtherNet/IP, and the PROFInet IO RT network. The Modbus-TCP protocol is simply the Modbus protocol used on top of Ethernet-TCP/IP. Modbus-TCP is an open Industrial Ethernet network which has been specified by the Modbus-IDA User Organization. EtherNet/IP is based on the Common Industrial Protocol (CIP), which is also the framework for both the ControlNet and DeviceNet network protocols. PROFInet IO RT is an open network based on the PI Organization standard.
