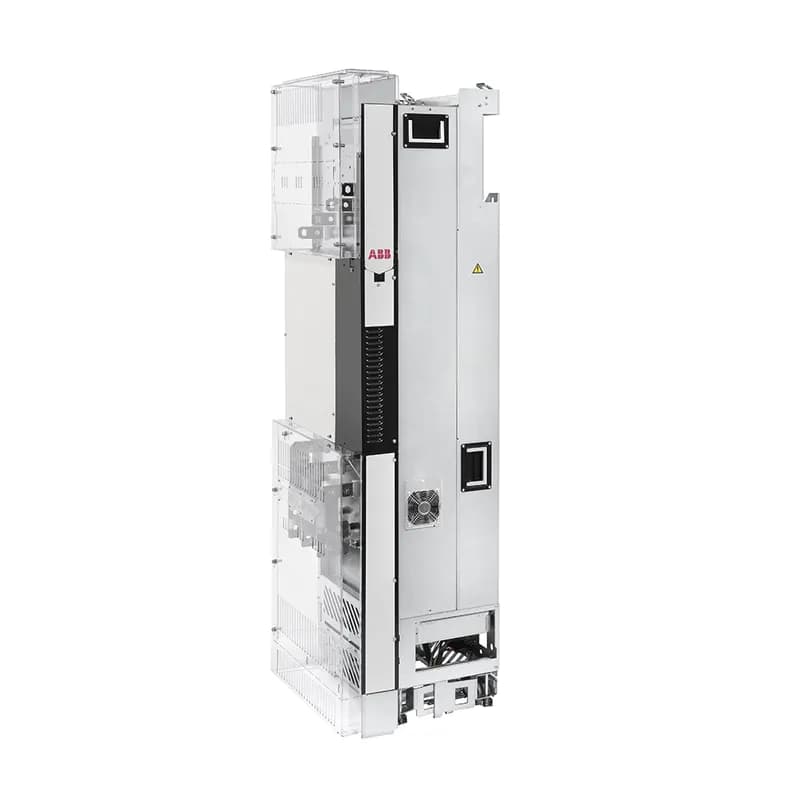

ABB - Low Voltage Drives
ACS880-14-503A-5+H370+J410+K475+L517
Alternate Item Number: 3AXD50000611461
Contact for Pricing
Overview
The ABB ACS880-14-503A-5 AC Drive is a high-performance industrial drive designed for demanding applications requiring reliability and precision. With a power rating of 400HP and a current capacity of 483A, this drive operates efficiently across a voltage range of 3-380-500V. Featuring an IP20 enclosure, it is suitable for open-frame installations while ensuring protection against dust and debris. The drive includes advanced communication protocols such as Ethernet/IP, Modbus/TCP, and PROFINET, enabling seamless integration into modern automation systems. Additionally, the Assistant Bluetooth feature allows for easy configuration and monitoring via mobile devices. The ACS880 series is known for its robust performance, 1.1 overload capability, and high energy efficiency, making it ideal for industrial machinery, pumps, conveyors, and other heavy-duty applications. Its compact yet durable design, measuring 68.54 x 28.07 x 20.16 inches, ensures flexibility in installation. Equipped with a ULH module and a control panel mounting platform, this drive is engineered for optimal performance and ease of use in industrial environments.
- High-performance AC drive with 400HP and 483A current capacity
- Operates on 3-380-500V input voltage with 1.1 overload capability
- IP20 enclosure for open-frame installations with dust protection
- Advanced communication protocols: Ethernet/IP, Modbus/TCP, PROFINET
- Assistant Bluetooth for easy configuration and remote monitoring
Specifications
Control Panel | Assistant Bluetooth |
Frame Size | R11 |
Input Phase | 3-Phase |
IP Rating | IP21 |
Options | Cable size 1 Control panel mounting platform 1 High performance 2-port Ethernet Ethernet/IP Modbus/TCP PROFINET TTL pulse encoder |
Output Current | 483 |
Output Phase | 3-Phase |
UL Type | 1 |
Voltage | 480 |
Voltage Range | 380-500 |
Package Dimensions (L x W x H) | 20.16 in x 28.07 in x 68.54 in |
Package Dimensions (L x W x H) | 51.2064 cm x 71.2978 cm x 174.0916 cm |
Package Weight (Imperial) | 810.800 L |
Package Weight (Metric) | 367.779 kg |
FENA-21
The FENA 21 DualPort module supports Three protocols Modbus-TCP, EtherNet/IP, and the PROFInet IO RT network. The Modbus-TCP protocol is simply the Modbus protocol used on top of Ethernet-TCP/IP. Modbus-TCP is an open Industrial Ethernet network which has been specified by the Modbus-IDA User Organization. EtherNet/IP is based on the Common Industrial Protocol (CIP), which is also the framework for both the ControlNet and DeviceNet network protocols. PROFInet IO RT is an open network based on the PI Organization standard.
