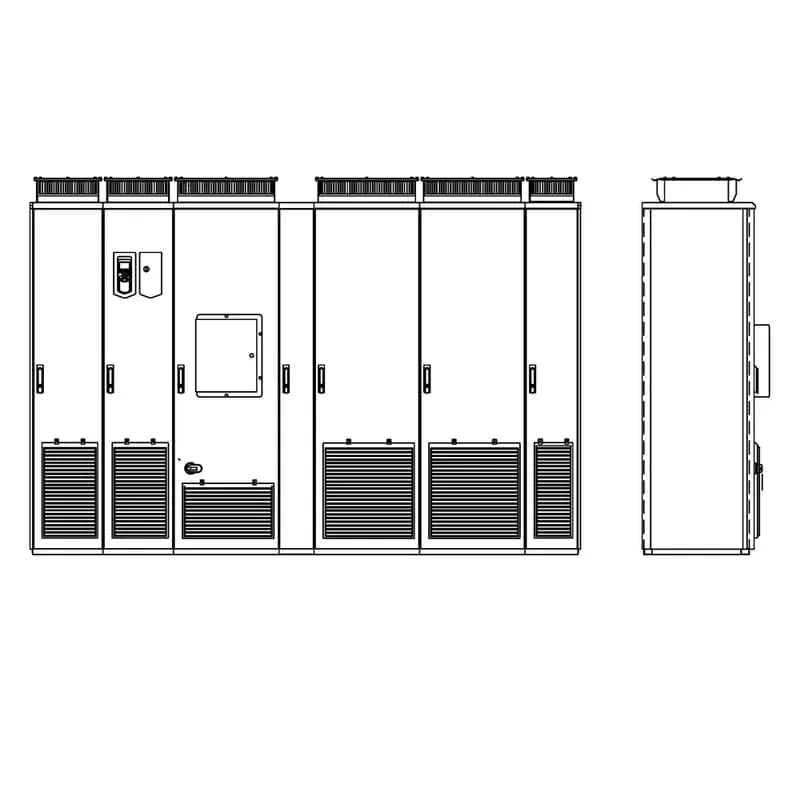

ABB - Low Voltage Drives ACS880-07-1320A-5+C129+C199+F255+H359 - CABINET DRIVE, Product Family: ACS880, Horsepower: 1100 HP, Output Current: 1267 A, Voltage: 480 VAC, Voltage Range: 380-500V, UL TYPE 1 (IP22), Floor-mounted, Local or Remote Mounted LCD Display and Keypad, Air Circuit Breaker, Common Motor Terminal Cubicle, Empty Cabinet left side 400mm, 3-Phase Input, 3-Phase Output, Frame: 2xD8T+2xR8i, Product HxWxD: 84.5 in x 107.5 in x 28.1 in, Product Weight: 5020 lbs
ABB - Low Voltage Drives

ACS880-07-1320A-5+C129+C199+F255+H359

Alternate Item Number: 3AUA0000191389

UPC: 662348067710

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The ABB ACS880-07-1320A-5 Cabinet Drive is a high-performance industrial drive designed for demanding applications requiring reliable power and precision control. With a robust 1100 HP rating and 1267A output current, this drive operates at 480VAC with a voltage range of 380-500V, ensuring compatibility with a wide range of industrial systems. The UL TYPE 1 (IP22) enclosure provides protection against dust and debris, making it ideal for harsh environments. Featuring a floor-mounted design with a local or remote LCD display and keypad, this drive offers flexible operation and monitoring. The air circuit breaker ensures safe and efficient power management, while the common motor terminal cubicle simplifies installation. With dimensions of 84.5" x 107.5" x 28.1" and a weight of 5020 lbs, this drive is built for heavy-duty industrial applications. The ABB ACS880 series is renowned for its energy efficiency, reliability, and advanced control features, making it a top choice for industries requiring precise motor control and durability.
  • High-performance 1100 HP cabinet drive with 1267A output current
  • Operates at 480VAC with a voltage range of 380-500V for versatile applications
  • UL TYPE 1 (IP22) enclosure for protection against dust and debris
  • Floor-mounted design with local or remote LCD display and keypad for flexible operation
  • Air circuit breaker ensures safe and efficient power management

Specifications

Package Dimensions (L x W x H)
140 IN x 38 IN x 94 IN
Package Dimensions (L x W x H)
355.6 cm x 96.52 cm x 238.76 cm
