ABB - Low Voltage Drives
ACS880-07-0715A-5+C130+G328+K473
Alternate Item Number: 3AUA0000182176
UPC: 662348067413
Documents & Media
Contact for Pricing
Overview

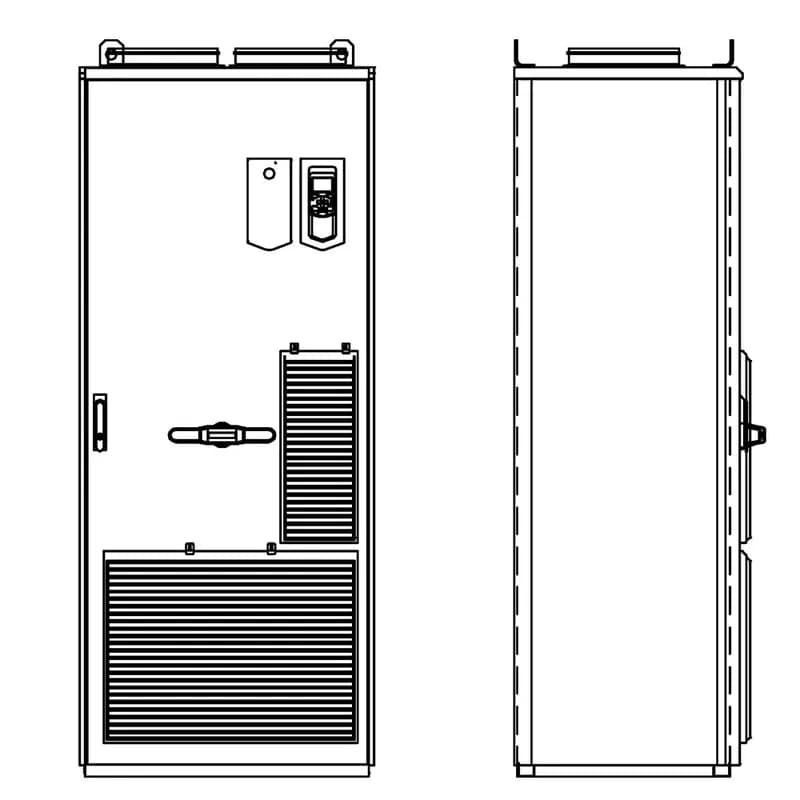

The ABB ACS880-07-0715A-5+C130+G328+K473 is a floor-mounted cabinet drive designed for heavy-duty industrial applications. Rated at 600 HP with a 705 A output current, it supports 3-phase input/output systems within a 380-500 VAC range. The drive features a UL Type 1 (IP22) enclosure, providing basic protection against solid objects and dripping water, making it suitable for harsh environments.
Key specifications include a 480 VAC nominal voltage, 3-phase input/output compatibility, and an R11 frame size. The device measures 84.5 in x 32.7 in x 27.5 in and weighs 1280 lbs, ensuring robust construction for industrial settings. It includes a local or remote LCD display and keypad for flexible control, along with an integrated Ethernet adapter supporting EtherNet/IP, Modbus TCP, and PROFINET protocols for seamless automation integration.
This ACS880 series drive is ideal for applications such as pumps, fans, conveyors, and other industrial machinery requiring precise motor control and energy efficiency. Compatible with ABB’s ACS880 platform, it delivers reliable performance in demanding operational conditions.
- 600 HP (705 A) output for heavy-duty industrial applications
- 480 VAC (380-500 V range) 3-phase input/output compatibility
- UL Type 1 (IP22) enclosure for basic protection against solids and dripping water
- Local or remote LCD display and keypad for flexible control
- Ethernet adapter with EtherNet/IP, Modbus TCP, and PROFINET support
Specifications
Connection Type | 3-phase |
Connection Type | 3-Phase Input/Output |
Current Rating | 705 A |
Frequency | 50/60 Hz |
Ip Rating | IP22 |
Mounting Type | Floor-mounted |
NEMA Rating | Type 1 |
Nema Rating | UL TYPE 1 |
Poles | 3-Phase |
Series | ACS880 |
Size | 84.5x32.7x27.5 in |
Size | 84.5 in x 32.7 in x 27.5 in |
Size | 84.5x32.7x27.5 in (HxWxD) |
Voltage Rating | 480 VAC |
FENA-21
The FENA 21 DualPort module supports Three protocols Modbus-TCP, EtherNet/IP, and the PROFInet IO RT network. The Modbus-TCP protocol is simply the Modbus protocol used on top of Ethernet-TCP/IP. Modbus-TCP is an open Industrial Ethernet network which has been specified by the Modbus-IDA User Organization. EtherNet/IP is based on the Common Industrial Protocol (CIP), which is also the framework for both the ControlNet and DeviceNet network protocols. PROFInet IO RT is an open network based on the PI Organization standard.
