ABB - Low Voltage Drives
ACS880-04F-715A-5+D150+H356+H370+K475
Alternate Item Number: 3AXD50000634545
Contact for Pricing
Overview

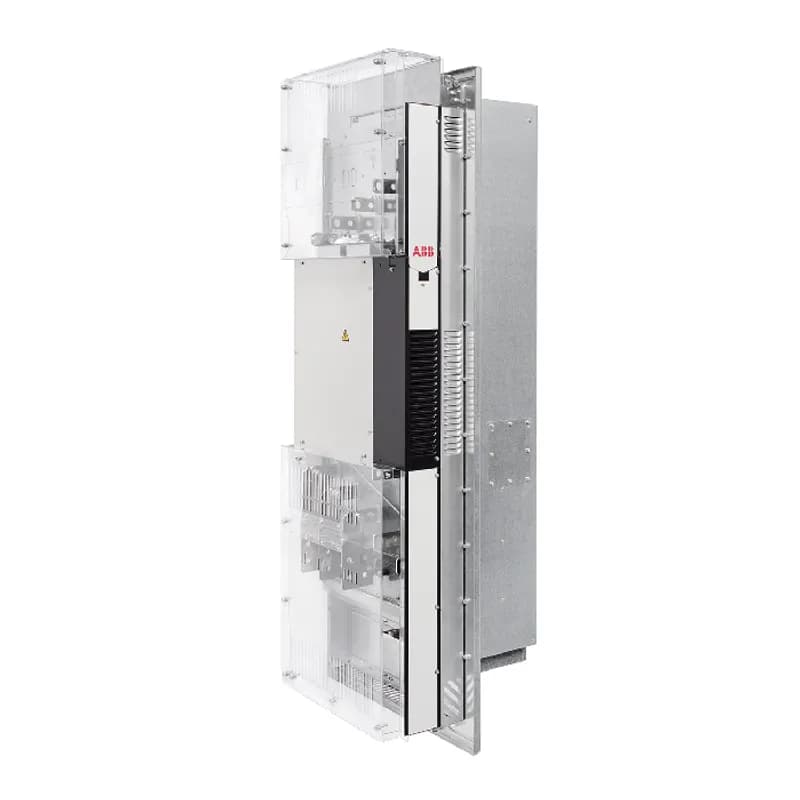

The ABB ACS880-04F-715A AC Drive is a high-performance industrial drive designed for demanding applications requiring precise control and reliability. With a voltage rating of 3-380-500V and a current rating of 705A, this drive delivers up to 600HP, making it ideal for heavy-duty industrial machinery. The IP20 enclosure ensures protection against dust and debris, while the flange module mounting provides secure and stable installation. Equipped with advanced communication protocols such as Ethernet/IP, Modbus/TCP, and PROFINET, this drive offers seamless integration with modern automation systems. The included Assistant Bluetooth feature simplifies setup and monitoring, enhancing operational efficiency. The ACS880 series is known for its high overload capacity (1.1), ensuring robust performance even under challenging conditions. With dimensions of 68.23 x 24.41 x 18.78 inches, this drive is designed for flexibility in industrial environments. The DC cable connection busbars and high-performance Ethernet capabilities make it a versatile solution for a wide range of industrial applications.
- High-performance AC drive with 3-380-500V voltage rating and 705A current capacity
- Delivers up to 600HP with 1.1 overload capability for demanding industrial applications
- IP20 enclosure for protection against dust and debris in industrial environments
- Advanced communication protocols: Ethernet/IP, Modbus/TCP, PROFINET for seamless integration
- Assistant Bluetooth for easy setup and monitoring, enhancing operational efficiency
Specifications
Control Panel | Assistant Bluetooth |
Frame Size | R11 |
Input Phase | 3-Phase |
IP Rating | IP21 |
Options | Braking chopper type 1 DC cable connection busbars Cable size 1 High performance 2-port Ethernet Ethernet/IP Modbus/TCP PROFINET |
Output Current | 705 |
Output Phase | 3-Phase |
UL Type | 1 |
Voltage | 480 |
Voltage Range | 380-500 |
Package Dimensions (L x W x H) | 18.78 in x 24.41 in x 68.23 in |
Package Dimensions (L x W x H) | 47.7012 cm x 62.0014 cm x 173.3042 cm |
Package Weight (Imperial) | 493.900 L |
Package Weight (Metric) | 224.033 kg |
FENA-21
The FENA 21 DualPort module supports Three protocols Modbus-TCP, EtherNet/IP, and the PROFInet IO RT network. The Modbus-TCP protocol is simply the Modbus protocol used on top of Ethernet-TCP/IP. Modbus-TCP is an open Industrial Ethernet network which has been specified by the Modbus-IDA User Organization. EtherNet/IP is based on the Common Industrial Protocol (CIP), which is also the framework for both the ControlNet and DeviceNet network protocols. PROFInet IO RT is an open network based on the PI Organization standard.
