ABB - Low Voltage Drives
ACS880-01-096A-5+B056+D150+K473+L502
Alternate Item Number: 3AUA0000192552
UPC: 662348062746
Documents & Media
Contact for Pricing
Overview

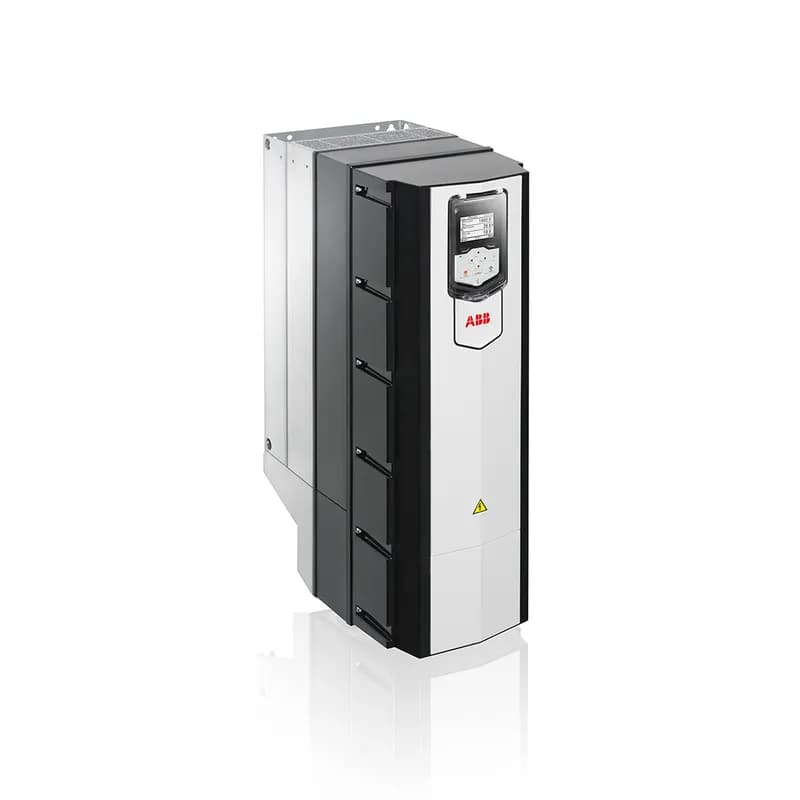

The ABB ACS880-01-096A-5+B056+D150+K473+L502 is a wall-mounted single drive from ABB’s ACS880 product family, delivering 75 HP (96 A) output at 480 VAC with a voltage range of 380–500V. This drive is designed for industrial motor control applications requiring precise speed regulation, energy efficiency, and robust protection in harsh environments. Its UL TYPE 12 (IP55) enclosure resists dust and moisture, making it suitable for indoor or outdoor installations where exposure to contaminants is a concern. The drive supports 3-phase input and output, ensuring compatibility with standard industrial power systems. A local or remote-mounted LCD display and keypad enable intuitive operation and monitoring, while Ethernet connectivity (EtherNet/IP, Modbus TCP, PROFINET) allows seamless integration into modern industrial networks. Additional features include an HTL encoder interface for feedback control, an integrated braking chopper for dynamic braking, and a compact R6 frame measuring 34.81 in (H) x 11.46 in (W) x 16.4 in (D). Weighing 99 lbs, this drive is optimized for applications in manufacturing, automation, and process industries where space constraints and reliability are critical. The ACS880-01 series is part of ABB’s low-voltage drive portfolio, known for durability and ease of maintenance.
- 75 HP (96 A) output at 480 VAC with 380–500V input range
- UL TYPE 12 (IP55) enclosure for dust and moisture resistance
- Local/remote LCD display and keypad for operation and monitoring
- Ethernet connectivity (EtherNet/IP, Modbus TCP, PROFINET) for network integration
- Integrated HTL encoder interface and braking chopper for dynamic control
Specifications
Connection Type | 3-phase |
Connection Type | 3-Phase Input/Output |
Current Rating | 96 A |
Current Rating | 96A |
IP Rating | IP55 |
Mounting Type | Wall |
Mounting Type | Wall-mounted |
Nema Rating | Type 12 |
Poles | 3 |
Poles | 3-Phase |
Series | ACS880 |
Size | 34.81x11.46x16.4 in |
Size | 34.81 in x 11.46 in x 16.4 in |
Voltage Rating | 480 VAC |
Package Dimensions (L x W x H) | 35 IN x 13 IN x 23 IN |
Package Dimensions (L x W x H) | 88.9 cm x 33.02 cm x 58.42 cm |
FENA-21
The FENA 21 DualPort module supports Three protocols Modbus-TCP, EtherNet/IP, and the PROFInet IO RT network. The Modbus-TCP protocol is simply the Modbus protocol used on top of Ethernet-TCP/IP. Modbus-TCP is an open Industrial Ethernet network which has been specified by the Modbus-IDA User Organization. EtherNet/IP is based on the Common Industrial Protocol (CIP), which is also the framework for both the ControlNet and DeviceNet network protocols. PROFInet IO RT is an open network based on the PI Organization standard.
