ACS850-04-025A-5+E200+J400
Alternate Item Number: 3AUA0000114373
UPC: 662348058664
Documents & Media
Contact for Pricing
Overview

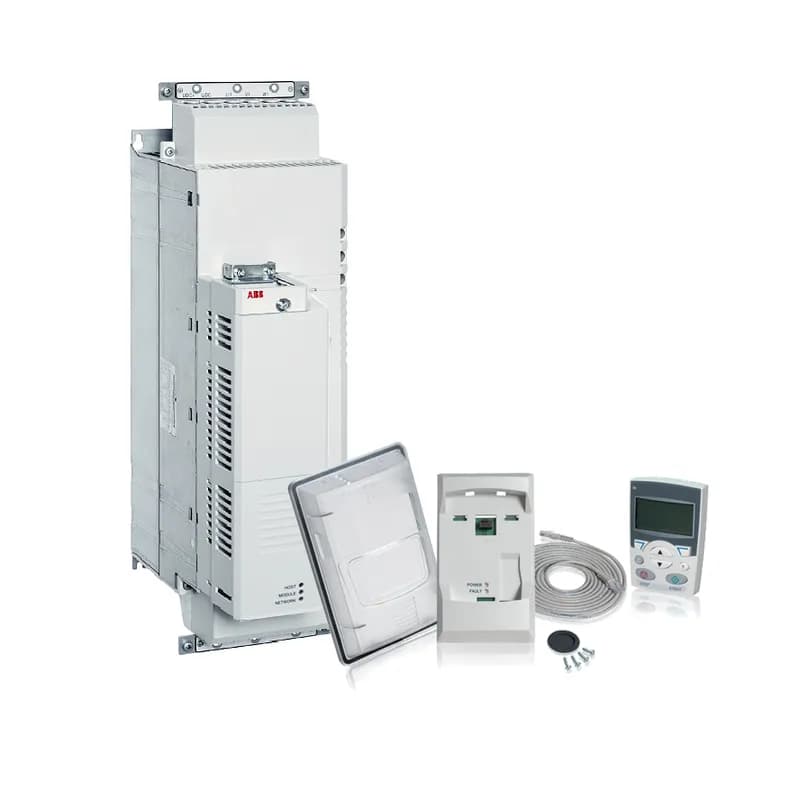

The ABB ACS850-04-025A-5+E200+J400 is a robust 15 HP machinery drive from ABB's Low Voltage Drives division, engineered for precise industrial motor control. This unit delivers an output current of 23 A and operates on a 480 VAC power supply, with a flexible voltage range of 380-500V, ensuring compatibility with diverse electrical systems. Designed for cabinet mounting in a side-by-side configuration, it features a UL TYPE OPEN (IP20) enclosure, offering protection while allowing for efficient heat dissipation and accessibility. The drive includes an integrated EMC/RFI filter (2nd Envir designation), crucial for minimizing electromagnetic interference and ensuring stable operation in sensitive environments. With a 3-phase input and 3-phase output, the ACS850-04-025A-5+E200+J400 provides reliable power delivery for demanding machinery applications. Its compact frame size C, measuring 22.3 inches in height, 6.5 inches in width, and 11.8 inches in depth, and weighing 35 lbs, facilitates easy integration into existing control panels and machinery. This drive is ideal for use in manufacturing, automation, and process industries where precise speed and torque control are paramount. Trust ABB's extensive experience in low-voltage drives for dependable and efficient performance in your industrial operations. The included control unit cover with a drive mount control panel enhances user interaction and operational oversight.
- 15 HP / 11 kW motor power rating
- 23 A output current
- 480 VAC input voltage (380-500V range)
- UL TYPE OPEN (IP20) enclosure
- Cabinet-mounted (Side-by-Side) with control panel
Specifications
Connection Type | 3-Phase Input, 3-Phase Output |
Connection Type | 3-phase |
Connection Type | 3-Phase Input/Output |
Current Rating | 23 A |
IP Rating | IP20 |
Mounting Type | Cabinet-mounted (Side-by-Side) |
Poles | 3-Phase |
Series | ACS850 |
Size | 22.3 in x 6.5 in x 11.8 in |
Voltage Rating | 480 VAC |
Voltage Rating | 480 VAC (380-500V range) |
FENA-21
The FENA 21 DualPort module supports Three protocols Modbus-TCP, EtherNet/IP, and the PROFInet IO RT network. The Modbus-TCP protocol is simply the Modbus protocol used on top of Ethernet-TCP/IP. Modbus-TCP is an open Industrial Ethernet network which has been specified by the Modbus-IDA User Organization. EtherNet/IP is based on the Common Industrial Protocol (CIP), which is also the framework for both the ControlNet and DeviceNet network protocols. PROFInet IO RT is an open network based on the PI Organization standard.
