ABB - Low Voltage Drives
ACS800-37-0060-7+B054+C129+E205+K466
Alternate Item Number: 3AUA0000158496
UPC: 662348053133
Documents & Media
Contact for Pricing
Overview

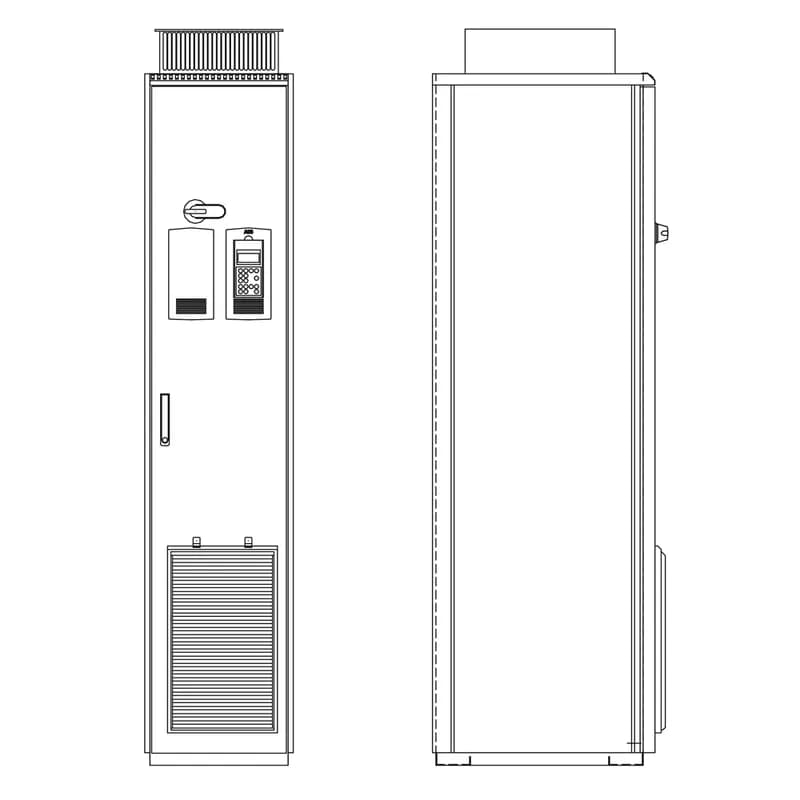

The ABB ACS800-37-0060-7+B054+C129+E205+K466 is a floor-mounted, ultra-low harmonic cabinet drive from ABB's Low Voltage Drives division. This robust unit is designed for demanding industrial applications requiring minimal harmonic distortion, featuring a 50 HP motor rating and a 54 A output current. It operates on a 3-phase input and provides a 3-phase output with a voltage range of 525-690 VAC, specifically rated for 575 VAC. The drive is housed in a NEMA 1 / UL Type 1 filtered enclosure (IP42), offering protection against solid objects larger than 1mm. Its substantial frame size (R6) contributes to its durable construction, with product dimensions of 91.1 inches in height, 16.9 inches in width, and 25.4 inches in depth, and a significant product weight of 662 lbs. Control and monitoring are facilitated by a local or remote-mounted LCD display and keypad. Connectivity is enhanced with an included EtherNet adapter, enabling seamless integration into modern automation networks. The drive also features a dU/dT choke, which is crucial for reducing voltage stress on motor insulation and minimizing electromagnetic interference, ensuring smoother motor operation and extended equipment life. This cabinet drive is ideal for applications in manufacturing, process control, and industrial automation where power quality and reliable motor control are paramount. Its robust design and advanced features make it a dependable choice for enhancing productivity and efficiency in complex industrial environments.
- Ultra Low Harmonic Cabinet Drive for superior power quality
- 50 HP motor rating with 54 A output current
- 575 VAC operation with 525-690V voltage range
- NEMA 1 / UL Type 1 filtered enclosure (IP42) for protection
- EtherNet Adapter for seamless network integration
Specifications
Connection Type | 3-phase |
Current Rating | 54 A |
IP Rating | IP42 |
Mounting Type | Floor-mounted |
NEMA Rating | Type 1 |
Nema Rating | NEMA 1 |
Nema Rating | NEMA 1 / UL Type 1 |
Series | ACS800 |
Size | 91.1 in x 16.9 in x 25.4 in |
Voltage Rating | 575 VAC |
FENA-21
The FENA 21 DualPort module supports Three protocols Modbus-TCP, EtherNet/IP, and the PROFInet IO RT network. The Modbus-TCP protocol is simply the Modbus protocol used on top of Ethernet-TCP/IP. Modbus-TCP is an open Industrial Ethernet network which has been specified by the Modbus-IDA User Organization. EtherNet/IP is based on the Common Industrial Protocol (CIP), which is also the framework for both the ControlNet and DeviceNet network protocols. PROFInet IO RT is an open network based on the PI Organization standard.
