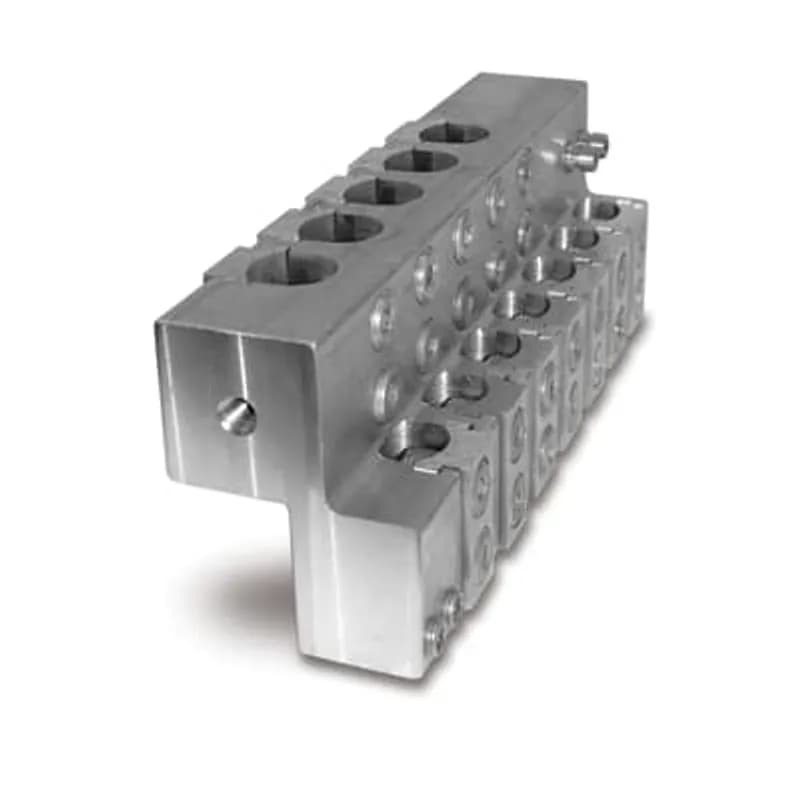

ABB - Installation Products ZBKW 2041-1.25 EZSL - Aluminum Transformer Connector, 1/0 - 1000 kcmil, Aluminum and Copper, Stud size 1 inch and 1-1/4 inch, Eight Conductor, secondary connector, Easy-On, StreetLight, 7.549 inches long.
ABB - Installation Products

ZBKW 2041-1.25 EZSL

UPC: 783786978533

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB ZBKW 2041-1.25 EZSL is a robust, eight-conductor secondary connector designed for reliable electrical connections in transformer applications. Manufactured by ABB Installation Products, this connector is engineered to handle a wide range of conductor sizes, accommodating aluminum and copper conductors from 1/0 to 1000 kcmil. Its versatile stud size compatibility includes both 1-inch and 1-1/4 inch studs, ensuring broad application flexibility. The "Easy-On" feature simplifies installation, reducing labor time and potential for error. Measuring 7.549 inches in length, this connector provides ample space for secure conductor termination. Its construction from aluminum and copper materials ensures excellent conductivity and corrosion resistance, vital for long-term performance in electrical infrastructure. The UNSPSC code 39121443 categorizes this product within the electrical connectors and wiring devices segment. Ideal for street lighting and other secondary distribution systems, the ZBKW 2041-1.25 EZSL offers a dependable solution for connecting multiple conductors to transformer studs. Its design prioritizes safety and efficiency, making it a preferred choice for electrical contractors and utility professionals. The specific SKU, ZBKW 2041-1.25 EZSL, ensures precise identification for procurement and inventory management. This connector is a critical component for ensuring the integrity and longevity of electrical distribution networks, facilitating efficient power transfer from transformers to secondary circuits.
  • Accommodates aluminum and copper conductors from 1/0 to 1000 kcmil
  • Compatible with 1-inch and 1-1/4 inch stud sizes
  • Eight-conductor configuration for secondary connections
  • Easy-On design for simplified installation
  • Durable aluminum and copper construction for reliable conductivity

Specifications

Application
Transformer Connector
Conductor Range
1/0 to 1000 kcmil
Connection
Mechanical
Insulation
False
Material
Aluminum
Number of Conductors
8
Size
7.549 inches
Special Features
Cables are easily placed into the keeper slot. Minimizes the hassle and hazards of having to force cables into the closed cable ports found on conventional mechanical connectors. You save time and labor. Compact Zeebar design halves cantilever stress and doubles cable capacity. EZ Torque Stud Screws make mounting to the transformer stud easy and shear off at the proper torque. Made from Aluminum which provides high strength and high conductivity, Dual-Rated to use with aluminum or copper cable. Quick Disconnects so connector is easy to install or remove, Wide cable range from 1/0 to 1000 kcmil. Includes 1 inch transformer stud, two streetlight outlets and mounting support provision
Standard
RUS Accepted
Type
Quick-Disconnect Lay-In Transformer Connector
Package Dimensions (L x W x H)
13.18 IN x 7.75 IN x 7 IN
Package Dimensions (L x W x H)
33.4772 cm x 19.685 cm x 17.78 cm
Package Weight (Imperial)
6.0000 L
Package Weight (Metric)
2.7220 kg
Submersible Transformer Connector, Aluminum Bus connector, 1/0 - 750 kcmil, Aluminum and Copper, Stud Size 1 inch, Eight Connector, Insulating Rockets.

FTUH 750-44-1 AWR

Submersible Transformer Connector, Aluminum Bus connector, 1/0 - 750 kcmil, Aluminum and Copper, Stud Size 1 inch, Eight Connector, Insulating Rockets.

Frequently Asked Questions

What conductor sizes does this ABB connector support?

This ABB connector supports aluminum and copper conductors ranging from 1/0 to 1000 kcmil.

What stud sizes are compatible with this connector?

The ZBKW 2041-1.25 EZSL is compatible with both 1-inch and 1-1/4 inch stud sizes.

How many conductors can this secondary connector accommodate?

This secondary connector is designed to accommodate eight conductors.

What is the primary material of this transformer connector?

The transformer connector is constructed from aluminum and copper materials.

What is the purpose of the 'Easy-On' feature?

The 'Easy-On' feature is designed to simplify and expedite the installation process.
