ABB - Installation Products XJG98-G - PVC Coated XJG Rigid Conduit Expansion Coupling with Internal Bonding Jumper, 3-1/2 Inch/91 Metric, Body is Malleable Iron with Zinc Plating, Internal Bonding Jumper is Tinned Copper Braid, Packing PTFE/Synthetic Fiber Material, 8 Inch/203.20 Millimeters Movement, Diameter 6.37 Inch/161.80 Millimeters, Length 16.87 Inch/428.50 Millimeters, Height 6.75 Inch/171.45 Millimeters, Gray
ABB - Installation Products

XJG98-G

UPC: 704508417918

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Overview

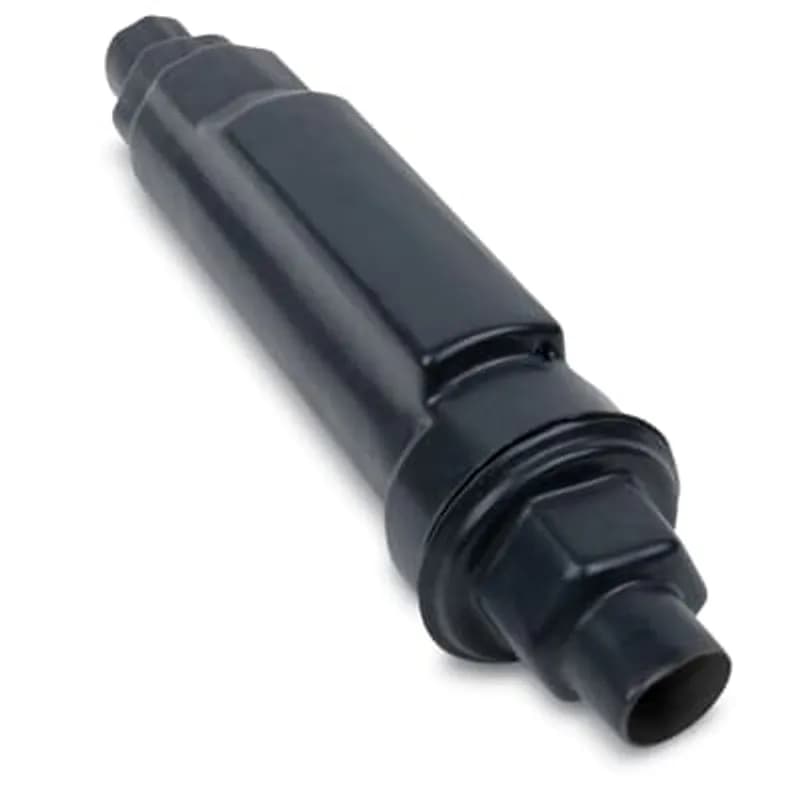

The ABB XJG98-G PVC Coated XJG Rigid Conduit Expansion Coupling is engineered for high-performance electrical conduit systems requiring thermal expansion management and reliable grounding. Designed for 3-1/2 inch conduit, this coupling features a malleable iron body with zinc plating for superior durability and corrosion resistance. The internal tinned copper braid bonding jumper ensures continuous electrical continuity, meeting NEC grounding requirements for industrial and commercial installations. Engineered for 8-inch movement capacity, the XJG98-G accommodates thermal expansion and contraction in rigid conduit runs, preventing stress on joints and maintaining system integrity. The gray PVC coating delivers enhanced UV protection and corrosion resistance, ideal for harsh environments such as outdoor installations, chemical plants, or coastal areas. The PTFE/synthetic fiber packing provides smooth, long-lasting operation while minimizing friction during expansion cycles. With dimensions of 16.87 inches in length and 6.37 inches in diameter, this coupling is compatible with standard rigid conduit systems. Trust ABB Installation Products for dependable, high-quality conduit solutions that meet the demands of modern electrical infrastructure.
  • 3-1/2 inch conduit compatibility for standard rigid systems
  • 8-inch movement capacity for thermal expansion management
  • Malleable iron body with zinc plating for durability and corrosion resistance
  • Internal tinned copper braid bonding jumper ensures electrical continuity
  • Gray PVC coating provides UV protection and corrosion resistance

Specifications

Application
Allows for the Contraction and Expansion of a Conduit Run Without Reducing the Mechanical or Bonding Integrity of the Raceway
Color
Gray
Color
Grey
Length
16.87 in
Length
428.5 mm
Material
Iron with Zinc Plating
Material
Malleable Iron with Zinc Plating, Tinned Copper Braid, PTFE/Synthetic Fiber
Material Quality
Iron with Zinc Plating
Outside Diameter
6.37 in
Outside Diameter
161.8 mm
Series
XJG
Size
3-1/2 Inch/91 Metric
Special Features
No Disassembly Necessary to Install
Standard
UL E23018
Trade Size
3-1/2 in , 91 mm
Type
Expansion Coupling
Package Dimensions (L x W x H)
24.5 IN x 15.75 IN x 8.25 IN
Package Dimensions (L x W x H)
62.23 cm x 40.005 cm x 20.955 cm
Package Weight (Imperial)
32.520 L
Package Weight (Metric)
14.751 kg
PVC Coated XJG Rigid Conduit Expansion Coupling with Internal Bonding Jumper, 3-1/2 Inch/91 Metric, Body is Malleable Iron with Zinc Plating, Internal Bonding Jumper is Tinned Copper Braid, Packing PTFE/Synthetic Fiber Material, 8 Inch/203.20 Millimeters Movement, Diameter 6.37 Inch/161.80 Millimeters, Length 16.87 Inch/428.50 Millimeters, Height 6.75 Inch/171.45 Millimeters,Gray

XJG98-G1

PVC Coated XJG Rigid Conduit Expansion Coupling with Internal Bonding Jumper, 3-1/2 Inch/91 Metric, Body is Malleable Iron with Zinc Plating, Internal Bonding Jumper is Tinned Copper Braid, Packing PTFE/Synthetic Fiber Material, 8 Inch/203.20 Millimeters Movement, Diameter 6.37 Inch/161.80 Millimeters, Length 16.87 Inch/428.50 Millimeters, Height 6.75 Inch/171.45 Millimeters,Gray
PVC Coated XJG Rigid Conduit Expansion Coupling with Internal Bonding Jumper, 3-1/2 Inch/91 Metric, Body is Malleable Iron with Zinc Plating, Internal Bonding Jumper is Tinned Copper Braid, Packing PTFE/Synthetic Fiber Material, 4 Inch/101.60 Millimeters Movement, Diameter 6.37 Inch/161.80 Millimeters, Length 12.87 Inch/326.90 Millimeters, Height 6.75 Inch/171.45 Millimeters, Gray

XJG94-G

PVC Coated XJG Rigid Conduit Expansion Coupling with Internal Bonding Jumper, 3-1/2 Inch/91 Metric, Body is Malleable Iron with Zinc Plating, Internal Bonding Jumper is Tinned Copper Braid, Packing PTFE/Synthetic Fiber Material, 4 Inch/101.60 Millimeters Movement, Diameter 6.37 Inch/161.80 Millimeters, Length 12.87 Inch/326.90 Millimeters, Height 6.75 Inch/171.45 Millimeters, Gray
PVC Double Coated Split Coupling, 3-1/2 Inch/91 Metric Pipe Size, Nominal .002 Inch (2 Mil) Blue Urethane on Both Interior and Exterior, Minimum .040 Inch (40 Mil) PVC Bonded To Exterior, Malleable Iron, Gray

TCC9-G

PVC Double Coated Split Coupling, 3-1/2 Inch/91 Metric Pipe Size, Nominal .002 Inch (2 Mil) Blue Urethane on Both Interior and Exterior, Minimum .040 Inch (40 Mil) PVC Bonded To Exterior, Malleable Iron, Gray
PVC Coated XJG Rigid Conduit Expansion Coupling with Internal Bonding Jumper Combined with XD Expansion/Deflection Coupling, 3-1/2 Inch/91 Metric, Body is Malleable Iron with Zinc Plating, Internal Bonding Jumper is Tinned Copper Braid, Packing PTFE/Synthetic Fiber Material, Gray

XJGXD94-G

PVC Coated XJG Rigid Conduit Expansion Coupling with Internal Bonding Jumper Combined with XD Expansion/Deflection Coupling, 3-1/2 Inch/91 Metric, Body is Malleable Iron with Zinc Plating, Internal Bonding Jumper is Tinned Copper Braid, Packing PTFE/Synthetic Fiber Material, Gray
3-1/2 Inch, Compression Coupling, Malleable Iron-Zinc Plated, For Use with Rigid Conduit

HK 409

3-1/2 Inch, Compression Coupling, Malleable Iron-Zinc Plated, For Use with Rigid Conduit
3-1/2 Inch, Compression Connector, Malleable Iron-Zinc Plated, For Use with Rigid Conduit

HC 409

3-1/2 Inch, Compression Connector, Malleable Iron-Zinc Plated, For Use with Rigid Conduit
3-1/2 Inch, Three Piece Coupling, Malleable Iron-Zinc Plated, For Use with Rigid/IMC Conduit

EK 409

3-1/2 Inch, Three Piece Coupling, Malleable Iron-Zinc Plated, For Use with Rigid/IMC Conduit
PVC Coated XJG Rigid Conduit Expansion Coupling with Internal Bonding Jumper, 2-1/2 Inch/63 Metric, Body is Malleable Iron with Zinc Plating, Internal Bonding Jumper is Tinned Copper Braid, Packing PTFE/Synthetic Fiber Material, 8 Inch/203.20 Millimeters Movement, Diameter 4.96 Inch/125.98 Millimeters, Length 16.12 Inch/409.45 Millimeters, Height 5.25 Inch/133.35 Millimeters,Gray

XJG78-G1

PVC Coated XJG Rigid Conduit Expansion Coupling with Internal Bonding Jumper, 2-1/2 Inch/63 Metric, Body is Malleable Iron with Zinc Plating, Internal Bonding Jumper is Tinned Copper Braid, Packing PTFE/Synthetic Fiber Material, 8 Inch/203.20 Millimeters Movement, Diameter 4.96 Inch/125.98 Millimeters, Length 16.12 Inch/409.45 Millimeters, Height 5.25 Inch/133.35 Millimeters,Gray
PVC Coated XJG Rigid Conduit Expansion Coupling with Internal Bonding Jumper, 2-1/2 Inch/63 Metric, Body is Malleable Iron with Zinc Plating, Internal Bonding Jumper is Tinned Copper Braid, Packing PTFE/Synthetic Fiber Material, 8 Inch/203.20 Millimeters Movement, Diameter 4.96 Inch/125.98 Millimeters, Length 16.12 Inch/409.45 Millimeters, Height 5.25 Inch/133.35 Millimeters, Gray

XJG78-G

PVC Coated XJG Rigid Conduit Expansion Coupling with Internal Bonding Jumper, 2-1/2 Inch/63 Metric, Body is Malleable Iron with Zinc Plating, Internal Bonding Jumper is Tinned Copper Braid, Packing PTFE/Synthetic Fiber Material, 8 Inch/203.20 Millimeters Movement, Diameter 4.96 Inch/125.98 Millimeters, Length 16.12 Inch/409.45 Millimeters, Height 5.25 Inch/133.35 Millimeters, Gray
PVC Coated XJG Rigid Conduit Expansion Coupling with Internal Bonding Jumper, 3 Inch/78 Metric, Body is Malleable Iron with Zinc Plating, Internal Bonding Jumper is Tinned Copper Braid, Packing PTFE/Synthetic Fiber Material, 8 Inch/203.20 Millimeters Movement, Diameter 4.96 Inch/125.98 Millimeters, Length 16.12 Inch/409.45 Millimeters, Height 5.25 Inch/133.35 Millimeters, Gray

XJG88-G

PVC Coated XJG Rigid Conduit Expansion Coupling with Internal Bonding Jumper, 3 Inch/78 Metric, Body is Malleable Iron with Zinc Plating, Internal Bonding Jumper is Tinned Copper Braid, Packing PTFE/Synthetic Fiber Material, 8 Inch/203.20 Millimeters Movement, Diameter 4.96 Inch/125.98 Millimeters, Length 16.12 Inch/409.45 Millimeters, Height 5.25 Inch/133.35 Millimeters, Gray
PVC Coated XJG Rigid Conduit Expansion Coupling with Internal Bonding Jumper, 3 Inch/78 Metric, Body is Malleable Iron with Zinc Plating, Internal Bonding Jumper is Tinned Copper Braid, Packing PTFE/Synthetic Fiber Material, 8 Inch/203.20 Millimeters Movement, Diameter 4.96 Inch/125.98 Millimeters, Length 16.12 Inch/409.45 Millimeters, Height 5.25 Inch/133.35 Millimeters,Gray

XJG88-G1

PVC Coated XJG Rigid Conduit Expansion Coupling with Internal Bonding Jumper, 3 Inch/78 Metric, Body is Malleable Iron with Zinc Plating, Internal Bonding Jumper is Tinned Copper Braid, Packing PTFE/Synthetic Fiber Material, 8 Inch/203.20 Millimeters Movement, Diameter 4.96 Inch/125.98 Millimeters, Length 16.12 Inch/409.45 Millimeters, Height 5.25 Inch/133.35 Millimeters,Gray
PVC Coated XJG Rigid Conduit Expansion Coupling with Internal Bonding Jumper, 5 Inch/129 Metric, Body is Malleable Iron with Zinc Plating, Internal Bonding Jumper is Tinned Copper Braid, Packing PTFE/Synthetic Fiber Material, 8 Inch/203.20 Millimeters Movement, Diameter 7.99 Inch/161.80 Millimeters, Length 18.87 Inch/479.30 Millimeters, Height 8.56 Inch/217.42 Millimeters, Gray

XJG1208-G

PVC Coated XJG Rigid Conduit Expansion Coupling with Internal Bonding Jumper, 5 Inch/129 Metric, Body is Malleable Iron with Zinc Plating, Internal Bonding Jumper is Tinned Copper Braid, Packing PTFE/Synthetic Fiber Material, 8 Inch/203.20 Millimeters Movement, Diameter 7.99 Inch/161.80 Millimeters, Length 18.87 Inch/479.30 Millimeters, Height 8.56 Inch/217.42 Millimeters, Gray
