ABB - Installation Products X58-B - PVC Coated Conduit Body, X Type, Form 8, Size 1-1/2 Inch/41 Metric, Iron, Light Blue
ABB - Installation Products

X58-B

UPC: 704508415587

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Overview

The ABB X58-B is a robust X Type, Form 8 conduit body engineered for demanding electrical installations. Constructed from durable iron and finished with a protective PVC coating, this conduit body offers superior resistance to corrosion and environmental degradation, ensuring reliable performance in industrial, commercial, and residential settings. Its X Type, Form 8 configuration facilitates efficient and secure conduit connections, simplifying wiring runs and providing access for maintenance. Key features include: * **Material:** High-strength iron for structural integrity. * **Coating:** Protective PVC for enhanced corrosion resistance. * **Type:** X Type, Form 8 for optimized conduit pathway management. * **Size:** 1-1/2 Inch / 41 Metric, compatible with standard conduit systems. * **Color:** Light blue for improved visibility and system identification. This conduit body is designed to meet stringent industry standards, providing a safe and dependable solution for protecting electrical wiring. The 1-1/2 inch (41 metric) size is versatile for various applications, and the light blue color aids in quick identification within complex electrical infrastructure. Trust ABB Installation Products for high-quality components that deliver exceptional durability and performance.
  • Durable iron construction for long-lasting performance
  • Protective PVC coating resists corrosion and environmental damage
  • X Type, Form 8 design for efficient conduit connections
  • 1-1/2 Inch / 41 Metric size accommodates standard conduits
  • Light blue color enhances visibility and system organization

Specifications

Application
Act As Pull Outlets for Conductors Being Installed
Color
Blue
Color
Light Blue
Finish
PVC Coated
Form
Form 8
Hub Size
1-1/2 in , 41 mm
Hub Size
1-1/2
Hub Size
41
Material
Gray Iron
Material
Iron with PVC Coating
Material Quality
Gray Iron
Size
1-1/2 Inch (41 Metric)
Special Features
The Conduit Body and Cover are Double Coated with a Nominal .002 In. Blue Urethane on Both The Interior and Exterior, Before PVC Coating is Applied
Standard
UL E2969
Type
Form 8 Conduit Body
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
7.150 L
Package Weight (Metric)
3.243 kg
PVC Coated Conduit Body, C Shape, Form 7, Size 1-1/2 Inch/41 Metric, Iron, Light Blue

C57-B

PVC Coated Conduit Body, C Shape, Form 7, Size 1-1/2 Inch/41 Metric, Iron, Light Blue
PVC Double-Coated Conduit Sealing Fitting, EYS Series for Hazardous Locations, for Sealing in Vertical or Horizontal Position, Male and Female Hub, Hub Size 1-1/2 Inch/41 Metric, Turning Radius 2.00 Inch/50.80 Millimeters, Ductile Iron, Light Blue

EYS56-B

PVC Double-Coated Conduit Sealing Fitting, EYS Series for Hazardous Locations, for Sealing in Vertical or Horizontal Position, Male and Female Hub, Hub Size 1-1/2 Inch/41 Metric, Turning Radius 2.00 Inch/50.80 Millimeters, Ductile Iron, Light Blue
PVC Coated Conduit Body, C Shape, Form 8, Size 1-1/2 Inch/41 Metric, Iron, Light Blue

C58-B

PVC Coated Conduit Body, C Shape, Form 8, Size 1-1/2 Inch/41 Metric, Iron, Light Blue
PVC Coated Conduit Body, T Shape, Form 8, Size 1-1/2 Inch/41 Metric, Iron,Light Blue

T58-B1

PVC Coated Conduit Body, T Shape, Form 8, Size 1-1/2 Inch/41 Metric, Iron,Light Blue

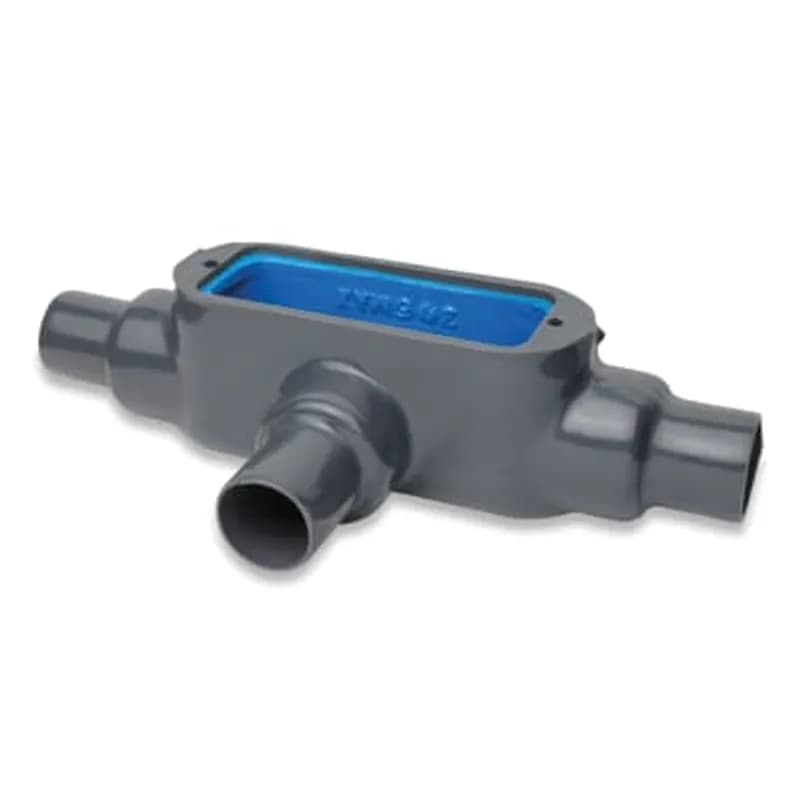

PVC Coated Conduit Body, TB Type, Form 8, Size 1-1/2 Inch/41 Metric, Iron, Light Blue
