Contact for Pricing
Minimum Qty: 30
Multiplier: 30
*Contact for lower quantities*

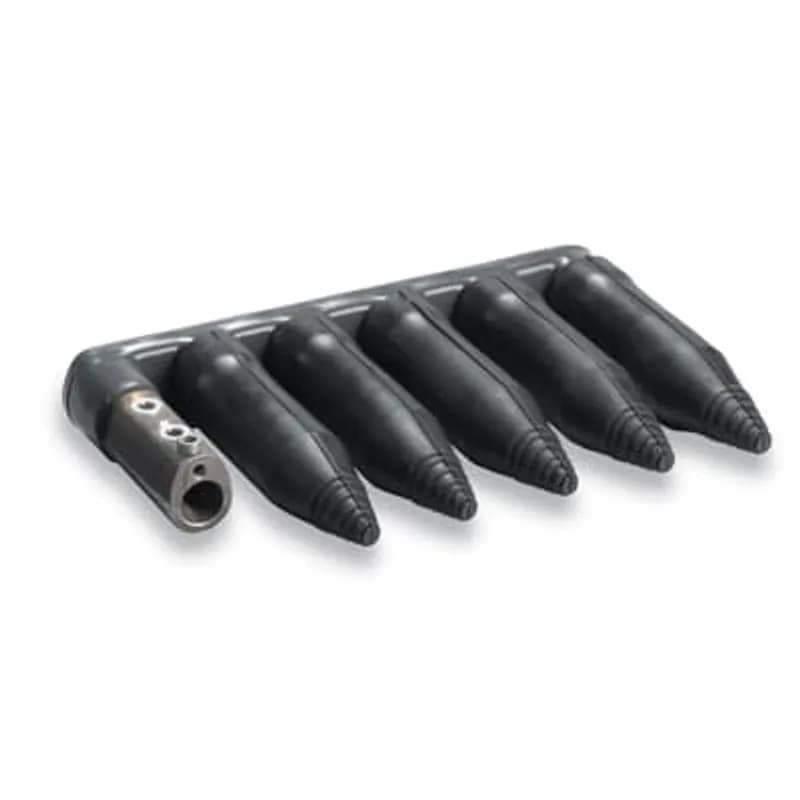

Overview
- Aluminum Flood-Seal construction for submersible applications
- UH 750 series with Streetlight outlet
- Accommodates cable range 1/0-750 S/L
- Features 4 integrated outlets
- 9-1/2 inch length for secure connections
Specifications
Application | Flood Seal Mechanical 750 kcmil Connector |
Color | Black |
Conductor Range | 1/0 to 750 kcmil , S/L #13 to #2 AWG |
Connection | Mechanical |
Connection Type | Twin-Screw Mechanical |
Insulation | yes |
Material | Aluminum |
Material | Aluminum Connector, EPDM Rubber Insulating Sleeves |
Number of Conductors | 4 |
Poles | 4 |
Series | UH 750 |
Size | 9-1/2 inch |
Special Features | Flood Seal Insulating Rockets field tested in more thatn 10 million applications. All Connectors are 100 percent Hi-Pot tested at 4000 volts for 60 seconds. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. Aluminum-alloy connector construction for High Strength and High Conductivity. Dual-rated to accept a wide range of Copper and Aluminum Conductors. Street Light Outlet option - wide range calbe outlets support the use of street light wire |
Standard | ANSI C119.1 and C119.4 |
Type | Flood Seal Twin-Screw Mechanical Connector |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 5.6100 L |
Package Weight (Metric) | 2.5450 kg |
418F-ID
Cable Tie Natural Flag Marker 4" 18lb 100, Natural Cable Ties (zip ties, tie wraps, wire ties) are designed for the bundling of cables and wires.
PCSB4-3S-12Y
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.Frequently Asked Questions
What cable sizes does the UH 750-4 SLR connector support?
The UH 750-4 SLR connector is designed to accommodate a cable range of 1/0 to 750 S/L.
How many outlets does the ABB UH 750-4 SLR connector have?
The ABB UH 750-4 SLR connector features four integrated outlets.
What is the primary application for the UH 750-4 SLR connector?
The UH 750-4 SLR connector is designed for submersible applications, particularly with a streetlight outlet configuration.
What is the length of the ABB UH 750-4 SLR connector?
The ABB UH 750-4 SLR connector has a length of 9-1/2 inches.
What type of connection mechanism does the UH 750-4 SLR use?
The UH 750-4 SLR connector utilizes a twin-screw mechanical connection.
