UPC: 034481191353
Documents & Media
Contact for Pricing
Overview
- Schedule 80 PVC construction for enhanced strength and resistance
- 3-inch nominal diameter and 24-inch bend radius for efficient wire pulling and fluid flow
- 90-degree bend angle for secure and reliable connections
- Compatible with non-metallic solvent weld fittings
- Suitable for chemical processing, water treatment, and industrial plumbing applications
Specifications
Color | Gray |
Color | Gray;Grey |
Depth | 43.64 in |
Length | 43.64 in |
Material | PVC |
Material Quality | PVC-Polyvinyl Chloride |
Outside Diameter | 3.5 in |
Outside Diameter | 88.9 mm |
Size | 3 Inches |
Standard | UL E323335 |
Trade Size | 3 Inches |
Trade Size | 3 |
Type | Rigid Non-Metallic Conduit-Schedule 80 Elbows |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 8.350 L |
Package Weight (Metric) | 3.788 kg |
UB9DLB
Schedule 80 Elbow, Size 3 Inches, Bend Radius 24 Inches, Bend Angle 90 Degrees, Material PVC, Belled End
PH9DL
DB-120 Sweep Conduit Fitting, Size 3 Inches, Bend Radius 24 Inches, Bend Angle 90 Degrees, Material Non-MetallicPF9DL
DB-60 Sweep Conduit Fitting, Size 3 Inches, Bend Radius 24 Inches, Bend Angle 90 Degrees, Material Non-Metallic
PH7FL
DB-120 Sweep Conduit Fitting, Size 3 Inches, Bend Radius 36 Inches, Bend Angle 45 Degrees, Material Non-Metallic
PF7FL
DB-60 Sweep Conduit Fitting, Size 3 Inches, Bend Radius 36 Inches, Bend Angle 45 Degrees, Material Non-Metallic

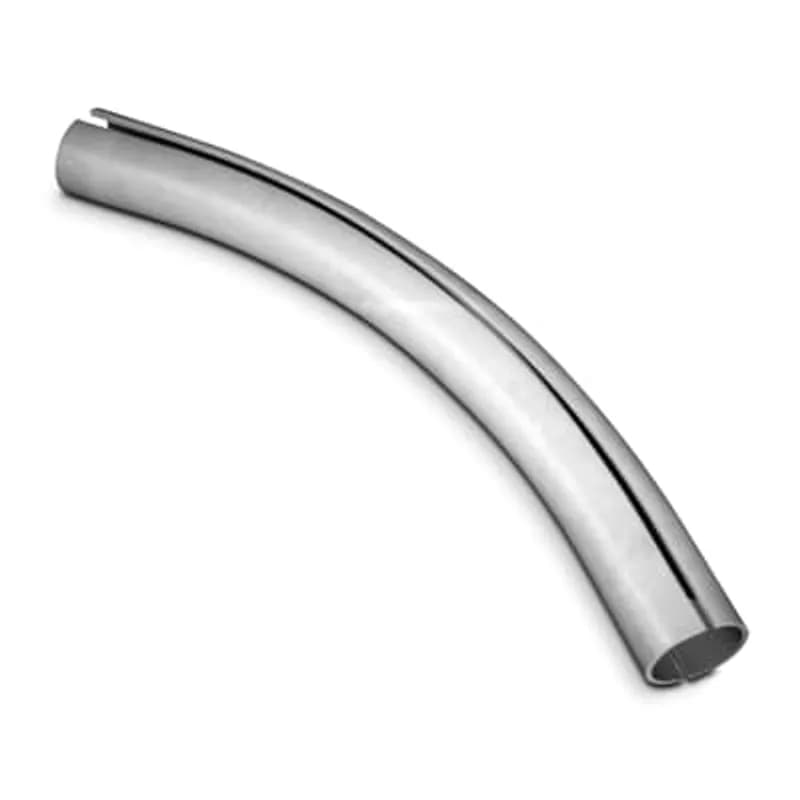

UA7ILSD
Schedule 40 Elbow, Size 3 Inches, Bend Radius 60 Inches, Bend Angle 45 Degrees, Material PVC, Split DuctUB9FLB
Schedule 80 Elbow, Size 3 Inches, Bend Radius 36 Inches, Bend Angle 90 Degrees, Material PVC, Belled End
Frequently Asked Questions
What type of product is UB9DL?
UB9DL refers to Flexible PVC Elbows.
Is the product ready for immediate use upon delivery?
Yes, the product is fully assembled and ready to use upon delivery.
What materials are used, and are they corrosive?
The product is made from non-corrosive materials, specifically all PVC and Neoprene.
Is the product resistant to sunlight exposure?
Yes, the product is sunlight resistant, making it suitable for outdoor applications.
How does the product ensure moisture-tight connections?
The product features an O-ring seal, which ensures moisture-tight connections.
Is this product UL listed for specific applications?
Yes, the product is UL listed for both enclosed and direct burial applications. This complies with Article 314 of the NEC.
How are UB9DL and larger products shipped?
UB9DL and larger products may be shipped in segments. Customers should consult the factory for specific shipping details.
What type of product is UB9DL?
UB9DL refers to Flexible PVC Elbows.
How are UB9DL and larger products shipped?
UB9DL and larger products may be shipped in segments. Customers should consult the factory for specific shipping details.
Is this product UL listed for specific applications?
Yes, the product is UL listed for both enclosed and direct burial applications. This complies with Article 314 of the NEC.
