ABB - Installation Products U502-G - Clamp, Channel to Beam, Height 4-13/16 Inches, Plate Width 3 Inches, Plate Length 2-3/8 Inches, Plate Thickness 13/16 Inch, Steel, For use with A-1202, A-1402, C-1202 and H-1200 Series Channels, PVC Coated Gray
ABB - Installation Products

U502-G

UPC: 704508028978

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB U502-G Channel to Beam Clamp is a high-strength, industrial-grade fastening solution engineered for secure connections between channels and beams in demanding applications. Constructed from robust steel with a PVC-coated gray finish, this clamp delivers exceptional durability and corrosion resistance for long-term reliability in harsh environments. With a height of 4-13/16 inches, a plate width of 3 inches, and a plate length of 2-3/8 inches, the U502-G is designed to handle significant loads while maintaining structural integrity. Key specifications include a 13/16-inch thick steel plate that ensures superior load-bearing capacity, with a design load of 1200 lbs (5.34 kN) when used in pairs. The clamp is specifically engineered for compatibility with ABB’s A-1202, A-1402, C-1202, and H-1200 series channels, making it an ideal choice for heavy-duty installations requiring precise alignment and secure fastening. The PVC gray coating not only enhances corrosion resistance but also provides a professional, uniform appearance suitable for both industrial and commercial projects. Engineered for versatility, the U502-G accommodates flanges up to 3/4 inches thick, ensuring compatibility with a wide range of structural components. Its robust design and high-quality materials make it a trusted solution for applications such as electrical enclosures, HVAC systems, and mechanical assemblies where stability and durability are critical. The clamp’s design facilitates easy installation, reducing labor time and ensuring consistent performance across installations. Backed by ABB’s reputation for engineering excellence, the U502-G Channel to Beam Clamp is a reliable choice for professionals seeking a high-performance fastening solution that meets the demands of modern industrial applications. Whether used in pairs for enhanced load distribution or as a standalone component, this clamp delivers the strength, durability, and precision required for critical installations.
  • Heavy-duty steel construction with 13/16-inch thick plate for superior load-bearing capacity
  • PVC-coated gray finish for corrosion resistance and professional appearance
  • Design load of 1200 lbs (5.34 kN) when used in pairs
  • Compatible with ABB A-1202, A-1402, C-1202, and H-1200 series channels
  • Accommodates flanges up to 3/4 inches thick for versatile applications

Specifications

Application
Used to Support and Attach Conduit Runs to Structural Beams
Color
Gray
Finish
PVC Coated
Material
Steel
Material
Steel with PVC Coating
Size
Height 4-13/16 Inches, Plate Width 3 Inches, Plate Length 2-3/8 Inches, Plate Thickness 13/16 Inch
Special Features
PVC Coating for Corrosion Protection
Type
Beam Clamp
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.100 L
Package Weight (Metric)
0.499 kg
PVC Coated Steel Channel to Beam Clamp, Gray

E7602-G

PVC Coated Steel Channel to Beam Clamp, Gray
PVC Coated Five Hole U Support with Goldgalvanized Finish, for use with A Series Channel, Steel, Gray

A210-G

PVC Coated Five Hole U Support with Goldgalvanized Finish, for use with A Series Channel, Steel, Gray
PVC Coated Gray Steel Channel Support, Design Load 800 Pounds, 3/8 Inch Set Screw, 1-1/4 Inch Opening

E767-G

PVC Coated Gray Steel Channel Support, Design Load 800 Pounds, 3/8 Inch Set Screw, 1-1/4 Inch Opening
PVC Coated Four Hole U Support for use with A Series Channel, Steel, Gray

A208-G

PVC Coated Four Hole U Support for use with A Series Channel, Steel, Gray
PVC Coated Steel Medium Pipe Clamp, Size 1 Inch, Gray

C7251-G

PVC Coated Steel Medium Pipe Clamp, Size 1 Inch, Gray

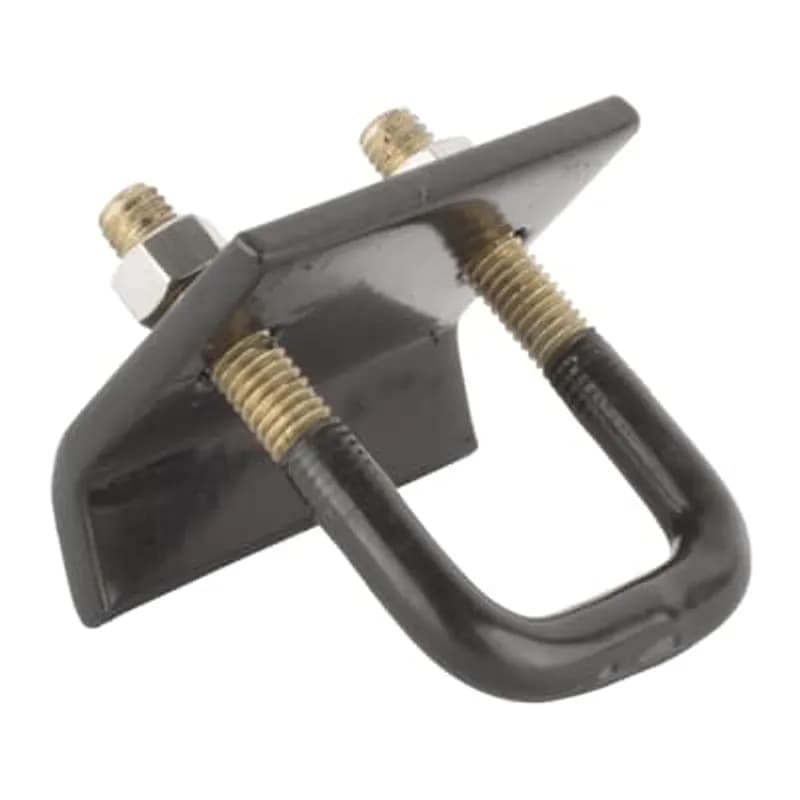

Clamp, Channel to Beam, Height 3-3/16 Inches, Plate Width 3 Inches, Plate Length 2-3/8 Inches, Plate Thickness 13/16 Inch, Steel, For use with A-1200, B-1200, C-1200, A-1400, B-1400 and B-1402 Series Channels, PVC Coated Gray

U501-G

Clamp, Channel to Beam, Height 3-3/16 Inches, Plate Width 3 Inches, Plate Length 2-3/8 Inches, Plate Thickness 13/16 Inch, Steel, For use with A-1200, B-1200, C-1200, A-1400, B-1400 and B-1402 Series Channels, PVC Coated Gray
PVC Coated Steel I-beam Clamp, 1-3/8 Inch x 1-1/2 Inch Set Screw Included, Gray

U514-G

PVC Coated Steel I-beam Clamp, 1-3/8 Inch x 1-1/2 Inch Set Screw Included, Gray
PVC Coated Steel I-beam Clamp, 1-1/2 Inch x 1-1/2 Inch Set Screw Included, Gray

U514A-G

PVC Coated Steel I-beam Clamp, 1-1/2 Inch x 1-1/2 Inch Set Screw Included, Gray
PVC Coated Right Angle Beam Clamp, Pipe Size 1 Inch/27 Metric, Malleable Iron, Dark Gray

RA1-G

PVC Coated Right Angle Beam Clamp, Pipe Size 1 Inch/27 Metric, Malleable Iron, Dark Gray
PVC Coated Right Angle Beam Clamp, Pipe Size 4 Inch/103 Metric, Malleable Iron, Dark Gray

RA4-G

PVC Coated Right Angle Beam Clamp, Pipe Size 4 Inch/103 Metric, Malleable Iron, Dark Gray
PVC Coated Edge Clamp, Pipe Size 3/4 Inch/21 Metric, Malleable Iron, Dark Gray

EC3/4-G

PVC Coated Edge Clamp, Pipe Size 3/4 Inch/21 Metric, Malleable Iron, Dark Gray
PVC Coated Hanger Rod Beam Clamp, Jaw Opening 15/16 Inch/23.81 Millimeters, Load Rating 450 Pounds/204.12 Kilograms, Base 1 Inch x 1-1/4 Inch, Malleable Iron, Gray

500-G

PVC Coated Hanger Rod Beam Clamp, Jaw Opening 15/16 Inch/23.81 Millimeters, Load Rating 450 Pounds/204.12 Kilograms, Base 1 Inch x 1-1/4 Inch, Malleable Iron, Gray
