Contact for Pricing
Minimum Qty: 2
Multiplier: 2
*Contact for lower quantities*
Overview
- Designed for hazardous locations in petrochemical, oil & gas industries.
- Steel jacketed cable fitting for secure connections.
- Integral sealing chamber for simplified sealing.
- Disconnectable design requires minimal cable preparation.
- Accommodates cable jacket diameters from 0.525 to 0.650 inches with a 1/2 inch hub.
Specifications
Application | For Hazardous Locations |
Color | Red;Silver |
Material | Steel |
Size | 1/2 Inch |
Standard | CSA 23086 |
Type | Teck Cable Fittings |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.7000 L |
Package Weight (Metric) | 0.3180 kg |
372-G
PVC Coated Hub Connector, Hub Size 1 Inch, Maximum Wall Thickness 5/16 Inch, Steel Body with Electro-Zinc Plating, Steel Locknut, Gray
370-B
PVC Coated Hub Connector, Hub Size 1/2 Inch, Maximum Wall Thickness 5/16 Inch, Steel Body with Electro-Zinc Plating, Steel Locknut, Blue

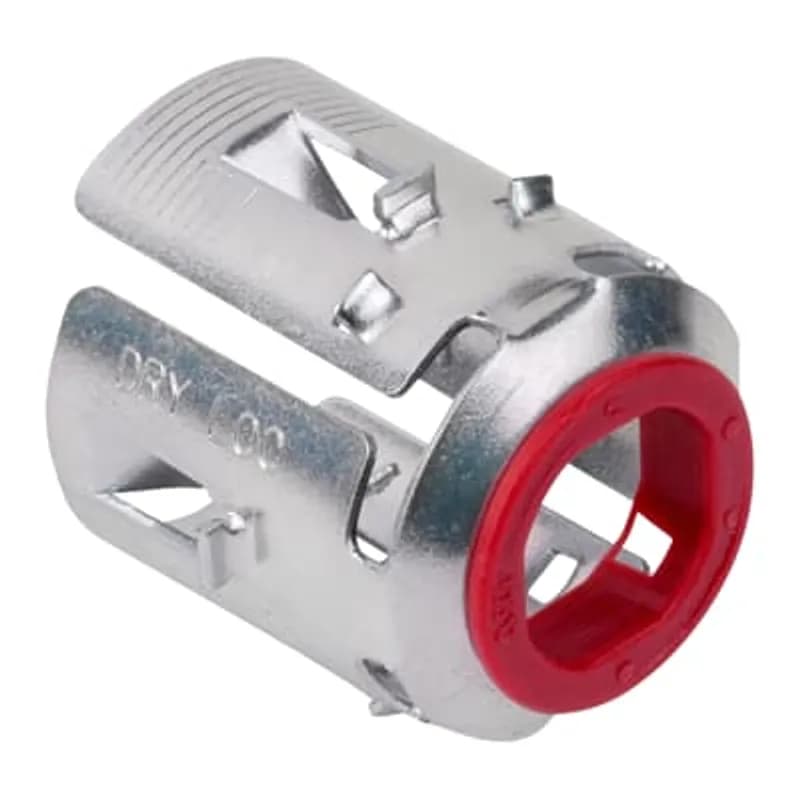

XC130-J25-4R
Steel Snap-In Fittings for MC cable, Size 1/2 Inch, Diameter 0.840 Inches, Length 1 Inch, Material Electro-Zinc Plated Steel, Accommodates the widest range of MC cable size in the industry - 14-2 to 10-3, Jar of 25

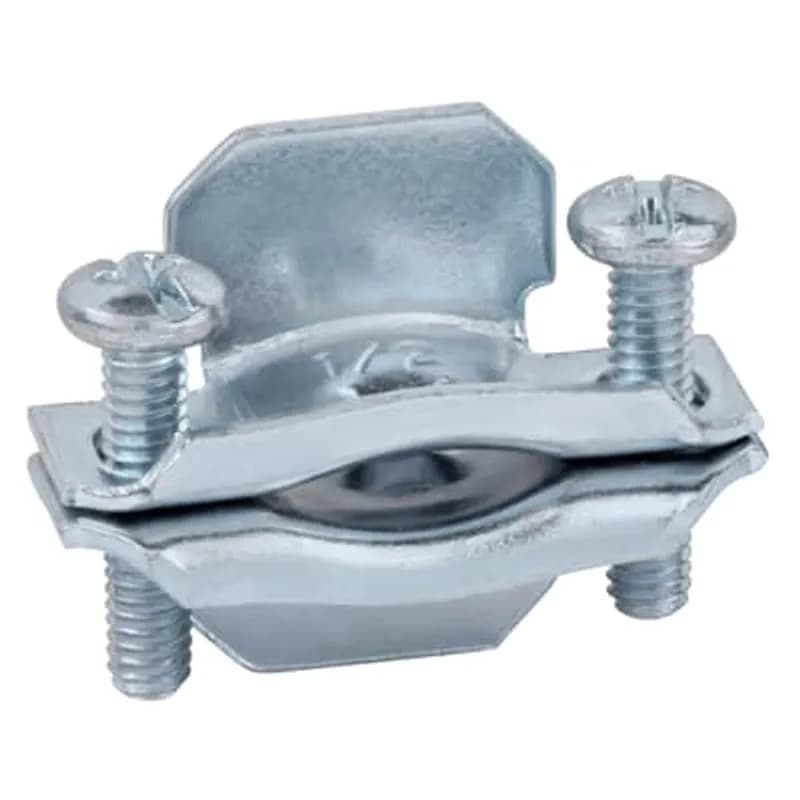

NC 850
Connector, Tilt-In, Size 1/2 Inch, Width 1.312 Inch, Depth 0.650, Screw Size 8-32 x 3/4 Inch, Electro-Galvanized Steel370TB-B
PVC Coated Insulated Hub Connector, Hub Size 1/2 Inch, Maximum Wall Thickness 5/16 Inch, Steel, BlueFrequently Asked Questions
What is the NPT thread size for STX250-475?
The STX250-475 has an NPT thread size of 2-1/2 inches.
What is the maximum sealing compound volume for STX250-475?
The maximum volume of sealing compound required for the STX250-475 is 147 cc.
What is the cable jacket diameter range for STX250-475?
The STX250-475 accommodates a cable jacket diameter range of 58.42 mm (2.300 in) minimum to 65.15 mm (2.565 in) maximum.
What is the cable armor diameter range for STX250-475?
The STX250-475 accommodates a cable armor diameter range of 55.63 mm (2.190 in) minimum to 63.12 mm (2.485 in) maximum.
Are there specific installation code requirements?
Yes, the product must be installed in accordance with all applicable national and local electrical codes.
What sealing compounds are required for installation?
The STX250-475PVC must be installed with either SC4-KIT-1 liquid compound or SC65 putty sealing compound, which are sold separately.
What cable types are compatible with this fitting?
This fitting is suitable for jacketed Teck and ACWU, armored control and instrument (ACIC Div2 locations), and Type MC jacketed corrugated metal clad cables (aluminum and steel).
What materials is the STX250-475PVC made from?
The fitting is made from copper-free aluminum, with a zinc-plated steel option also available. Both material options can have a PVC coating.
When should I use SC4-KIT-1 vs. SC65 sealing compound?
Use SC4-KIT-1 for shielded cables or cables with 5+ conductors. SC65 is for cables with a maximum of 4 conductors and is not recommended for shielded cables.
What is the operating temperature range?
The normal operating temperature range for the product is -40 to +90°C (-40 to +194°F).
How to Install STX Series Star Teck Cable Fittings
This guide provides comprehensive instructions for preparing cables and installing STX Series Star Teck fittings, including detailed procedures for both liquid (SC4-KIT-1) and putty (SC65) sealing compounds.
Estimated time: 2h
Tools needed:
Hacksaw, Screwdriver, Wire strippers, Wooden dowel
Supplies needed:
STX Series Cable Fitting, SC4-KIT-1 LIQUID SEALANT or SC65 PUTTY SEALANT, Fiber damming material (for liquid sealant), Gloves (for putty sealant), Damp cloth
- Verify Circuits are De-energized
WARNING: Risk of electrical shock. Before installing or performing maintenance, verify that all circuits are de-energized. Ensure power is completely off to prevent injury.
- Determine Working Length and Cut Armor
Determine the required length of conductors inside the enclosure. Remove a portion of the outer jacket to expose the cable armor. Carefully cut the armor using a hacksaw. CAUTION: Do not nick or cut the conductor insulation during this process.
- Trim Outer Jacket to Specification
Trim the outer jacket to adjust the exposed armor strip length as indicated in the product table for your specific STX fitting (e.g., 0.405 inches for STX050-462). This ensures proper sealing and fit.
- Feed Cable and Secure Gland Nut
Feed the prepared cable through the gland nut opening and push until the cable armor hits the internal end stop. Tighten the gland nut until an appropriate seal is obtained or to the maximum torque specified in the product table (e.g., 300 in-lbs for STX050-462). Ensure the cable remains centered for an optimal seal.
- Disassemble Fitting Components
Disassemble the hub from the body sub-assembly by loosening the union. Unscrew the sealing chamber from the body sub-assembly. These parts will be reassembled after compound application.
- Prepare Inner Cable Conductors
Trim the inner jacket to a length of 1/8 to 3/8 inches to expose the conductor bundle. If installing shielded data cables, additionally remove the outer (overall) shield carefully to avoid damaging inner shields, and remove any filler materials.
- Prepare for Sealing Compound Application
Choose your sealing compound: SC4-KIT-1 LIQUID SEALANT (for all power/shielded data cables) or SC65 PUTTY SEALANT (NOT for shielded cables or 5+ conductors). If using liquid, pack fiber damming material tightly into voids between conductors and body, spreading grounding conductor strands. If using putty, slightly spread insulated conductors and grounding conductor strands.
- Mix and Apply Sealing Compound
For Liquid (SC4-KIT-1): Screw the sealing chamber onto the body. Position vertically. Mix compound per package instructions and dispense into the chamber. Fill to the top (or half, wait 2 hrs, then fill rest for larger fittings). For Putty (SC65): Thoroughly mix putty until uniform blue. WARNING: Wear gloves. Apply putty around conductors, forming a plug. Slide chamber onto cable/compound, screw to body. Fill throat area, packing tightly with a wooden dowel.
- Clean Excess Compound and Allow to Set
CAUTION: Remove all excess compound material from outside the sealing chamber with a damp cloth. Do not use abrasive cleaners. Allow the compound to solidify/set for approximately 1 hour (or 2 hours for the second fill stage of large liquid fittings) before proceeding or disturbing conductors.
- Mount Hub and Final Assembly
Mount the hub in the desired location. Once the sealing compound is set, place the encapsulated assembly into the hub. Secure it in position by tightening the union until it bottoms (metal to metal contact). If using putty, repack compound tightly around conductors if needed.
