Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Overview
- 5 x 2 Inch trade size for nonmetallic ducts
- High-impact polystyrene construction for durability
- Snap-Loc design for quick and secure assembly
- Intermediate spacer with locking keyways
- Provides stability and consistent separation for duct systems
Specifications
Application | Concrete-Encased, Direct-Burial Note: Purchaser is responsible for installation design and determination of the appropriateness of the product for any specific application |
Color | Black |
Length | 7.69 inches |
Material | Non-Metallic |
Material Quality | Polystyrene |
Size | 5 x 2 |
Size | 5 x 2 inches |
Special Features | Snap-Loc Spacers provide a side dovetail rail-and-groove design enabling side-by-side interchangeability of conduit spacer sizes while maintaining horizontal stability |
Special Features | Side dovetail rail and groove design allows for side by side interchangeability of conduit spacer sizes while maintaining horizontal stability. Locking keyways incorporated into intermediate spacers eliminate the need for costly top spacers in each size. They provide for the use of a beaded strap that helps secure the top section of conduit. 1 and 2 inches Snap Loc reducers allow fixturing of 1 or 2 inches conduit inside larger spacers. The Snap Loc rebar holder helps provide stabilization on large banks of spacers |
Type | Snap-Loc Spacers & Accessories |
Type | Intermediate Spacer |
Width | 7.57 inches |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.380 L |
Package Weight (Metric) | 0.172 kg |
S289NLN
4 x 3 Inches Duct Spacer, High Impact Polystyrene Snap-Loc Intermediate Spacer For Use With Nonmetallic Ducts
S289PHN
5 x 1-1/2 Inches Duct Spacer, High Impact Polystyrene Snap-Loc Intermediate Spacer For Use With Nonmetallic Ducts

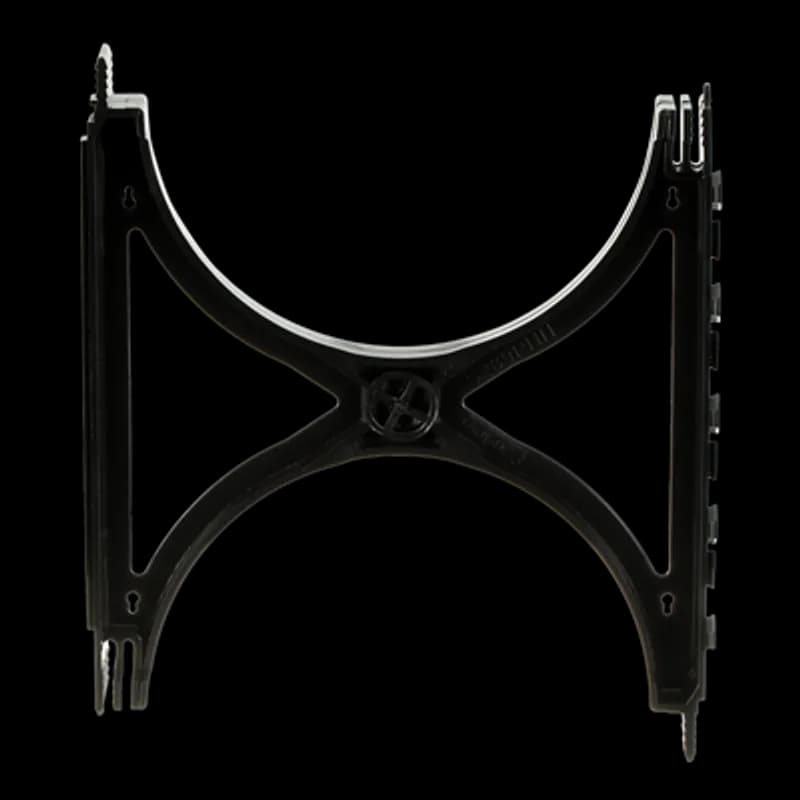

S289RHN
6 x 1-1/2 Inches Duct Spacer, High Impact Polystyrene Snap-Loc Intermediate Spacer For Use With Nonmetallic Ducts

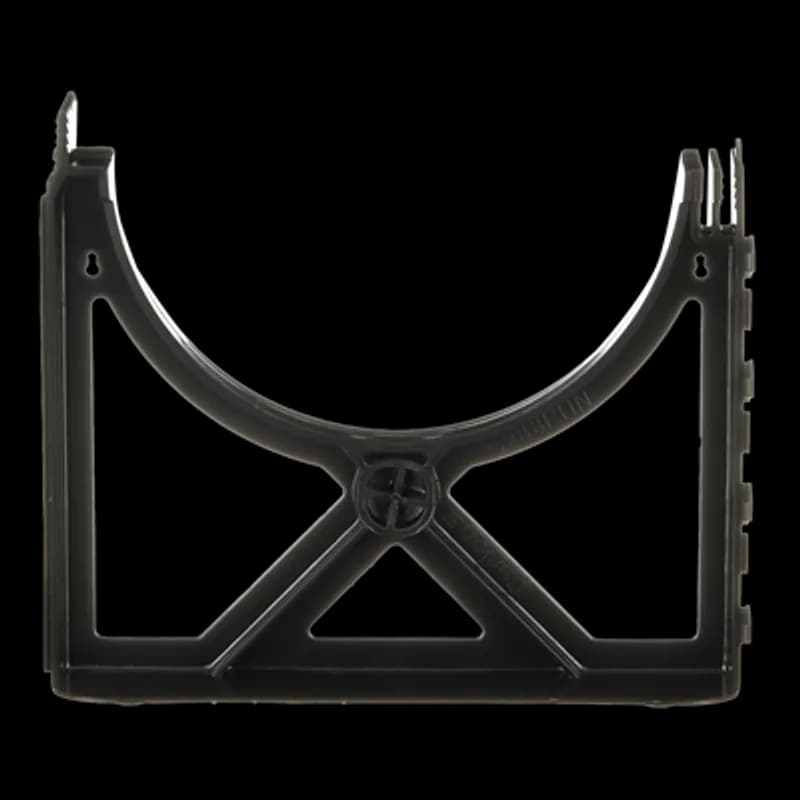

S288RHN
6 x 1-1/2 Inches Duct Spacer, High Impact Polystyrene Snap-Loc Base Spacer For Use With Nonmetallic Ducts
S289PLN
5 x 3 Inches Duct Spacer, High Impact Polystyrene Snap-Loc Intermediate Spacer For Use With Nonmetallic Ducts
S289LLN
3 x 3 Inches Duct Spacer, High Impact Polystyrene Snap-Loc Intermediate Spacer For Use With Nonmetallic Ducts
S289NJN
4 x 2 Inches Duct Spacer, High Impact Polystyrene Snap-Loc Intermediate Spacer For Use With Nonmetallic Ducts

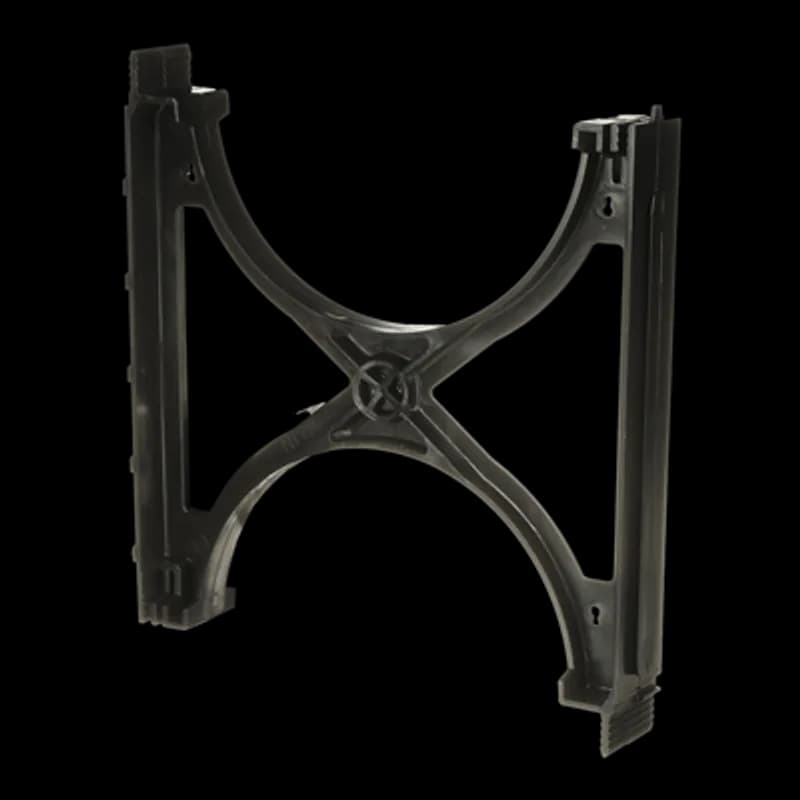

S289RJN
6 x 2 Inches Duct Spacer, High Impact Polystyrene Snap-Loc Intermediate Spacer For Use With Nonmetallic Ducts
S288RJN
6 x 2 Inches Duct Spacer, High Impact Polystyrene Snap-Loc Base Spacer For Use With Nonmetallic Ducts
S288PJN
5 x 2 Inches Duct Spacer, High Impact Polystyrene Snap-Loc Base Spacer For Use With Nonmetallic Ducts
S288PHN
5 x 1-1/2 Inches Duct Spacer, High Impact Polystyrene Snap-Loc Base Spacer For Use With Nonmetallic Ducts
S288PLN
5 x 3 Inches Duct Spacer, High Impact Polystyrene Snap-Loc Base Spacer For Use With Nonmetallic DuctsFrequently Asked Questions
Who is responsible for installation design?
The purchaser is responsible for installation design and determining the product's appropriateness for any specific application.
How is installation of the product regulated?
The product must be installed in accordance with applicable national and local electrical codes.
What are the dimensions of the S289PJN spacer?
The S289PJN spacer has dimensions of A=7.690 in, B (Radius)=2.845 in, and C=7.57 in.
What type of ducts is S289PJN compatible with?
The S289PJN intermediate spacer is designed for use with non-metallic ducts.
What are the applications for S289PJN?
The S289PJN duct spacer is suitable for Concrete-Encased and Direct-Burial applications.
What material is the S289PJN made from?
The S289PJN duct spacer is made from High Impact Polystyrene.
Who is responsible for installation design?
The purchaser is responsible for installation design and determining the product's appropriateness for any specific application.
How is installation of the product regulated?
The product must be installed in accordance with applicable national and local electrical codes.
What are the dimensions of the S289PJN spacer?
The S289PJN spacer has dimensions of A=7.690 in, B (Radius)=2.845 in, and C=7.57 in.
What type of ducts is S289PJN compatible with?
The S289PJN intermediate spacer is designed for use with non-metallic ducts.
