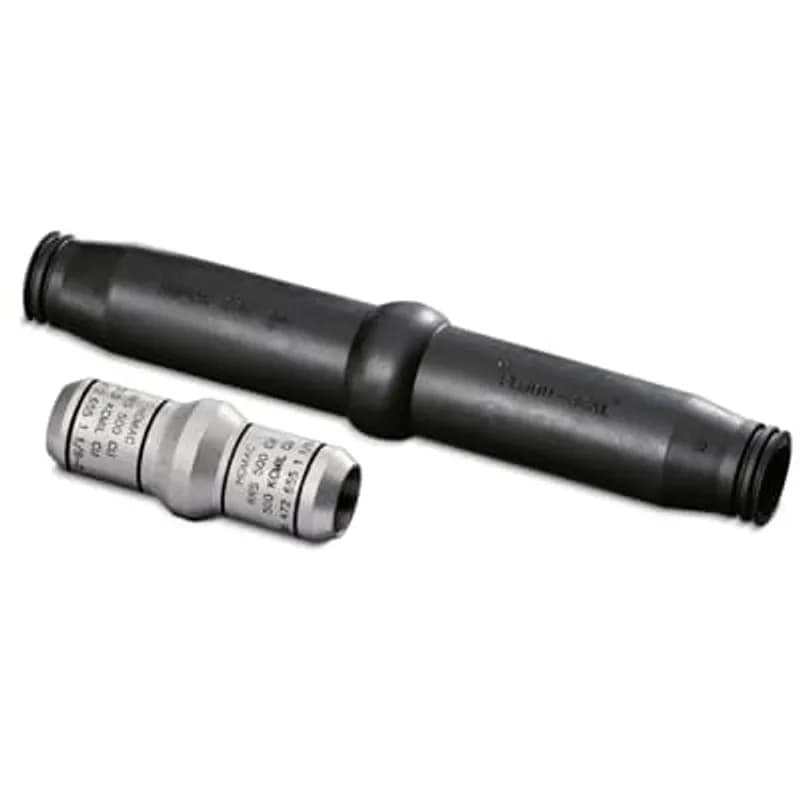

ABB - Installation Products RRK 500 CU - Copper Compression Splice Kits, Wire Range 500, Connector Length 6-3/4 Inches, Insulator Length 10-3/4 Inches, Dies 840,tx,76,249,11a, No Color Code. For Copper Conductors Only.
ABB - Installation Products

RRK 500 CU

UPC: 783786053223

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Overview

The ABB RRK 500 CU Copper Compression Splice Kit is engineered for reliable and secure electrical connections within industrial applications. This kit is specifically designed for use with copper conductors, ensuring optimal conductivity and long-term performance. The RRK 500 CU features a robust copper construction, providing excellent electrical and mechanical integrity. With a wire range accommodating 500 AWG copper conductors, this splice kit is suitable for high-capacity power distribution and transmission systems. The connector itself measures 6-3/4 inches in length, offering ample surface area for a secure compression. The insulator length extends to 10-3/4 inches, providing crucial electrical isolation and protection. This splice kit utilizes specific die sets, including 840, TX, 76, 249, and 11A, ensuring precise crimping for a permanent and low-resistance connection. The absence of a color code indicates a universal application for copper conductors within the specified range. Manufactured by ABB - Installation Products, the RRK 500 CU (SKU: RRK 500 CU) adheres to stringent quality standards. Its compression connection type guarantees a strong mechanical bond, minimizing the risk of loosening due to vibration or thermal cycling. This product is ideal for utility, industrial, and commercial installations where dependable power connections are paramount. The UNSPSC code for this product is 39121449, categorizing it under electrical connectors and accessories. Key specifications include: Material: Copper, Size: 500 AWG, Connection Type: Compression, Series: RRK. The connector length is 6-3/4 inches, and the insulator length is 10-3/4 inches. Compatible die sets are 840, TX, 76, 249, and 11A. This splice kit is exclusively for copper conductors.
  • Designed for 500 AWG copper conductors
  • Robust copper construction for superior conductivity
  • Compression connection type for secure, low-resistance joints
  • Connector length: 6-3/4 inches; Insulator length: 10-3/4 inches
  • Compatible with dies: 840, TX, 76, 249, 11A

Specifications

Application
Dissipate Heat and Make Perfect Watertight Seals
Color
No Color Code
Conductor Range
500 kcmil
Connection
Compression
Insulation
Yes
Material
Copper Connector, Rubber Cover
Number Of Conductors
2
Size
6-3/4 inch Connector, 10-3/4 inch Cover
Special Features
Prefilled with Oxide Inhibitor to Prevent Oxidation an Keep Out Moisture. Rubber Flood-Seal Insulating Cover fits Snugly for Maximum Heat Dissipation, No Tape Required. Compact Size. Radiating Rib Design Dissipated Heat, Centers the Watertight Insulating Cover and Seals Perfectly Every Time
Standard
ANSI C119.4
Type
Compression Splice Service Entrance Insulated
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0100 L
Package Weight (Metric)
0.4580 kg

Frequently Asked Questions

What type of conductors is this splice kit for?

This splice kit is exclusively designed for copper conductors.

What is the wire range for this compression splice kit?

The RRK 500 CU is designed for a wire range of 500 AWG copper conductors.

What are the dimensions of the connector and insulator?

The connector length is 6-3/4 inches, and the insulator length is 10-3/4 inches.

What die sets are compatible with the RRK 500 CU?

Compatible die sets include 840, TX, 76, 249, and 11A.

What is the connection type of this ABB splice kit?

This is a compression connection type splice kit.
