ABB - Installation Products PF5SN - DB-60 Sweep Conduit Fitting, Size 4 Inches, Bend Radius 150 Inches, Bend Angle 22-1/2 Degrees, Material Non-Metallic
ABB - Installation Products

PF5SN

UPC: 034481049173

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Overview

The ABB PF5SN DB-60 Sweep Conduit Fitting, SKU PF5SN, is a non-metallic fitting engineered for reliable electrical conduit installations. This fitting is designed with a 4-inch trade size, a substantial 150-inch bend radius, and a precise 22-1/2 degree bend angle. Its non-metallic construction offers inherent corrosion resistance, making it suitable for environments where metallic fittings might degrade. The generous bend radius of 150 inches facilitates smooth and efficient conduit routing, minimizing stress on the conduit and protecting the enclosed wiring. This feature is critical for complex installations or when navigating around obstacles, ensuring the integrity of the electrical system. The 22.5-degree sweep angle allows for gradual directional changes, which is often preferred in industrial and commercial settings to maintain conduit flow and ease of pulling wires. Engineered for straightforward installation, the PF5SN fitting simplifies the bending and routing process, contributing to reduced labor time and overall project costs. It is an ideal component for electrical infrastructure in manufacturing facilities, commercial buildings, and other demanding applications where durability and long-term performance are paramount. Trust ABB Installation Products for dependable solutions that enhance the safety and efficiency of your electrical projects. This fitting is compatible with non-metallic conduit systems requiring precise directional control and smooth transitions. Its robust, non-metallic composition ensures longevity and resistance to chemical exposure and moisture, common challenges in industrial environments. The 4-inch diameter accommodates substantial cable bundles, while the specific bend characteristics of the DB-60 series are optimized for ease of wire pulling and maintaining conduit shape under load. The PF5SN is a key component for any professional seeking to implement a resilient and efficient non-metallic conduit system.
  • ABB PF5SN DB-60 Sweep Conduit Fitting
  • 4-inch trade size
  • 150-inch bend radius
  • 22-1/2 degree bend angle
  • Non-metallic material for corrosion resistance

Specifications

Color
Gray
Color
Gray;Grey
Depth
66.99 in
Length
66.99 in
Material
PVC
Material
Non-Metallic
Material Quality
Polyvinyl Chloride (PVC)
Outside Diameter
4.5 in
Outside Diameter
114.3 mm
Series
DB-60 Sweep Conduit Fitting
Size
4 Inches
Trade Size
4 Inches
Trade Size
4
Type
DB-60 Sweeps
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
7.650 L
Package Weight (Metric)
3.470 kg
Schedule 80 Elbow, Size 4 Inches, Bend Radius 48 Inches, Bend Angle 90 Degrees, Material PVC, Belled End

UB9HNB

Schedule 80 Elbow, Size 4 Inches, Bend Radius 48 Inches, Bend Angle 90 Degrees, Material PVC, Belled End
Schedule 80 Elbow, Size 4 Inches, Bend Radius 48 Inches, Bend Angle 90 Degrees, Material PVC

UB9HN

Schedule 80 Elbow, Size 4 Inches, Bend Radius 48 Inches, Bend Angle 90 Degrees, Material PVC
Schedule 80 Elbow, Size 4 Inches, Bend Radius 36 Inches, Bend Angle 90 Degrees, Material PVC

UB9FN

Schedule 80 Elbow, Size 4 Inches, Bend Radius 36 Inches, Bend Angle 90 Degrees, Material PVC
Schedule 80 Elbow, Size 4 Inches, Bend Radius 36 Inches, Bend Angle 90 Degrees, Material PVC, Belled End

UB9FNB

Schedule 80 Elbow, Size 4 Inches, Bend Radius 36 Inches, Bend Angle 90 Degrees, Material PVC, Belled End

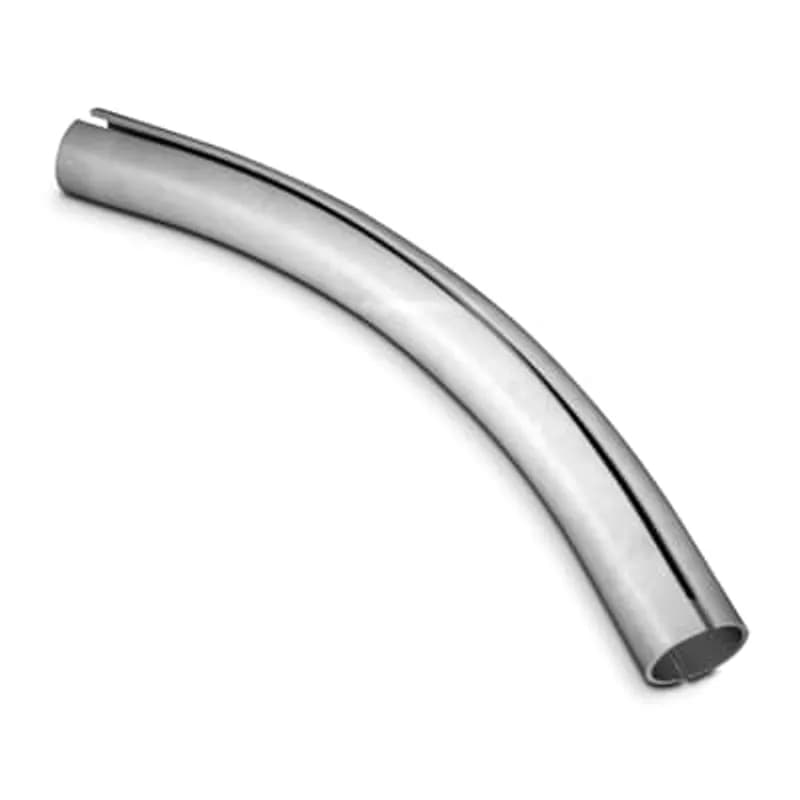

Schedule 40 Elbow, Size 4 Inches, Bend Radius 60 Inches, Bend Angle 45 Degrees, Material PVC, Split Duct
