ABB - Installation Products NSBV-N027/01 - Swivel Connector 90 Degree Curved Elbow, NPT Thread - 1/2 Inch, Fits to Conduit Size NW17, IP68, Polyamide 6 with Anodized Aluminum Threads, Color Black
ABB - Installation Products

NSBV-N027/01

UPC: 786210160054

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB NSBV-N027/01 Swivel Connector is engineered for superior performance in demanding industrial environments. This 90-degree curved elbow connector facilitates efficient and secure conduit routing, offering exceptional durability and protection. Constructed from high-grade Polyamide 6, known for its excellent mechanical strength and resistance to chemicals and abrasion, combined with anodized aluminum threads for enhanced corrosion resistance and superior thread integrity. The connector features a 1/2-inch NPT thread, ensuring broad compatibility with standard industrial fittings, and is designed to perfectly fit NW17 conduit sizes, providing a seamless integration into your existing infrastructure. Engineered for extreme conditions, the NSBV-N027/01 boasts an impressive IP68 rating. This signifies complete protection against dust ingress and the ability to withstand prolonged immersion in water, making it an ideal choice for applications exposed to harsh weather, washdowns, or high-moisture environments. The innovative swivel design of this elbow connector significantly simplifies installation, allowing for precise alignment and reducing stress on the conduit system. This flexibility is crucial in complex routing scenarios, saving valuable time and labor during setup and maintenance. ABB's commitment to quality is evident in the robust construction and reliable performance of this swivel connector. Whether deployed in manufacturing plants, outdoor infrastructure, or commercial facilities, the NSBV-N027/01 delivers dependable connectivity. Its black color offers a discreet aesthetic suitable for various industrial settings. Trust ABB Installation Products for solutions that enhance safety, efficiency, and longevity in your critical electrical installations. The SKU NSBV-N027/01 represents a commitment to robust, reliable, and high-performance connection solutions.
  • 90-Degree Curved Elbow Swivel Connector for flexible conduit routing
  • 1/2 Inch NPT Thread Size for broad compatibility with industrial fittings
  • Designed to fit NW17 Conduit sizes for seamless integration
  • IP68 Rated for superior protection against dust and water ingress
  • Durable construction: Polyamide 6 body with Anodized Aluminum Threads

Specifications

Application
For Applications with High Technical Requirements, Mainly In Machine Building
Color
Black
Declaration of Conformity - CE
9AKK107680A0674
Material
High-Grade Formulated Polyamide/Nylon 6, Thread and Integrated Swivel Adapter Made from Anodized Aluminum
Material Quality
High-Grade Formulated Polyamide/Nylon 6, Thread and Integrated Swivel Adapter Made from Anodized Aluminum
Size
1/2 Inch NPT
Trade Size
NW17
Type
90 Degree Connector
Package Dimensions (L x W x H)
1 IN x 1 IN x 1 IN
Package Dimensions (L x W x H)
2.54 cm x 2.54 cm x 2.54 cm
Package Weight (Imperial)
0.200 L
Package Weight (Metric)
0.091 kg
VW Connector 90 Degree Elbow, PG Thread for IP68 - Thread PG 48, Fits to Conduit Size NW/Metric 48/50, Color Black

BVWV-P488

VW Connector 90 Degree Elbow, PG Thread for IP68 - Thread PG 48, Fits to Conduit Size NW/Metric 48/50, Color Black

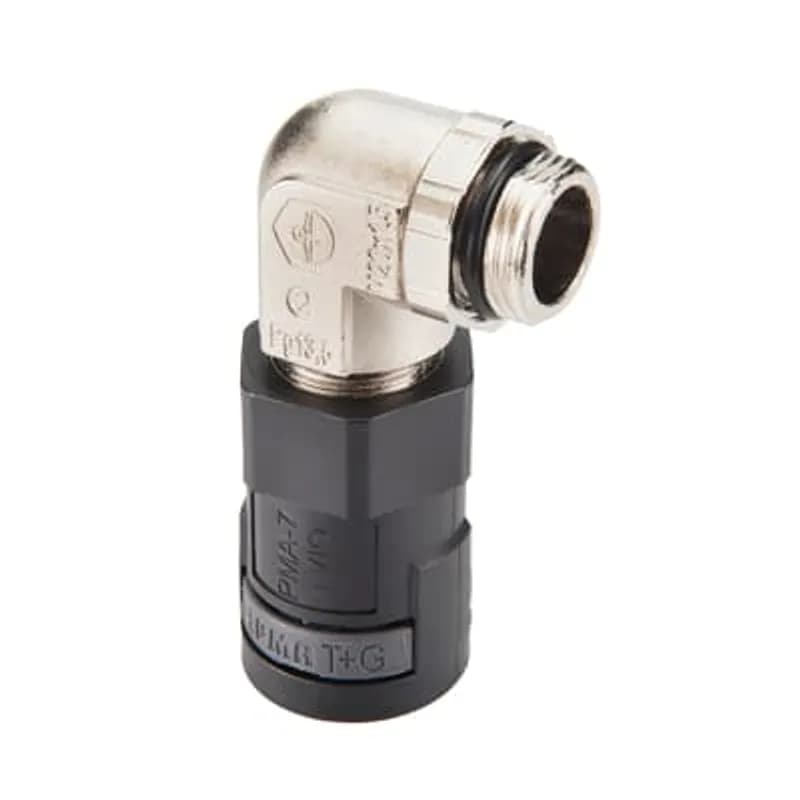

VWZ Connector 90 Degree Elbow, Metric Metal Thread with Strain Relief IP68 - Tread M16x1.5, Conduit Size NW 10, Without Sealing Insert, Range 4.0-6.5, Color Black

NVWZ-M160R/P

VWZ Connector 90 Degree Elbow, Metric Metal Thread with Strain Relief IP68 - Tread M16x1.5, Conduit Size NW 10, Without Sealing Insert, Range 4.0-6.5, Color Black

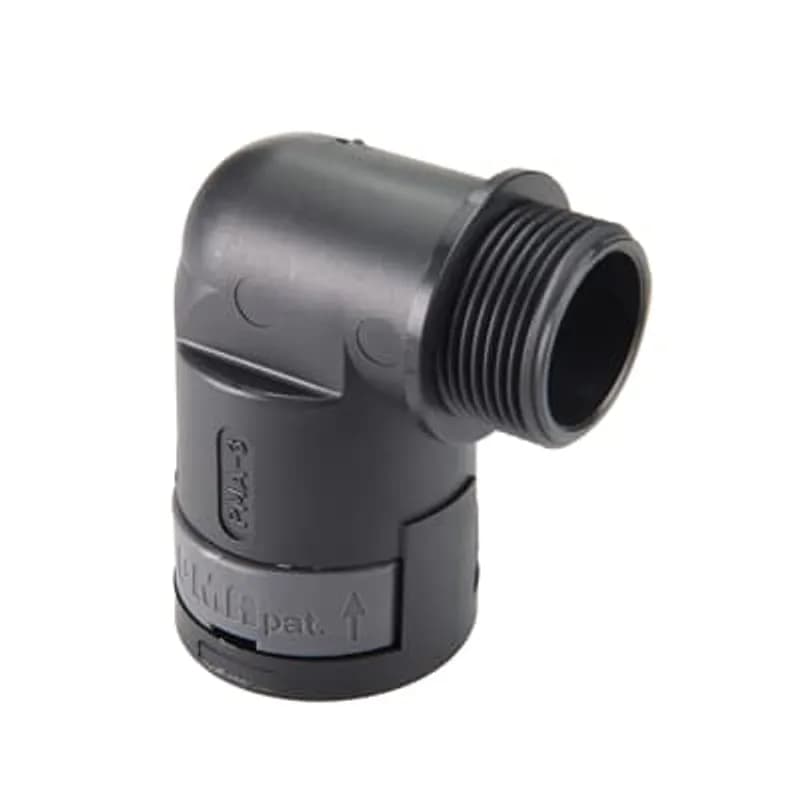

VW Connector 90 Degree Elbow, PG Thread for IP68 - Thread PG 11, Fits to Conduit Size NW/Metric 10/12, Color Black

BVWV-P110

VW Connector 90 Degree Elbow, PG Thread for IP68 - Thread PG 11, Fits to Conduit Size NW/Metric 10/12, Color Black

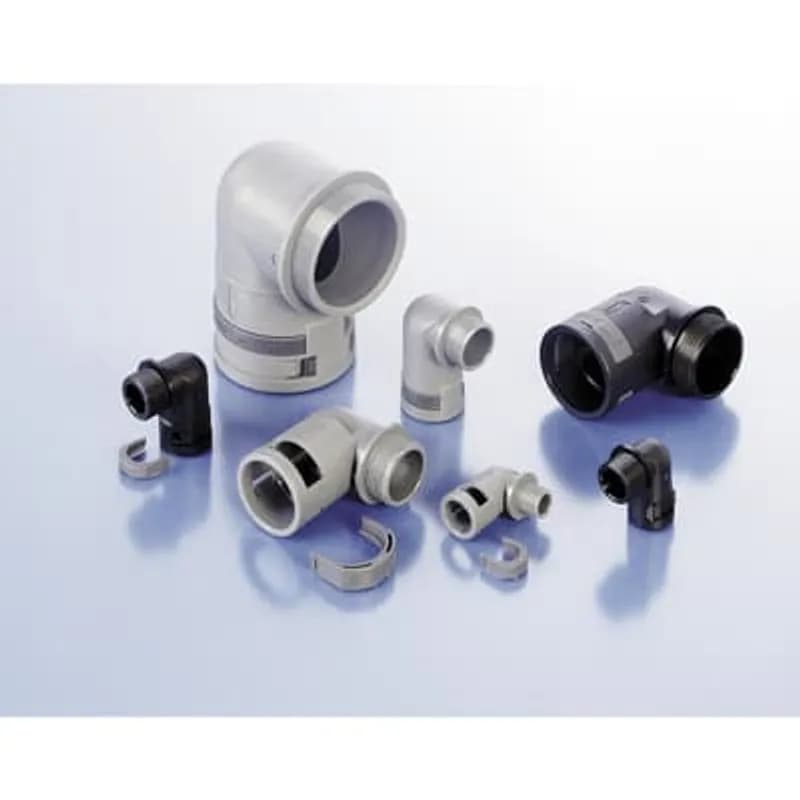

VW Connector 90 Degree Elbow, PG Thread for IP68 - Thread PG 7, Fits to Conduit Size NW/Metric 7/10, Color Black

BVWV-P07M

VW Connector 90 Degree Elbow, PG Thread for IP68 - Thread PG 7, Fits to Conduit Size NW/Metric 7/10, Color Black
VW Connector 90 Degree Elbow, PG Thread for IP68 - Thread PG 13.5, Fits to Conduit Size NW/Metric 12/16, Color Black

BVWV-P132

VW Connector 90 Degree Elbow, PG Thread for IP68 - Thread PG 13.5, Fits to Conduit Size NW/Metric 12/16, Color Black

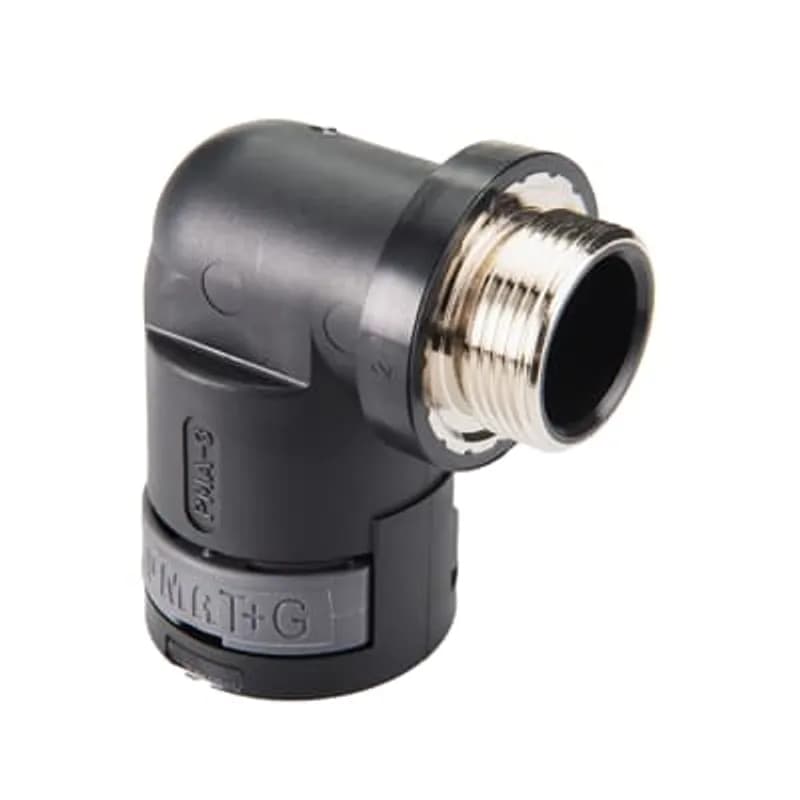

VWV Connector 90 Degree Elbow, PG Metal Thread IP68 - Thread 9, Fits to Conduit Size NW/Metric 10/12, Color Black

NVWV-P090

VWV Connector 90 Degree Elbow, PG Metal Thread IP68 - Thread 9, Fits to Conduit Size NW/Metric 10/12, Color Black

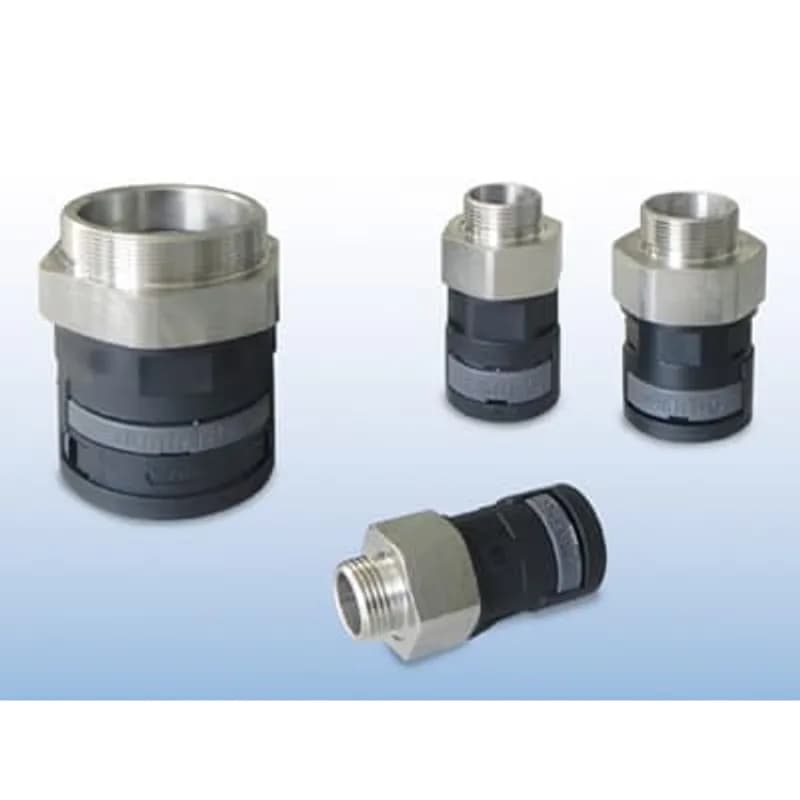

Swivel Connector, Straight, NPT Thread - 1/2 Inch, Fits to Conduit Size NW12, IP68, Polyamide 6 with Anodized Aluminum Threads, Color Black
