ABB - Installation Products M25M20M/6 - MR Reducer, Brass, Metric Thread, Hexagonal - Thread Inside Metric M20x1.5, Thread Outside Metric M25x1.5
ABB - Installation Products

M25M20M/6

UPC: 786209960665

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB M25M20M/6 MR Reducer is a precision-engineered brass fitting designed for seamless thread transitions in industrial, commercial, and mechanical systems. Manufactured by ABB - Installation Products, this high-quality reducer ensures reliable, leak-proof connections in demanding environments where corrosion resistance and durability are critical. Crafted from premium brass, the M25M20M/6 features a hexagonal design for easy installation and removal, making it ideal for applications requiring frequent adjustments or maintenance. Key specifications include an external metric M25x1.5 thread and an internal metric M20x1.5 thread, ensuring compatibility with a wide range of metric piping and tubing systems. The robust construction of this reducer provides exceptional resistance to corrosion, pressure, and mechanical stress, making it suitable for use in HVAC, plumbing, and industrial fluid or gas transfer systems. Its precise threading guarantees a secure fit, reducing the risk of leaks and system failures. Applications for the ABB M25M20M/6 MR Reducer span across multiple industries, including: - Industrial machinery and equipment - HVAC and refrigeration systems - Plumbing and water distribution networks - Chemical processing and instrumentation - Automotive and aerospace systems The reducer’s hexagonal shape simplifies torque application during installation, while its compact design allows for easy integration into tight spaces. As part of ABB’s trusted line of installation products, the M25M20M/6 meets stringent quality standards, ensuring long-term performance and reliability. Whether you’re upgrading existing systems or designing new installations, this brass reducer delivers the precision and durability required for critical applications.
  • External metric M25x1.5 thread and internal metric M20x1.5 thread for precise connections
  • Hexagonal design for easy installation and torque application
  • Premium brass construction ensures corrosion resistance and durability
  • Compact size for integration into tight spaces
  • Suitable for industrial, HVAC, plumbing, and mechanical applications

Specifications

Application
For Reduction of an Existing Thread
Color
Metallic
Connection
M25 to M20
Declaration of Conformity - CE
9AKK107680A0674
Material
Nickel Plated Brass
Size
M25 to M20
Temperature Rating
-60 to +200 C
Temperature Rating, Maximum
392 F
Temperature Rating, Maximum
200 C
Temperature Rating, Minimum
-76 F
Temperature Rating, Minimum
-60 C
Type
Conduit Reducer with Hexagonal Form
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.090 L
Package Weight (Metric)
0.041 kg
Nickel-Plated Brass Hexagonal Reducer - Thread Size Outside M40x1.5, Thread Size Inside PG29

M40PG29M

Nickel-Plated Brass Hexagonal Reducer - Thread Size Outside M40x1.5, Thread Size Inside PG29

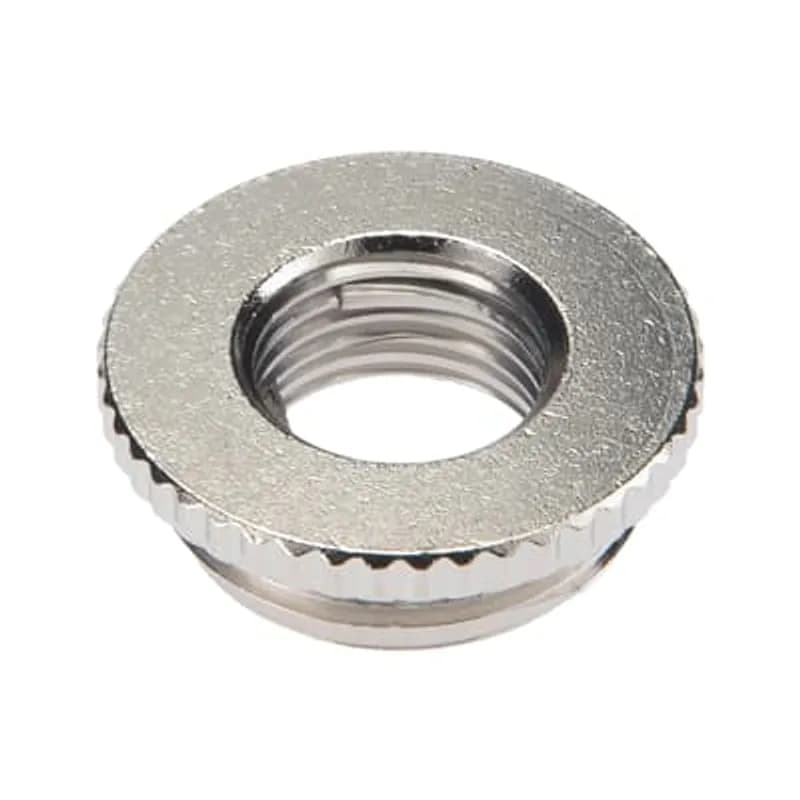

ME Enlarger, Brass, Metric Thread - Thread Outside Metric M12x1.5 Length 5.0mm, Thread Inside Metric M16x1.5 Length 7.00mm, Wrench Size 18

M12M16M

ME Enlarger, Brass, Metric Thread - Thread Outside Metric M12x1.5 Length 5.0mm, Thread Inside Metric M16x1.5 Length 7.00mm, Wrench Size 18
MR Reducer, Brass, Metric Thread, Hexagonal - Thread Inside Metric M40x1.5, Thread Outside Metric M50x1.5

M50M40M/6

MR Reducer, Brass, Metric Thread, Hexagonal - Thread Inside Metric M40x1.5, Thread Outside Metric M50x1.5

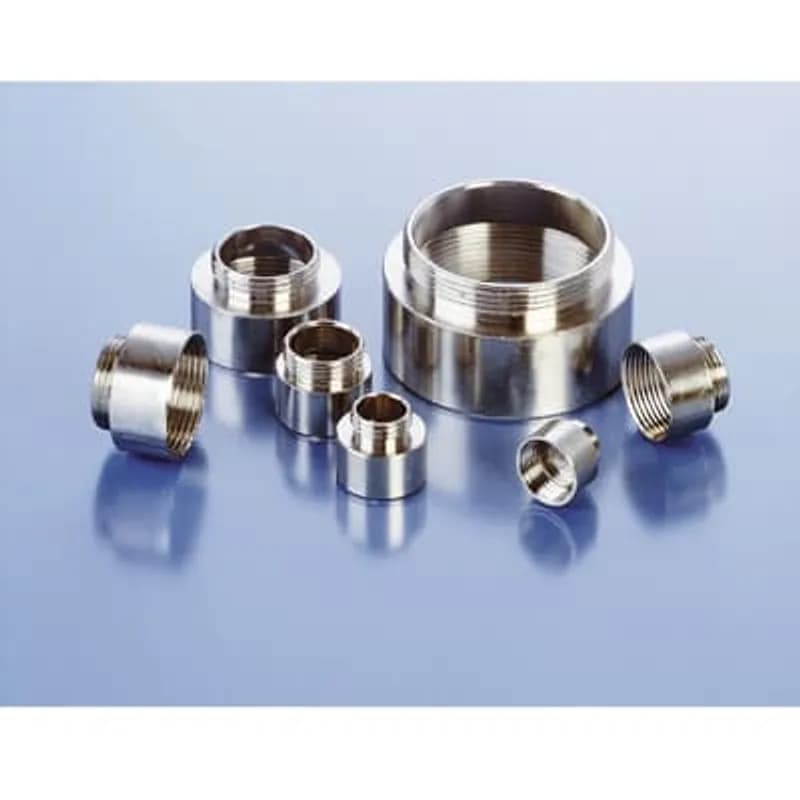

Brass ME Enlarger, PG - Thread Outside PG 29.0 Length 8.0mm, Thread Inside PG 36.0 Length 12.0mm

2936M

Brass ME Enlarger, PG - Thread Outside PG 29.0 Length 8.0mm, Thread Inside PG 36.0 Length 12.0mm
MR Reducer, Brass, Metric Thread, Standard - Thread Inside Metric M12x1.5, Thread Outside Metric M16x1.5

M16M12M

MR Reducer, Brass, Metric Thread, Standard - Thread Inside Metric M12x1.5, Thread Outside Metric M16x1.5
MR Reducer, Brass, Metric Thread, Standard - Thread Inside Metric M25x1.5, Thread Outside Metric M40x1.5

M40M25M

MR Reducer, Brass, Metric Thread, Standard - Thread Inside Metric M25x1.5, Thread Outside Metric M40x1.5

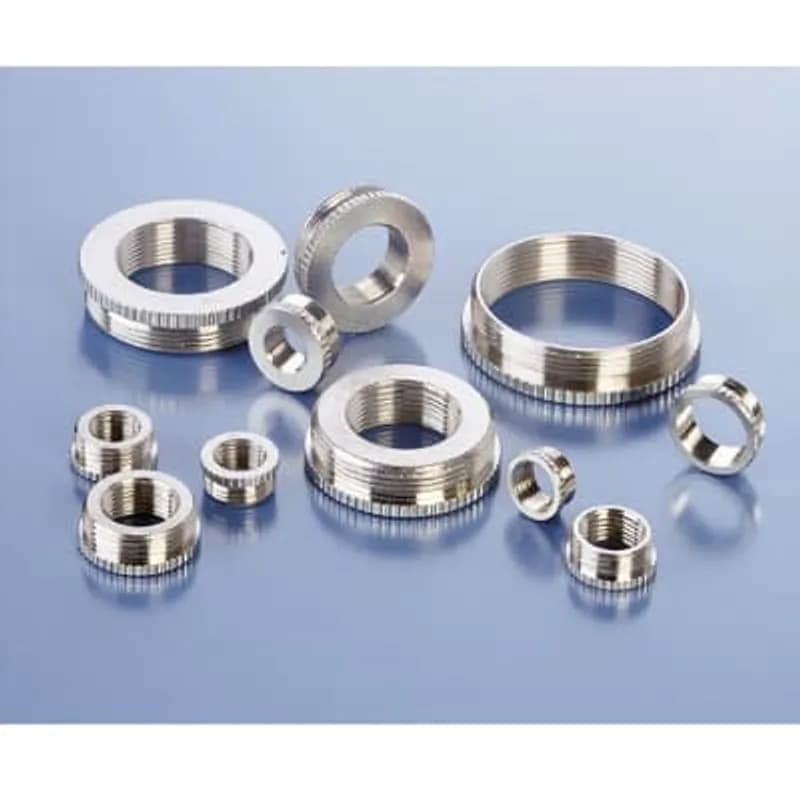

Brass MR Reducer, PG - Thread Outside PG 11.0 Length 6mm, Thread Inside PG 7.0
