ABB - Installation Products LT804 - Connector, Insulated Straight, Conduit Size 1-1/4 Inch, Length 2.59 Inches, Thread Length 0.69 Inch, Width 2.44 Inches, Die Cast Zinc
ABB - Installation Products

LT804

UPC: 785991907988

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 40

Multiplier: 40

*Contact for lower quantities*

Overview

The ABB LT804 Insulated Straight Connector (SKU: LT804) is a robust electrical conduit fitting manufactured by ABB Installation Products, designed for secure and insulated connections in industrial applications. Constructed from durable die-cast zinc, this connector offers excellent mechanical strength and corrosion resistance, ensuring long-term reliability in challenging environments. It is specifically designed for 1-1/4 inch conduit sizes, providing a precise fit for standard electrical conduit systems. The straight configuration simplifies installation and alignment, making it suitable for straightforward conduit runs. The integrated insulation protects wiring and personnel from electrical hazards, enhancing safety and compliance with electrical codes. With dimensions including a length of 2.59 inches, a width of 2.44 inches, and a thread length of 0.69 inches, the LT804 is engineered for efficient space utilization within electrical enclosures and conduit pathways. This connector is ideal for use in manufacturing plants, commercial buildings, and industrial facilities where dependable electrical infrastructure is paramount. It aligns with the quality and performance standards expected from ABB Installation Products, a trusted provider of electrical components. The die-cast zinc material ensures a solid and dependable connection, while the insulated design adds a critical layer of safety for electrical installations. Its straightforward design facilitates quick and easy assembly, reducing installation time and labor costs. The LT804 is a key component for maintaining the integrity and safety of electrical systems in demanding industrial settings, ensuring efficient power distribution and control.
  • Durable die-cast zinc construction for long-lasting performance
  • Designed for 1-1/4 inch conduit size
  • Straight configuration for easy installation and alignment
  • Insulated design for enhanced electrical safety
  • Ideal for industrial and commercial electrical installations

Specifications

Connection
Threaded
Material
Zinc Die Cast
Material
Die Cast Zinc
Size
1-1/4 Inch
Standard
UL E23018
Type
Connectors-Straight
Package Dimensions (L x W x H)
7.4 IN x 5.3 IN x 3.6 IN
Package Dimensions (L x W x H)
18.796 cm x 13.462 cm x 9.144 cm
Package Weight (Imperial)
0.590 L
Package Weight (Metric)
0.268 kg
Connector, Insulated Straight, Conduit Size 1 Inch, Length 2.28 Inch, Thread Length 0.63 Inch, Width 1.75 Inch, Die Cast Zinc

LT 803

Connector, Insulated Straight, Conduit Size 1 Inch, Length 2.28 Inch, Thread Length 0.63 Inch, Width 1.75 Inch, Die Cast Zinc
Connector, Straight, Conduit Size 3/4 Inch, Length 2.03 Inch, Thread Length 0.56 Inch, Width 1.44 Inch, Die Cast Zinc

LT 202

Connector, Straight, Conduit Size 3/4 Inch, Length 2.03 Inch, Thread Length 0.56 Inch, Width 1.44 Inch, Die Cast Zinc

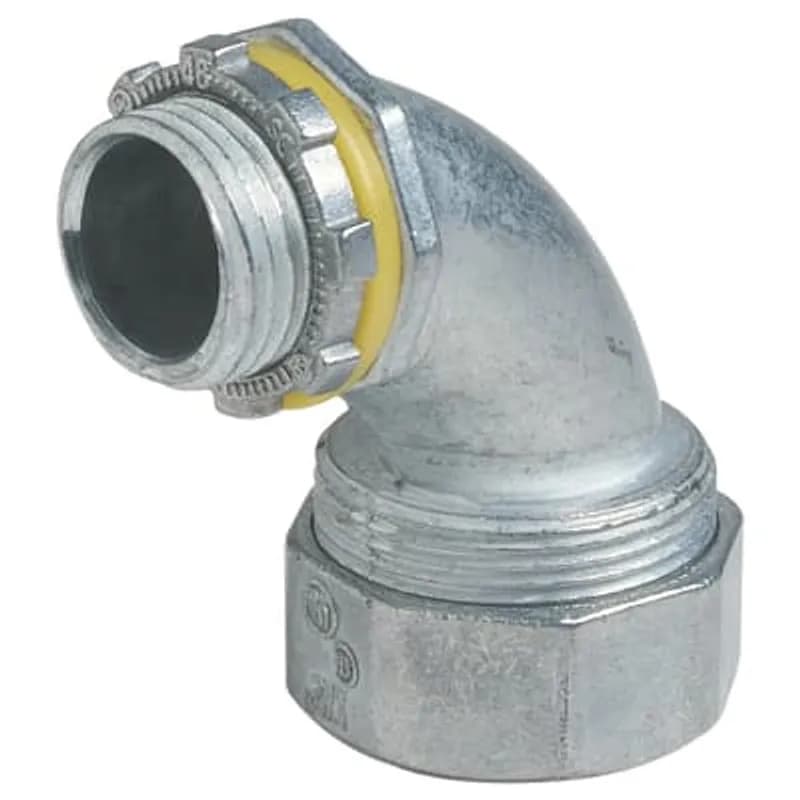

Connector, 90 Degree, Conduit Size 1/2 Inch, Height 2.00 Inches, Length 1.41 Inch, Die Cast Zinc, Sold by Each

LT291-1

Connector, 90 Degree, Conduit Size 1/2 Inch, Height 2.00 Inches, Length 1.41 Inch, Die Cast Zinc, Sold by Each

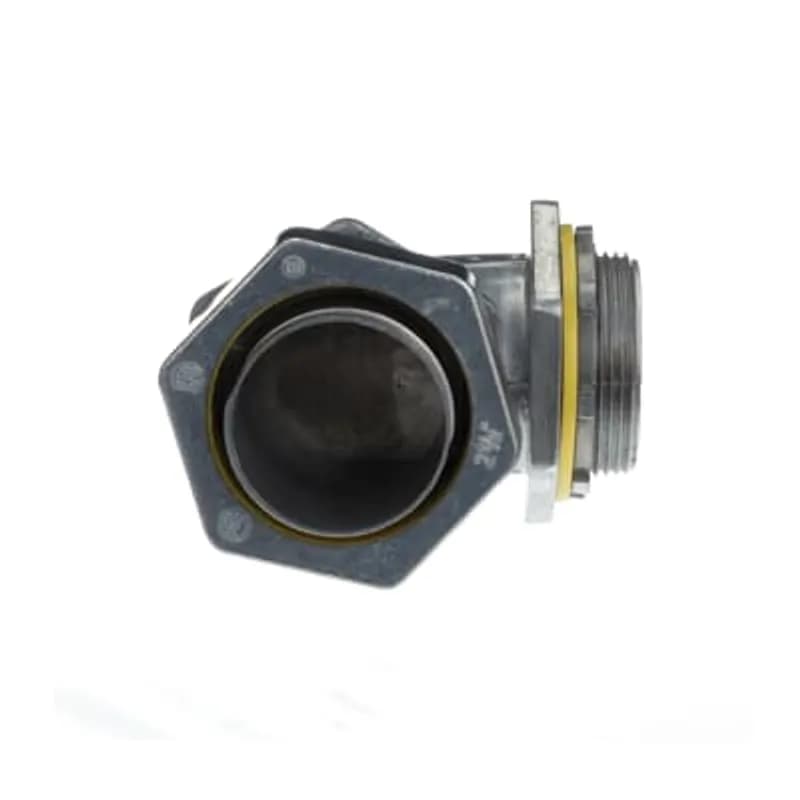

Connector, 90 Degree, Conduit Size 2-1/2 Inches, Height 5.03 Inches, Length 3.72 Inches, Die Cast Zinc
