Contact for Pricing

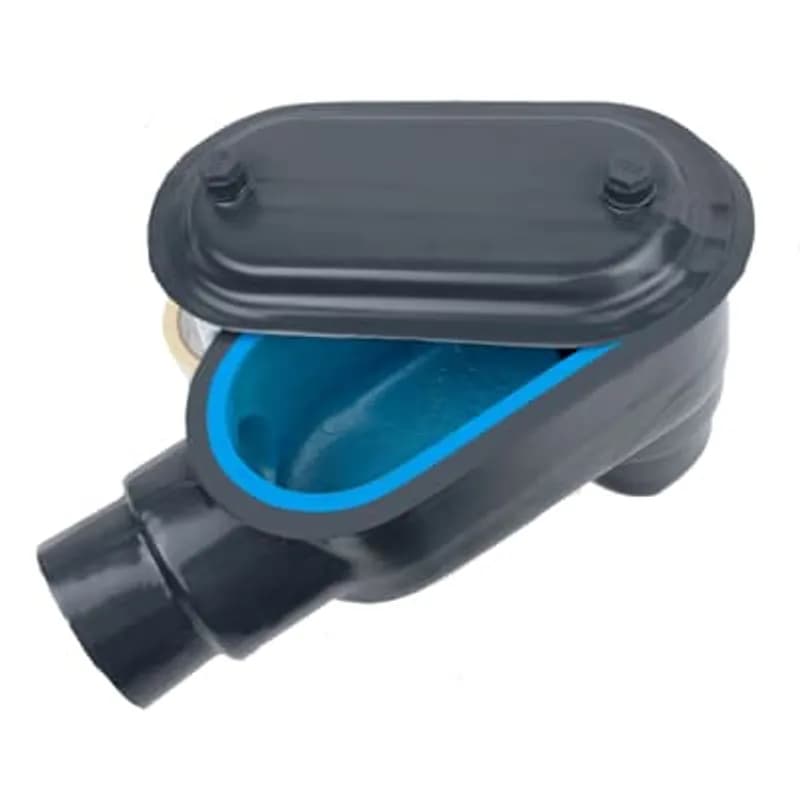

Overview
- Robust iron construction for superior durability
- Protective PVC coating for corrosion and UV resistance
- LR Shape, Form 8 design for optimal conduit routing and wire pulling
- 1-inch (27 Metric) size for compatibility with standard conduit
- Ideal for industrial, commercial, and utility electrical installations
Specifications
Application | Act As Pull Outlets for Conductors Being Installed |
Color | Dark Gray |
Color | Gray |
Finish | PVC Coated |
Form | Form 8 |
Height | 2.63 in |
Height | 66.802 mm |
Hub Size | 1 in , 27 mm |
Hub Size | 1 |
Hub Size | 27 |
Length | 6.47 in |
Length | 164.338 mm |
Material | Iron with PVC Coating |
Material | Iron |
Material Quality | Iron |
Size | 1 Inch/27 Metric |
Special Features | The Conduit Body and Cover are Double Coated with a Nominal .002 In. Blue Urethane on Both The Interior and Exterior, Before PVC Coating is Applied |
Standard | UL E2969 |
Type | Form 8 Conduit Body |
Width | 1.94 in |
Width | 49.276 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 2.900 L |
Package Weight (Metric) | 1.315 kg |
