ABB - Installation Products LH38 - Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
ABB - Installation Products

LH38

UPC: 034481152842

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The ABB LH38 Cord Grip with NPT Threads (SKU: LH38) is a precision-engineered cable entry solution designed for industrial and commercial electrical installations requiring robust sealing and strain relief. This 3/8-inch NPT threaded cord grip accommodates cables ranging from 0.181 inches (4.6mm) to 0.312 inches (7.9mm) in diameter, providing a secure and watertight connection for demanding environments. The included locknut ensures additional stability, while the IP68 rating delivers protection against dust, water immersion (up to 1.5 meters for 30 minutes), and harsh environmental conditions per IEC 60529 standards. Constructed from durable, weather-stabilized nylon, the LH38 offers superior corrosion resistance and mechanical strength across a temperature range of -34°C to 105°C. Its precise hole clearance of 0.670 inches (17.0mm) and thread length of 0.53 inches (13.5mm) ensure a perfect fit in enclosures, control panels, and machinery. The rubber bushing provides oil and water-resistant sealing for both armored and unarmored cables, including types S, SO, SV, ST, STD, SJ, SJO, SJT, SJTO, and SVD. Ideal for applications in manufacturing, automation, construction, and outdoor enclosures, the LH38 is UL-recognized (File E13938) and suitable for use in hazardous locations where general-purpose equipment is permitted by NEC Class I, Div. 2; Class II, Div. 1 & 2; and Class III, Div. 1 & 2. Its compact design fits into tight spaces, reducing installation complexity while maintaining reliable cable management. Trust ABB Installation Products for a proven, field-tested solution that meets professional standards for electrical infrastructure and cable routing.
  • NPT Thread Size: 3/8 inch for secure conduit connections
  • Cable Range: 0.181–0.312 inches (4.6–7.9mm) diameter compatibility
  • IP68 Rating: Full protection against dust, water immersion, and harsh environments
  • Material: Weather-stabilized nylon with rubber bushing for oil/water resistance
  • Includes: Locknut for additional stability and grounding continuity
  • Temperature Range: -34°C to 105°C for versatile industrial use
  • UL Recognition: File E13938, suitable for hazardous locations (NEC Class I, Div. 2)

Specifications

Color
Black
Ip Rating
IP68
Material
Nylon
Size
3/8 Inch NPT
Package Dimensions (L x W x H)
6.37 IN x 6.37 IN x 6.75 IN
Package Dimensions (L x W x H)
16.1798 cm x 16.1798 cm x 17.145 cm
Package Weight (Imperial)
0.030 L
Package Weight (Metric)
0.014 kg
Spiral Cable/Cord Fitting with Intergral Strain-Relief, Trade Size 1 Inch, Cable Range 0.709 to 0.984 Inch, IP68 Rating, Polyamide 6 Body and Cap, Neoprene Sealing Ring, Black

SP-NPT1-B

Spiral Cable/Cord Fitting with Intergral Strain-Relief, Trade Size 1 Inch, Cable Range 0.709 to 0.984 Inch, IP68 Rating, Polyamide 6 Body and Cap, Neoprene Sealing Ring, Black
Cord Grip with PG Threads, Locknut Included, Thread Size PG16, Cable Range 0.230 Inch/5.8mm to 0.546 Inch/13.9mm, Hole Clearance 0.886 Inch/22.5mm, Thread Length 0.45 Inch/11.4mm, IP68 Rating, Nylon, Black

LH16

Cord Grip with PG Threads, Locknut Included, Thread Size PG16, Cable Range 0.230 Inch/5.8mm to 0.546 Inch/13.9mm, Hole Clearance 0.886 Inch/22.5mm, Thread Length 0.45 Inch/11.4mm, IP68 Rating, Nylon, Black
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Gray

LH38G

Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Gray
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 1/2 Inch, Cable Range 0.170 Inch/4.3mm to 0.470 Inch/11.9mm, Hole Clearance 0.875 Inch/22.2mm, Thread Length 0.62 Inch/15.7mm, IP68 Rating, Nylon, Gray

LH50G

Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 1/2 Inch, Cable Range 0.170 Inch/4.3mm to 0.470 Inch/11.9mm, Hole Clearance 0.875 Inch/22.2mm, Thread Length 0.62 Inch/15.7mm, IP68 Rating, Nylon, Gray
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/4 Inch, Cable Range 0.450 Inch/11.4mm to 0.709 Inch/18.0mm, Hole Clearance 1.068 Inch/27.1mm, Thread Length 0.63 Inch/16.0mm, IP68 Rating, Nylon, Gray

LH75G

Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/4 Inch, Cable Range 0.450 Inch/11.4mm to 0.709 Inch/18.0mm, Hole Clearance 1.068 Inch/27.1mm, Thread Length 0.63 Inch/16.0mm, IP68 Rating, Nylon, Gray
Euro Index Cable Gland, M12 Thread, 2.0-6.5mm Cable Range, 23.0mm Gland Depth, 19.0mm Gland Diameter, 17mm Across Flats Dimension, 100 Piece Pack, Polyamide 6.6 with Nitrile Rubber Seal, Black with Locknut

ESM12-10B-LN

Euro Index Cable Gland, M12 Thread, 2.0-6.5mm Cable Range, 23.0mm Gland Depth, 19.0mm Gland Diameter, 17mm Across Flats Dimension, 100 Piece Pack, Polyamide 6.6 with Nitrile Rubber Seal, Black with Locknut
Standard Cable Gland, M20 Metric Thread, 11mm Thread Length, 25mm Gland Depth, 25mm Gland Diameter, 19mm Across Flats Dimension, 7-10mm Cable Diameter Range, Polyamide 6.6 with Nitrile Rubber Seal, IP66, Black

251-B

Standard Cable Gland, M20 Metric Thread, 11mm Thread Length, 25mm Gland Depth, 25mm Gland Diameter, 19mm Across Flats Dimension, 7-10mm Cable Diameter Range, Polyamide 6.6 with Nitrile Rubber Seal, IP66, Black

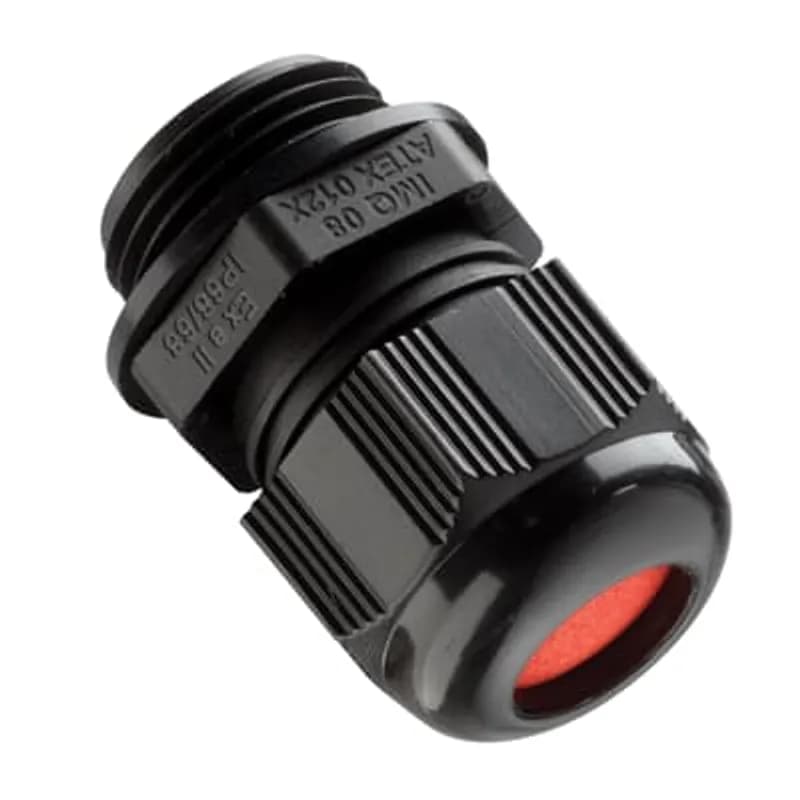

Single Compresion Cable Gland, M20 Metric Thread, Increased Safety Ex e and Intrinsic Safety Ex i, Cable Range 10 to 14mm, Thread Length 10mm, Nylon, Black
