UPC: 786209869777
Contact for Pricing
Minimum Qty: 20
Multiplier: 20
*Contact for lower quantities*
Overview
- 2-Pole configuration for complete circuit isolation
- Designed for fluorescent luminaire disconnection
- Suitable for voltages over 150V
- Manufactured by ABB Installation Products
- Ensures safe maintenance of lighting fixtures
Specifications
Amperage Rating | 4 A |
Application | Fluorescent lighting fixture and ballast (OEMs) |
Color | Orange |
Environmental Conditions | Max Temperature Rating 105 Degrees Celcius |
Material | Polycarbonate |
Standard | UL E307134 |
Type | Luminaire Disconnect |
Voltage Rating | 600 V |
Wire Size | 18 AWG |
Package Dimensions (L x W x H) | 1 IN x 4.34 IN x 10.25 IN |
Package Dimensions (L x W x H) | 2.54 cm x 11.0236 cm x 26.035 cm |
Package Weight (Imperial) | 0.0600 L |
Package Weight (Metric) | 0.0270 kg |
F2024
Polypropylene-Insulated Ferrule, Total Length .551 Inches/14.0mm, Pin Length .315 Inches/8mm, Pin Diameter .051 Inches/1.3mm, Base Diameter .11 Inches/2.8mm, Wire Range 18 AWG/.75mm2, Color Gray, Copper, Tin Plated
F2025
Polypropylene-Insulated Ferrule, Total Length .630 Inches/16.0mm, Pin Length .394 Inches/10mm, Pin Diameter .051 Inches/1.3mm, Base Diameter .11 Inches/2.8mm, Wire Range 18 AWG/.75mm2, Color Gray, Copper, Tin PlatedF2023
Polypropylene-Insulated Ferrule, Total Length .472 Inches/12.0mm, Pin Length .236 Inches/6mm, Pin Diameter .051 Inches/1.3mm, Base Diameter .11 Inches/2.8mm, Wire Range 18 AWG/.75mm2, Color Gray, Copper, Tin Plated
F9006
Non-Insulated Ferrule, Length .394 Inches/10mm, Inner Diameter .055 Inches/1.4mm, Outer Diameter .098 Inches/2.5mm, Conductor Size 17 AWG/1.00mm2, Copper, Tin Plated

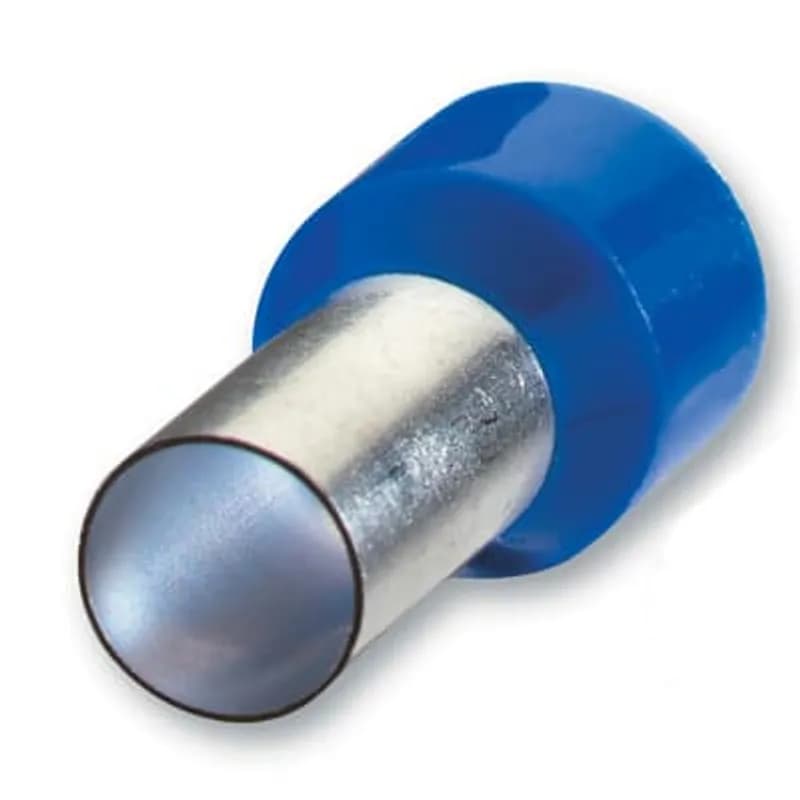

F4023
Polypropylene-Insulated Old DIN Ferrule, Total Length .571 Inches/14.5mm, Pin Length .315 Inches/8mm, Pin Diameter .051 Inches/1.3mm, Base Diameter .110 Inches/2.8mm, Wire Range #18 AWG/.70mm2, Color Light Blue, Copper, Tin Plated
F4001
Polypropylene-Insulated Old DIN Ferrule, Total Length .571 Inches/14.5mm, Pin Length .315 Inches/8mm, Pin Diameter .051 Inches/1.3mm, Base Diameter .110 Inches/2.8mm, Wire Range #18 AWG/.75mm2, Color White, Copper, Tin PlatedF2026
Polypropylene-Insulated Ferrule, Total Length .709 Inches/18.0mm, Pin Length .472 Inches/12mm, Pin Diameter .051 Inches/1.3mm, Base Diameter .11 Inches/2.8mm, Wire Range 18 AWG/.75mm2, Color Gray, Copper, Tin Plated
F9003

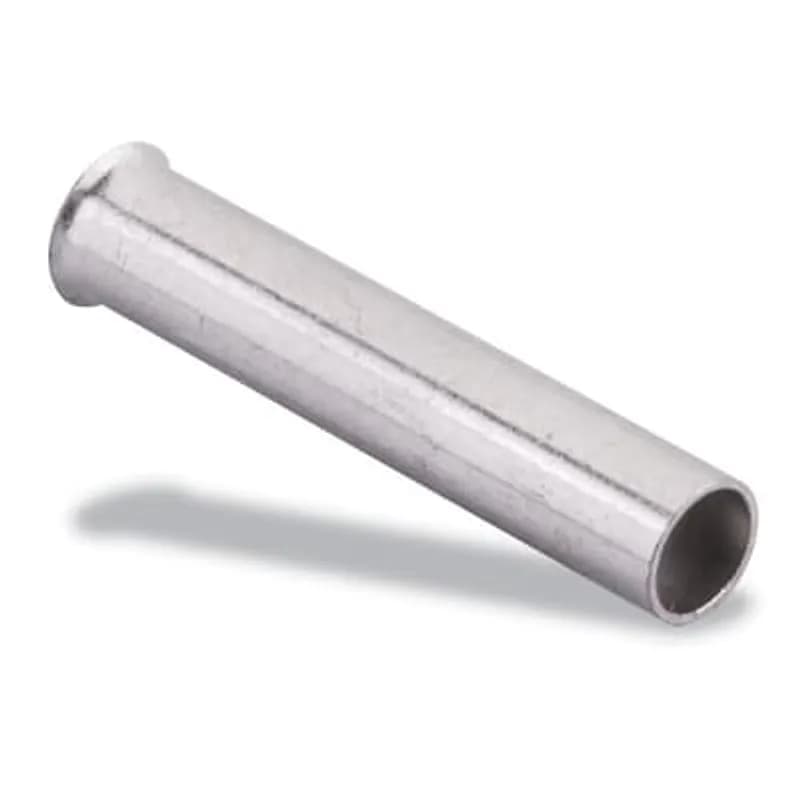

Non-Insulated Ferrule, Length .236 Inches/6mm, Inner Diameter .047 Inches/1.2mm, Outer Diameter .091 Inches/2.3mm, Conductor Size 18 AWG/.75mm2, Copper, Tin PlatedF9004
Non-Insulated Ferrule, Length .394 Inches/10mm, Inner Diameter .047 Inches/1.2mm, Outer Diameter .091 Inches/2.3mm, Conductor Size 18 AWG/.75mm, Copper, Tin PlatedF9005
Non-Insulated Ferrule, Length .236 Inches/6mm, Inner Diameter .055 Inches/1.4mm, Outer Diameter .098 Inches/2.5mm, Conductor Size 17 AWG/1.00mm2, Copper, Tin Plated
LAC42
Aluminum Slotted Tang Compression Terminal Lug - Color Orange, Conductor Size Concentric #4 stranded Compressed Compact #4 solid #3 solid, Installation Dies, BY37, 840U, B49EA, K840, 2 Slots. For Aluminum and Copper ConductorsLAC42WL2PSC
Aluminum Slotted Tang Compression Terminal Lug with Sleeve and Plug - Color Orange, Conductor Size Concentric #4 stranded Compressed Compact #4 solid #3 solid, Installation Dies, BY37, 840U, B49EA, K840. For Aluminum and Copper ConductorsHow to Install the Fluorescent Luminaire Disconnect (LD2/LD3 Series)
This guide provides step-by-step instructions for safely installing the LD2 and LD3 series fluorescent luminaire disconnects, including wiring connections and final verification.
Estimated time: 30m
Tools needed:
Wire strippers, Screwdriver
Supplies needed:
Appropriate rated wiring connectors
- Disconnect Power
Before beginning any installation, disconnect power to the luminaire circuit to prevent risk of electrical shock. This is a critical safety step.
- Prepare Luminaire Access
Remove all lamps and any necessary access covers on the luminaire to gain full access to the ballast and incoming supply wires.
- Connect Male Disconnect to Ballast
Using appropriate rated wiring connectors, attach the line (black) and neutral (white) leads of the male side of the disconnect (marked 'load') to the corresponding ballast leads. For 3-pole disconnects, connect the third colored wire lead to its appropriate ballast lead.
- Connect Female Disconnect to Supply
Using appropriate rated wiring connectors, attach the line (black) and neutral (white) leads of the female side of the disconnect (marked 'line') to the corresponding incoming supply leads. For 3-pole disconnects, connect the third colored wire lead to its appropriate incoming supply lead.
- Mate Disconnect Halves
Before mating, ensure the latching mechanism on the female side is functional by pressing it down and releasing it. Then, align and push the male and female halves together until an audible click confirms a positive latch.
- Reinstall Covers and Lamps
Carefully reinstall any access covers that were removed and replace all lamps in the luminaire.
- Test Luminaire Functionality
Restore power to the circuit. Verify that the luminaire is fully functional and operating as expected.
