ABB - Installation Products HO225-1 - Nipples, 3/4 Inch Offset, Conduit Size 1-1/2 Inch, Length 2.88 Inches, Opening Diameter 2.08 Inch, Die Cast Zinc, Pack of 50
ABB - Installation Products

HO225-1

UPC: 785991185041

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Overview

The ABB HO225-1 3/4 Inch Offset Nipples are precision-engineered for reliable conduit installations in industrial and commercial settings. Constructed from durable die-cast zinc, these nipples offer superior corrosion resistance and long-lasting performance, essential for harsh environments. Each nipple is designed for 1-1/2 inch conduit size and features a 2.08-inch opening diameter, ensuring a secure and proper fit for electrical wiring protection. With a length of 2.88 inches, these nipples provide optimal offset, facilitating complex wiring configurations and ensuring efficient cable management. The die-cast zinc material guarantees robustness and longevity, meeting rigorous industry standards for electrical components. This pack contains 50 nipples, providing ample supply for large-scale projects and ensuring consistent availability for maintenance and new installations. Trust ABB Installation Products for high-quality, dependable electrical components that deliver exceptional performance and value. The UNSPSC code for this product is 39131718, aligning it with standard electrical conduit fittings. These nipples are ideal for applications requiring secure conduit connections and protection for electrical systems, ensuring electrical continuity and safety.
  • Durable die-cast zinc construction for corrosion resistance
  • Designed for 1-1/2 inch conduit size
  • Features a 2.08 inch opening diameter for secure fit
  • 2.88 inch length provides optimal offset for wiring configurations
  • Pack of 50 for industrial and commercial projects

Specifications

Application
For Use with Rigid/IMC Conduits
Color
Gray
Inside Diameter
2.08 in
Inside Diameter
52.832 mm
Length
2.88 in
Length
73.152 mm
Material
Zinc Die Cast
Standard
UL E23018
Trade Size
1-1/2 Inch
Package Dimensions (L x W x H)
12.5 IN x 3.2 IN x 5.1 IN
Package Dimensions (L x W x H)
31.75 cm x 8.128 cm x 12.954 cm
Package Weight (Imperial)
0.420 L
Package Weight (Metric)
0.191 kg
Nipples, 3/4 Inch Offset, Conduit Size 1 Inch, Length 2.68 Inches, Opening Diameter 1.51 Inch, Die Cast Zinc

HO 223

Nipples, 3/4 Inch Offset, Conduit Size 1 Inch, Length 2.68 Inches, Opening Diameter 1.51 Inch, Die Cast Zinc
PVC Coated Offest Nipple, Die Cast Zinc, Conduit Size 1 Inch, Dimensions A 2.62 Inch, B 1.51 Inch, Gray

HO223-G

PVC Coated Offest Nipple, Die Cast Zinc, Conduit Size 1 Inch, Dimensions A 2.62 Inch, B 1.51 Inch, Gray
PVC Coated Offest Nipple, Die Cast Zinc, Conduit Size 3/4 Inch, Dimensions A 2.62 Inch, B 1.32 Inch, Gray

HO222-G

PVC Coated Offest Nipple, Die Cast Zinc, Conduit Size 3/4 Inch, Dimensions A 2.62 Inch, B 1.32 Inch, Gray

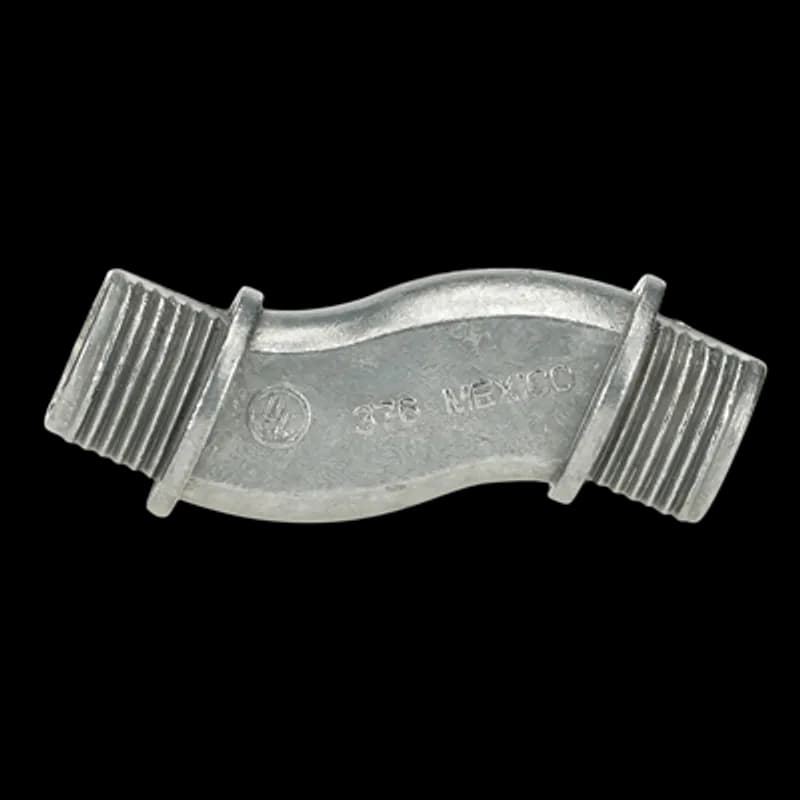

Nipples, 3/4 Inch Offset, Conduit Size 3/4 Inch, Length 2.62 Inches, Opening Diameter 1.32 Inch, Die Cast Zinc, Pack of 100

HO222-1

Nipples, 3/4 Inch Offset, Conduit Size 3/4 Inch, Length 2.62 Inches, Opening Diameter 1.32 Inch, Die Cast Zinc, Pack of 100
PVC Coated Offest Nipple, Die Cast Zinc, Conduit Size 3/4 Inch, for use with Rigid/IMC Conduit, Gray

H0222-G

PVC Coated Offest Nipple, Die Cast Zinc, Conduit Size 3/4 Inch, for use with Rigid/IMC Conduit, Gray
PVC Coated Offset Nipple, Die Cast Zinc, Conduit Size 1/2 Inch, Offset 3/4 Inch, for use with Rigid/IMC Conduit, Gray

H0221-G

PVC Coated Offset Nipple, Die Cast Zinc, Conduit Size 1/2 Inch, Offset 3/4 Inch, for use with Rigid/IMC Conduit, Gray
Nipples, 3/4 Inch Offset, Conduit Size 1-1/4 Inch, Length 2.85 Inches, Opening Diameter 1.85 Inch, Die Cast Zinc, Pack of 50

HO224-1

Nipples, 3/4 Inch Offset, Conduit Size 1-1/4 Inch, Length 2.85 Inches, Opening Diameter 1.85 Inch, Die Cast Zinc, Pack of 50
PVC Coated Conduit Nipple, 1-1/2 Inch/41 Metric Pipe Size x 3 Inch/76.2 Millimeters Nipple Length, Nominal .002 Inch (2 mil) Blue Urethane on Interior, Minimum .040 Inch (40 mil) PVC Coating on Exterior, Blue Urethane Coating Over Threads, Hot-Dip Galvanized Rigid Steel, Gray

NPL11/2X3-G

PVC Coated Conduit Nipple, 1-1/2 Inch/41 Metric Pipe Size x 3 Inch/76.2 Millimeters Nipple Length, Nominal .002 Inch (2 mil) Blue Urethane on Interior, Minimum .040 Inch (40 mil) PVC Coating on Exterior, Blue Urethane Coating Over Threads, Hot-Dip Galvanized Rigid Steel, Gray
PVC Coated Conduit Nipple, 1-1/2 Inch/41 Metric Pipe Size x 3 Inch/76.2 Millimeters Nipple Length, Nominal .002 Inch (2 mil) Blue Urethane on Interior, Minimum .040 Inch (40 mil) PVC Coating on Exterior, Blue Urethane Coating Over Threads, Rigid Aluminum, Gray

NPL11/2X3SA-G

PVC Coated Conduit Nipple, 1-1/2 Inch/41 Metric Pipe Size x 3 Inch/76.2 Millimeters Nipple Length, Nominal .002 Inch (2 mil) Blue Urethane on Interior, Minimum .040 Inch (40 mil) PVC Coating on Exterior, Blue Urethane Coating Over Threads, Rigid Aluminum, Gray

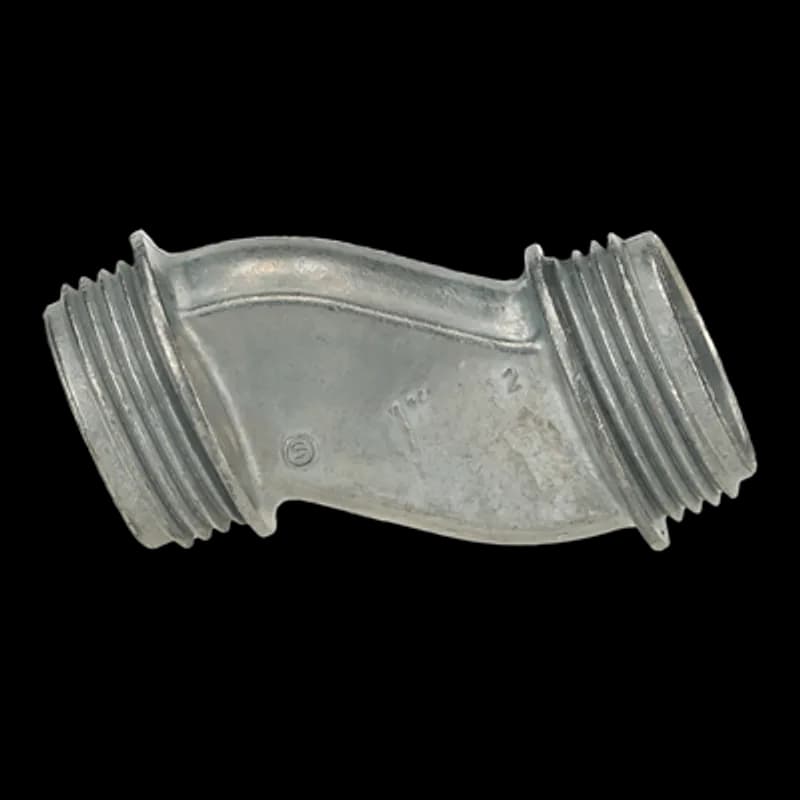

Nipples, 3/4 Inch Offset, Conduit Size 1 Inch, Length 2.68 Inches, Opening Diameter 1.51 Inch, Die Cast Zinc, Pack of 100
