ABB - Installation Products EYS10-B - PVC Double-Coated Conduit Sealing Fitting, EYS Series for Hazardous Locations, for Sealing in Vertical or Horizontal Positions, Female Hub, Hub Size 4 Inch/103 Metric, Turning Radius 3.53 Inch/89.66 Millimeters, Ductile Iron, Light Blue
ABB - Installation Products

EYS10-B

UPC: 704508373320

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Overview

The ABB EYS10-B PVC Double-Coated Conduit Sealing Fitting from the EYS Series delivers unmatched reliability in hazardous industrial environments. Engineered by ABB Installation Products, this ductile iron fitting features a robust PVC double-coating for superior corrosion resistance and long-term durability. Designed to meet stringent hazardous location standards, the EYS10-B ensures leak-proof performance in both vertical and horizontal installations, making it ideal for demanding applications where safety and compliance are critical. Key specifications include a 4-inch (103 mm) female hub and a compact turning radius of 3.53 inches (89.66 mm), allowing for flexible conduit routing without compromising structural integrity. The light blue coating provides clear visual identification while enhancing protection against harsh conditions. Whether used in chemical plants, oil refineries, or manufacturing facilities, this fitting guarantees secure, compliant connections that withstand extreme temperatures, moisture, and corrosive substances. ABB’s EYS Series is trusted by engineers and contractors worldwide for its precision engineering and adherence to industry standards. The ductile iron construction ensures exceptional strength and impact resistance, while the double-coated PVC layer adds an extra barrier against environmental degradation. With a UNSPSC code of 39131708, this fitting is optimized for hazardous location applications, providing peace of mind in critical infrastructure projects. Choose ABB Installation Products for solutions that combine innovation, durability, and compliance. The EYS10-B is your go-to choice for reliable conduit sealing in the most challenging industrial settings.
  • 4-inch (103 mm) female hub for secure conduit connections
  • Ductile iron core with PVC double-coating for superior corrosion resistance
  • Light blue coating for visual identification and enhanced protection
  • Compact turning radius of 3.53 inches (89.66 mm) for flexible routing
  • Designed for hazardous locations with compliance to industry standards

Specifications

Application
Restricts the Passage of Gases, Vapors and Flames at Atmospheric Pressure and Normal Ambient Temperatures
Color
Blue
Color
Light Blue
Finish
PVC Coated
Hub Size
4 in , 103 mm
Hub Size
4
Hub Size
103
Material
Iron
Material Quality
Iron
Special Features
PVC Coating Bonded to Exterior
Type
Hazardous Location Fitting
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
19.250 L
Package Weight (Metric)
8.732 kg

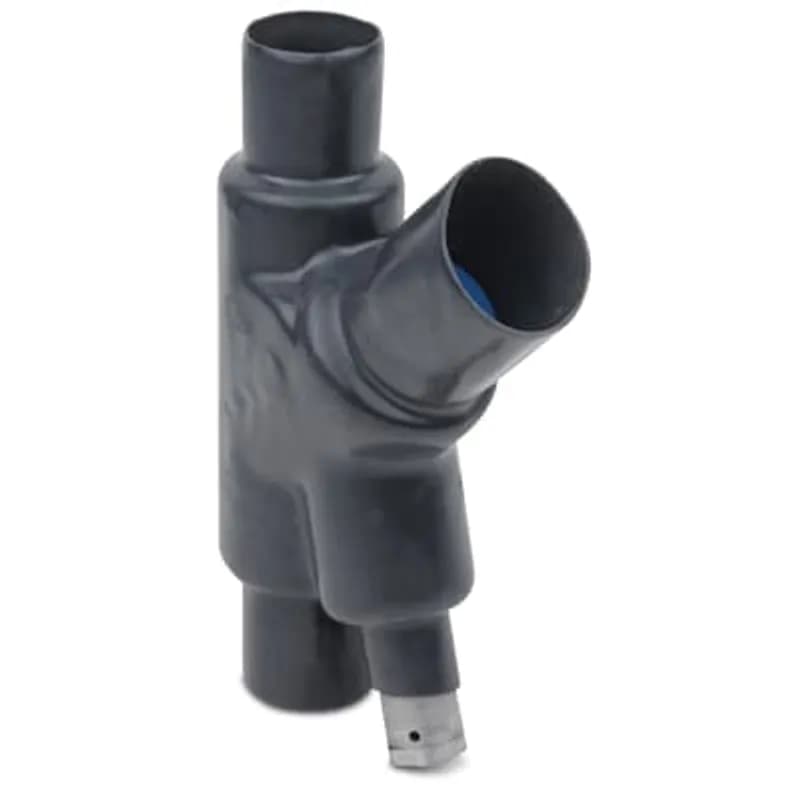

PVC Double Coated Conduit Sealing Fitting with Drain, EYD Series, Male and Female Hub, Pipe Size 4 Inch/103 Metric, Turning Radius 3.64 Inch/92.46 Millimeters, Iron, Light Blue
