ABB - Installation Products E996H - Box Adapter, Size 1-1/2 Inch, Length 1-3/8 Inches, Outer Diameter 1.900 Inches, Material PVC, Color Grey, For use with Schedule 40 and 80
ABB - Installation Products

E996H

UPC: 034481062653

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Overview

The ABB E996H Box Adapter (SKU: E996H) from ABB Installation Products is engineered for robust connections between non-metallic conduit and electrical enclosures. Designed for use with Schedule 40 and Schedule 80 conduit, this adapter provides a reliable transition point in your electrical systems. It features a 1-1/2 inch conduit size, a substantial 1.900-inch outer diameter, and a practical 1-3/8 inch length, ensuring precise fit and alignment. Constructed from durable PVC, the E996H offers excellent resistance to corrosion and chemical degradation, making it suitable for demanding industrial and commercial environments. The adapter is designed to be inserted through an enclosure knockout and cemented into Carlon couplings, facilitating a secure and permanent bond. Its grey color offers a professional aesthetic. Key specifications include a typical minimum internal diameter (D) of 1.610 inches and a typical maximum external diameter (OD) of 1.900 inches. The typical length (L) is 1-3/8 inches, with a typical X dimension of 2-13/64 inches and a CM dimension of 13/16 inches. This adapter is an essential component for maintaining the integrity and safety of electrical conduit runs, particularly where non-metallic conduit needs to interface with metallic enclosures or threaded fittings. Trust ABB Installation Products for dependable conduit fittings that meet stringent industry requirements.
  • Adapts non-metallic conduit to electrical enclosures
  • Compatible with Schedule 40 and Schedule 80 conduit
  • Durable PVC construction for corrosion resistance
  • 1-1/2 inch conduit size with 1.900 inch outer diameter
  • 1-3/8 inch typical length for precise fit

Specifications

Color
Gray
Color
Grey
Length
1.31 in
Length
33.274 mm
Material
PVC
Material Quality
Polyvinyl Chloride (PVC)
Size
1-1/2 Inch
Special Features
dapts non-metallic conduit to all electrical enclosures by inserting adapter through knockout and cementing into Carlon couplings
Type
Box & Threaded Adapters
Width
2.17 in
Width
55.118 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.050 L
Package Weight (Metric)
0.023 kg
Box Adapter, Size 1-1/4 Inch, Length 1-1/4 Inches, Outer Diameter 1.660 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80

E996G

Box Adapter, Size 1-1/4 Inch, Length 1-1/4 Inches, Outer Diameter 1.660 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80
Box Adapter, Size 1 Inch, Length 1-3/32 Inches, Outer Diameter 1.315 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80

E996F

Box Adapter, Size 1 Inch, Length 1-3/32 Inches, Outer Diameter 1.315 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80

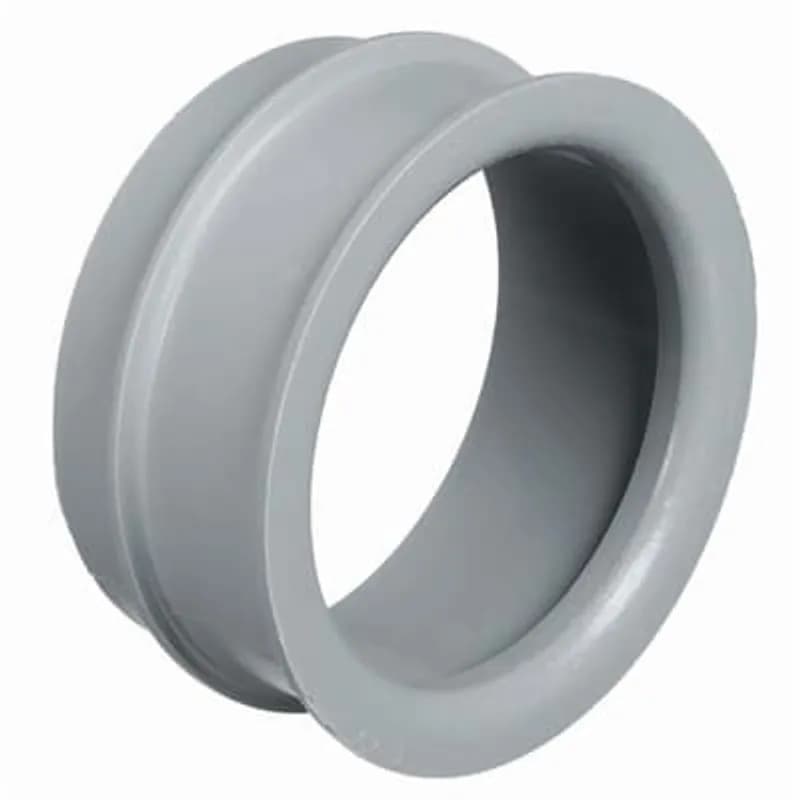

Bell End, Size 1-1/4 Inch, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit, Pack of 15
