Overview
- Non-metallic construction resists corrosion and moisture for long-term durability
- Includes carpet flange for secure floor covering attachment and trip hazard prevention
- Measures 7.13" (W) x 5" (L) for a clean, professional floor installation
- Ideal for commercial, industrial, and residential electrical floor box applications
- Meets industry safety and performance standards for reliable operation
Specifications
Application | Suitable for any wiring application |
Color | Brown |
Knockouts | False |
Knockouts | 0 |
Material | Non-Metallic |
Size | 7.13" x 5" |
Special Features | High impact resistant thermoplastic |
Standard | UL E11461 |
Standard | UL E11461 / UL E11461 |
Type | Multi-Gang Rectangular Floor Boxes & Covers |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.650 L |
Package Weight (Metric) | 0.295 kg |
E97DSC
Cover for Round Floor Box, Diameter 5.69 Inches, Color Caramel, Non-Metallic, For use with Duplex Devices
E9762C
Two Gang Floor Box Cover, Width 7.13 Inches x Length 8.25 Inches, Caramel, Non-Metallic, Carpet Flange Included
E9761C
Single Gang Floor Box Cover, Width 7.13 Inches x Length 5 Inches, Caramel, Non-Metallic, Carpet Flange Included
E9762B
Two Gang Floor Box Cover, Width 7.13 Inches x Length 8.25 Inches, Brown, Non-Metallic, Carpet Flange Included
E97DSB

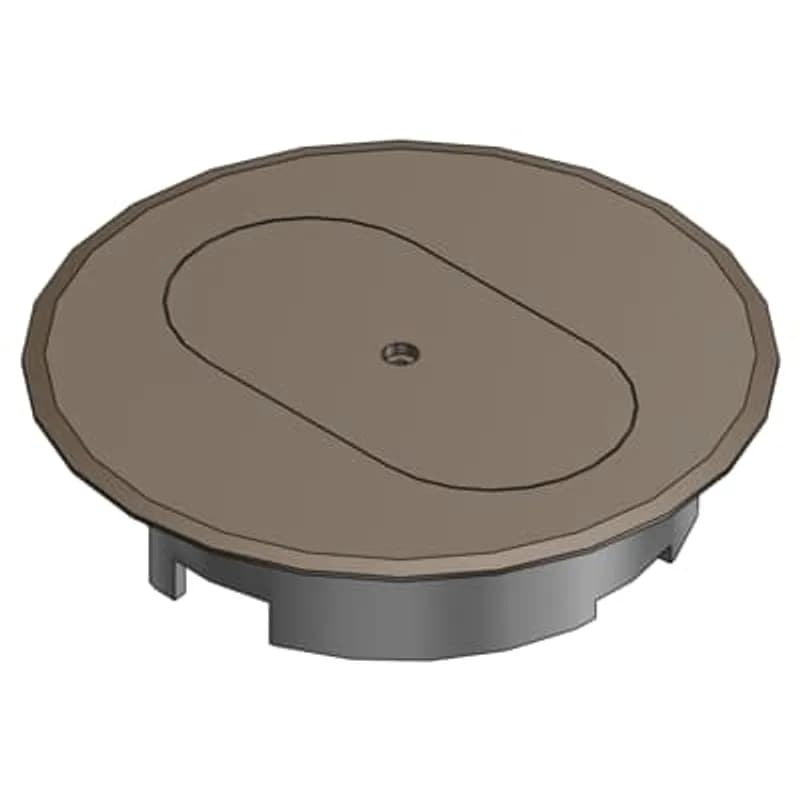

Cover for Round Floor Box, Diameter 5.69 Inches, Color Brown, Non-Metallic, For use with Duplex Devices
E9763C

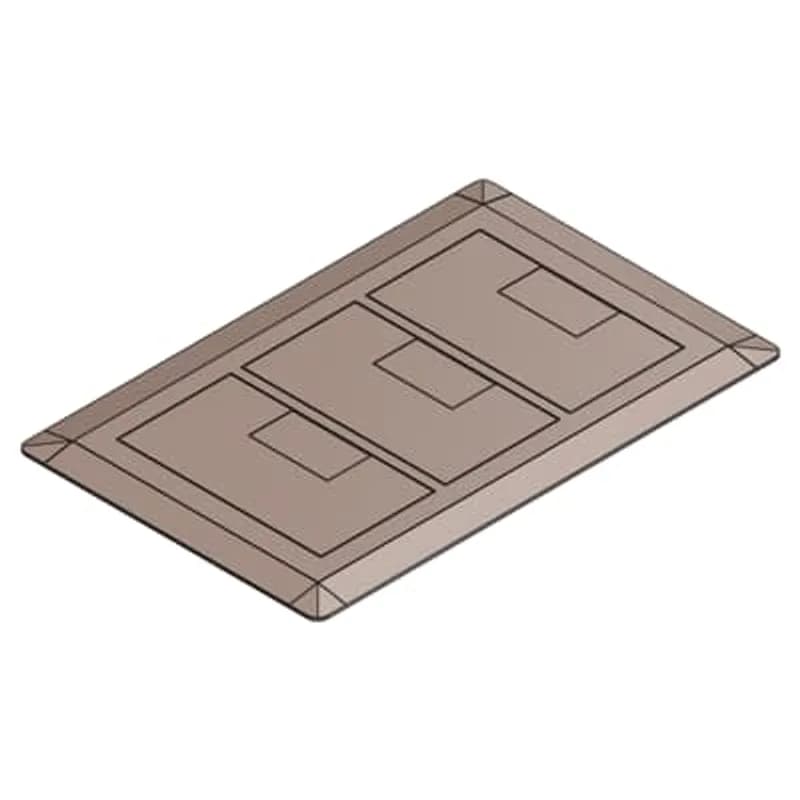

Three Gang Floor Box Cover, Width 7.13 Inches x Length 11.50 Inches, Caramel, Non-Metallic, Carpet Flange Included
P 68 FSC BRN

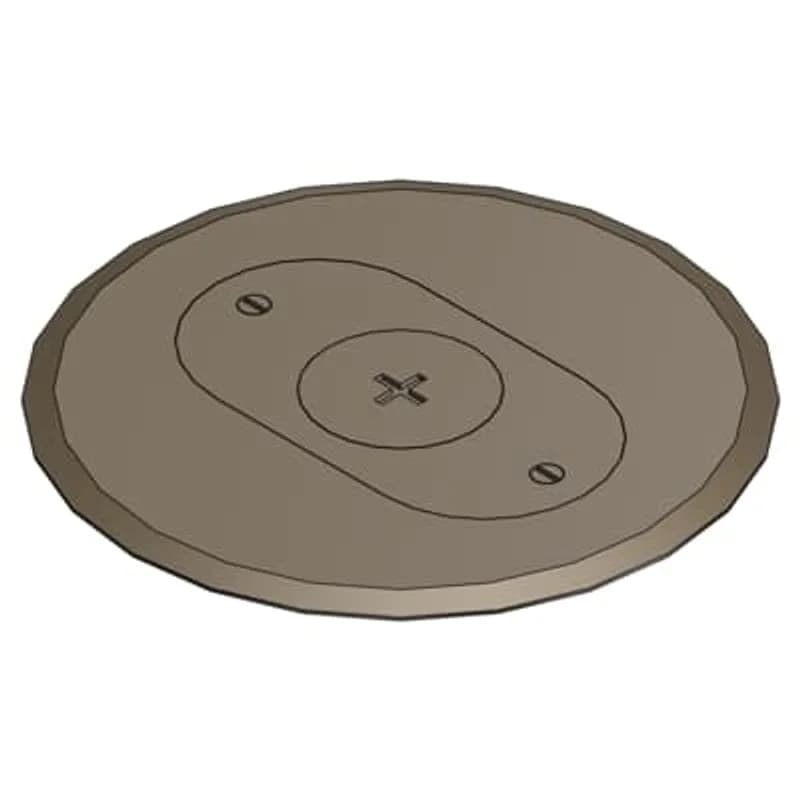

Carpet Plate and Cover for Flush Service Floor Box, 6 Inch Diameter, 1 Inch NPS Plug, Brown, PolyCarbonate
665-CST-SW-BRN

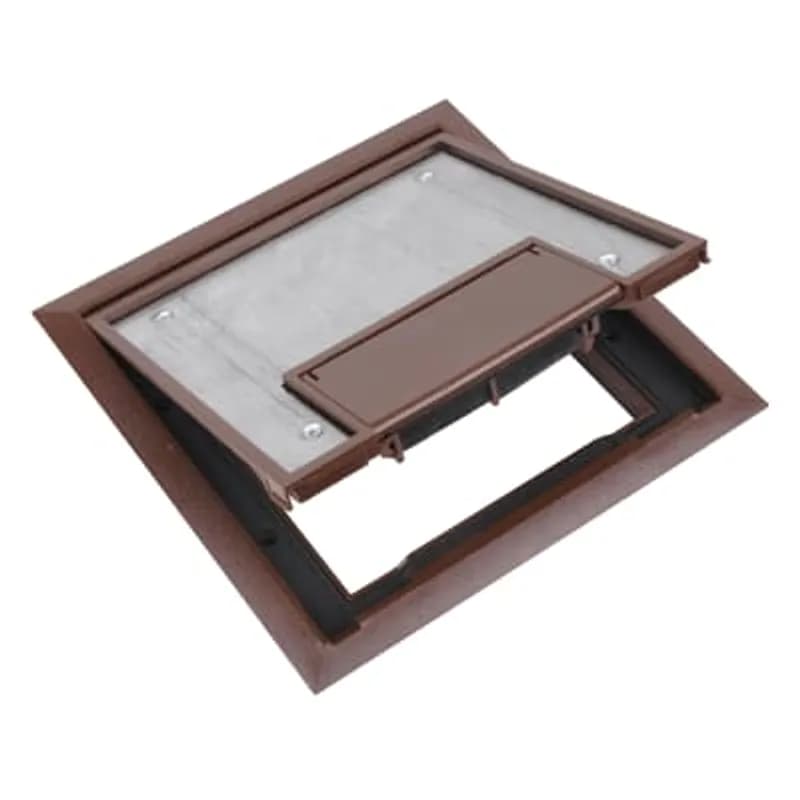

Cover for 665 Series Boxes, Brown, Polycarbonate with 5/32 Inch Steel Plate, Load Rating 750 Pounds
667-CST-SW-BRN

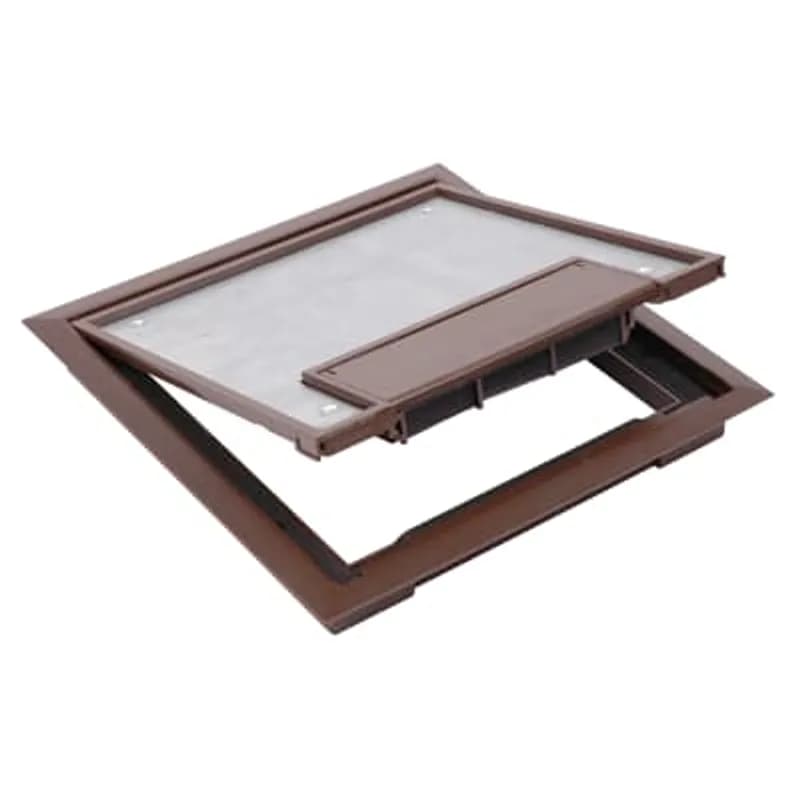

Cover and Flange for Recessed Service Floor Box, 10.63 Inches Square, Flange Height .188 Inches, Brown, Non-Metallic
E9763B

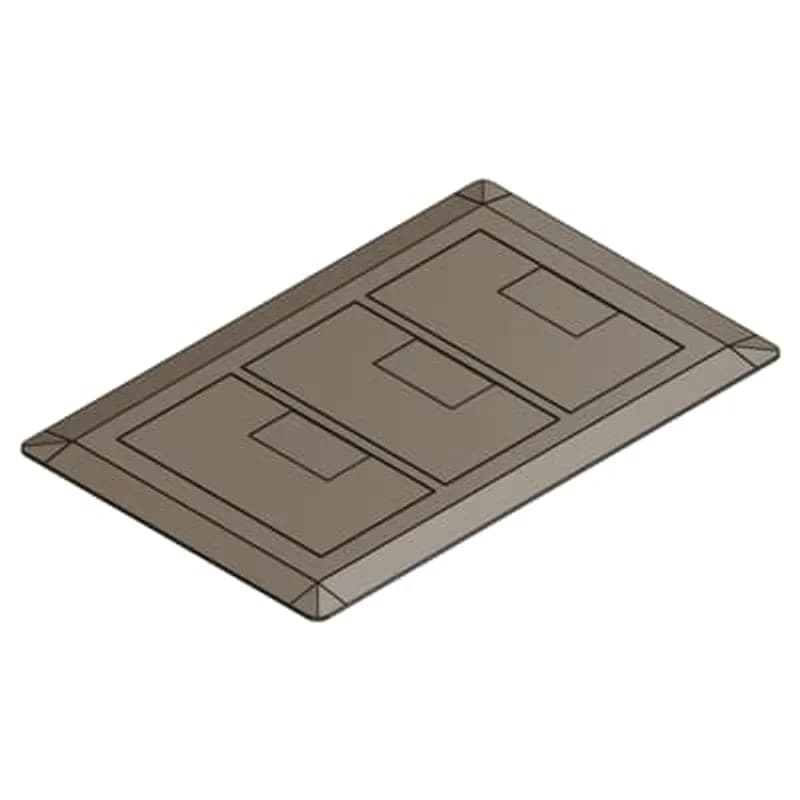

Three Gang Floor Box Cover, Width 7.13 Inches x Length 11.50 Inches, Brown, Non-Metallic, Carpet Flange Included
E97SSRC

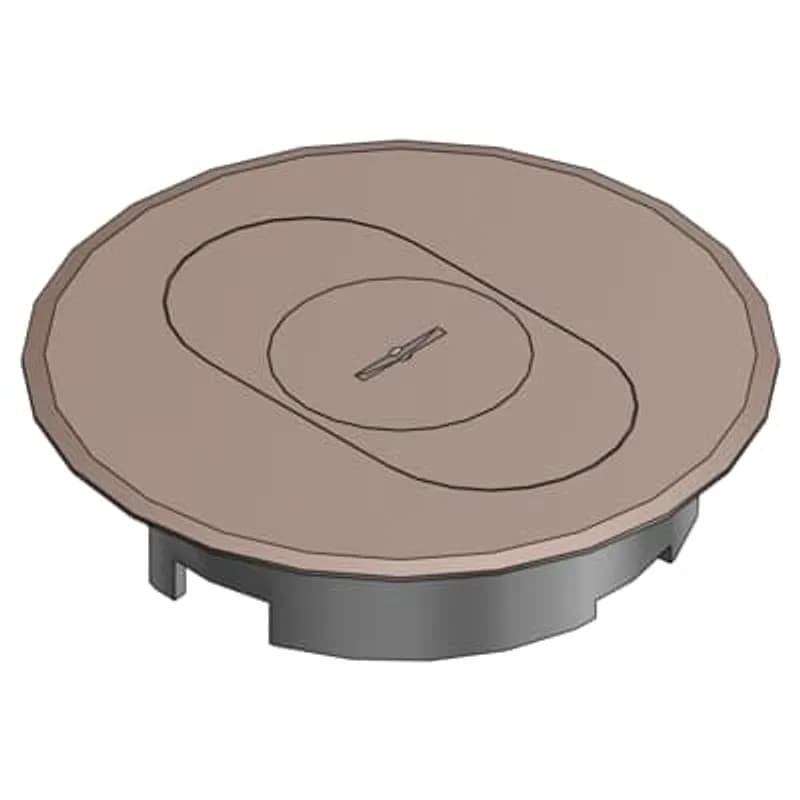

Cover for Round Floor Box, Diameter 5.69 Inches, Color Caramel, Non-Metallic, For use with 1-1/4 Inch NPS
AFM-6V-BRN

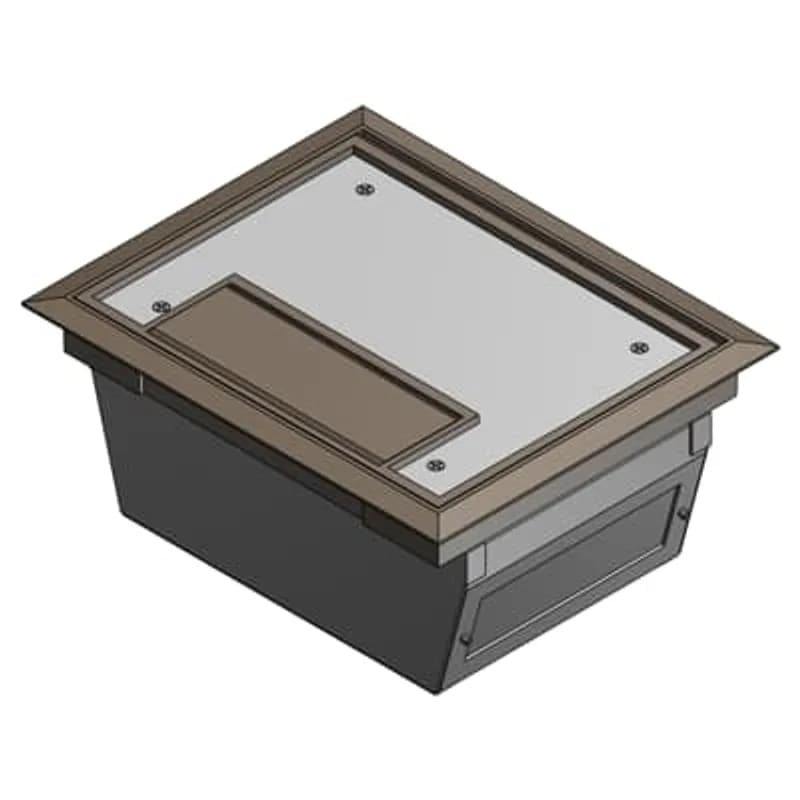

2-compartment rectangular stamped steel raised access floor module with brown cover, 201 cubic inch.How to Install the Carlon Rectangular Floor Box E9761B
This guide provides step-by-step instructions for installing the Carlon Rectangular Floor Box E9761B, including mounting, wiring, and final setup.
Estimated time: 1h
Tools needed:
Screwdriver, Wire strippers, Handsaw, Multimeter
Supplies needed:
#8 x 3/4 screws, Duct tape, Terminal connectors, Grounding lug
- Prepare the installation site
Ensure the installation area is clean and level. Mark the desired height for the floor box and ensure a minimum concrete pour of 3.5 inches is available.
- Mount the floor box
Secure the floor box to the concrete using duct tape to hold the plastic cap in place before pouring concrete. Ensure the box is level and properly aligned.
- Cut the box to height
After the concrete has cured, remove the plastic cap and cut the box to the desired height using a handsaw. Mark a line 1/8 inch below the final height for nonmetallic covers or 3/16 inch for brass covers.
- Install the yoke
Align the yoke in the floor box slots and secure it using the provided #8 x 3/4 inch pan head screws. Ensure it is positioned at the desired level.
- Wire the electrical device
Attach conductors to the electrical device (e.g., duplex or GFCI receptacle) and secure it in the yoke using the provided screws. Ensure proper grounding using the grounding lug.
- Install the cover
Attach the cover to the floor box using #8 x 1 1/8 inch pan head screws. Ensure the cover is flush with the finished floor surface.
- Perform final checks
Verify all connections are secure and test the electrical device with a multimeter to ensure proper functionality.
