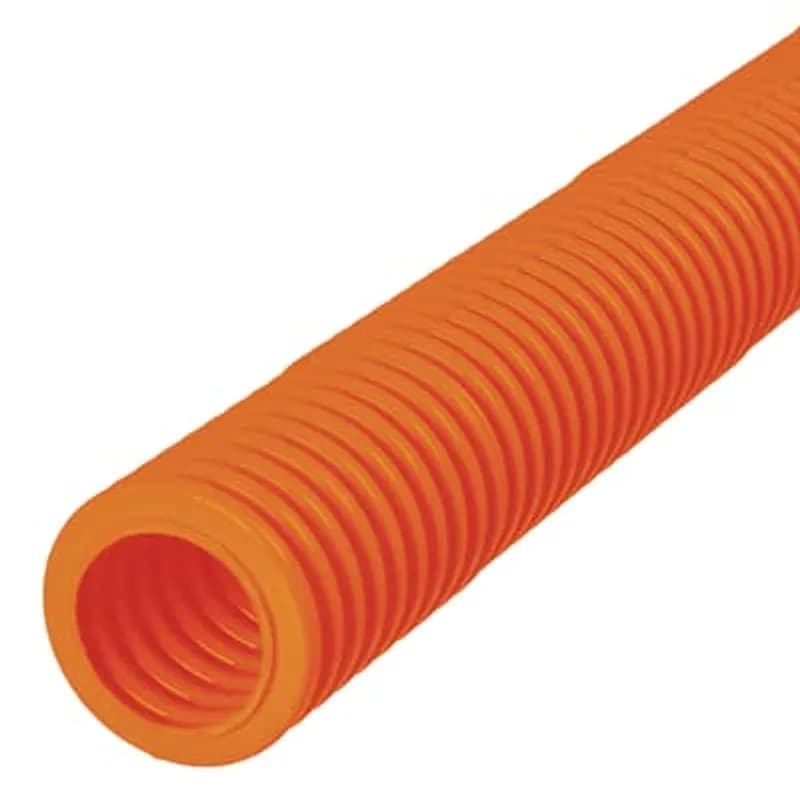

ABB - Installation Products DG4X1C-500R - 1-1/4 Inch Riser-Gard orange corrugated non-metallic flexible raceway with tape, reel length-500 foot.
ABB - Installation Products

DG4X1C-500R

UPC: 034481149132

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 500

Multiplier: 500

*Contact for lower quantities*

Overview

The ABB Riser-Gard 1-1/4 Inch Orange Corrugated Non-Metallic Flexible Raceway, SKU DG4X1C-500R, is engineered for robust electrical wire protection in industrial and commercial settings. This non-metallic flexible conduit offers superior defense against physical impacts, moisture ingress, and abrasive wear, ensuring sustained operational reliability in challenging environments. Its distinct orange color significantly enhances visibility, a critical safety feature for installations where hazard identification is paramount. The integrated tape facilitates secure connections and streamlines the installation process. Supplied on a 500-foot reel, this raceway provides ample material for extensive projects. Specifically designed for riser applications, it adheres to industry standards for fire resistance and electrical safety, including compliance with NEC and UL listings for flame retardancy and electrical insulation. Manufactured by ABB Installation Products in the US, this raceway (UNSPSC Code: 39131706) delivers dependable electrical protection with a smooth inner surface to reduce wire pull friction and a corrugated outer design for enhanced flexibility and crush resistance. The raceway is constructed from a high-strength, UV-resistant polymer to maintain performance in outdoor and indoor applications, and its lightweight design simplifies handling and transport.
  • 1-1/4 Inch Riser-Gard Orange Corrugated Non-Metallic Flexible Raceway
  • 500 Foot Reel Length for extensive installations
  • Durable protection against physical damage, moisture, and abrasion
  • High-visibility orange color for safety-critical applications
  • Includes tape for secure connections and easy installation

Specifications

Application
Riser-Gard is suitable for use in vertical runs in a shaft or between floors, as well as areas other than the plenum
Color
Orange
Connection Type
Tape
Connection Type
Flexible Raceway
Inside Diameter
1.31 in
Inside Diameter
33.274 mm
Length
500 ft
Length
6000 in
Length
152400 mm
Material
PVC
Material
Non-Metallic
Material Quality
Polyvinyl Chloride (PVC)
Outside Diameter
1.67 in
Outside Diameter
42.418 mm
Series
Riser-Gard
Size
1-1/4 Inch
Special Features
UL Listed and is available with tape pre-installed
Standard
UL e151168
Trade Size
1-1/4 Inch
Type
Riser-Gard Flexible Raceway
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.280 L
Package Weight (Metric)
0.127 kg
