UPC: 034481102151
Contact for Pricing
Overview

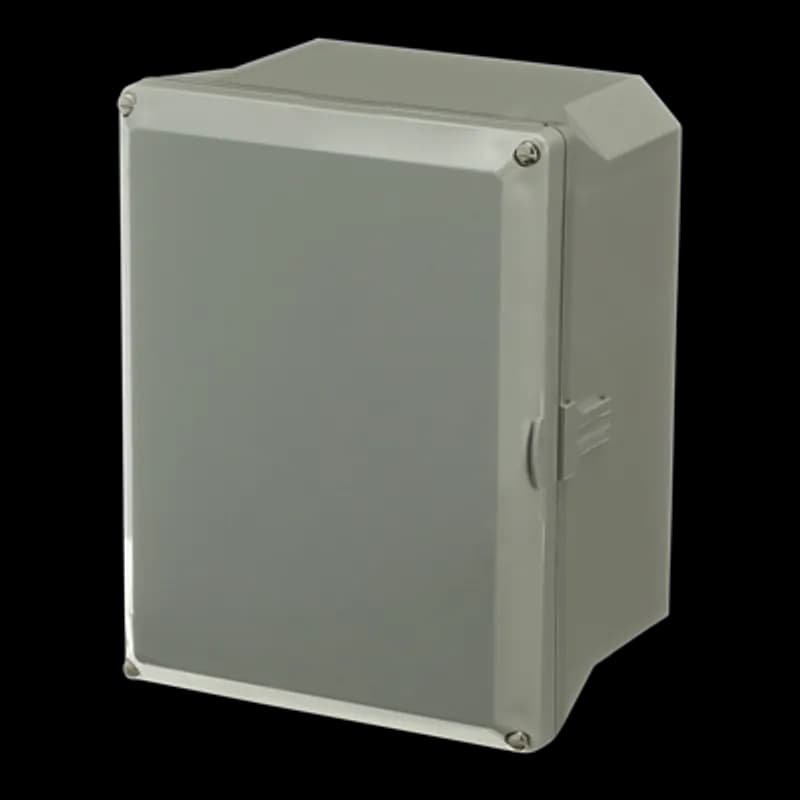

- High-impact polycarbonate resin construction for superior durability
- NEMA Types 3R, 4, 4X and IP66 ingress protection ratings
- UV-stabilized for long-term outdoor performance
- Opaque, screw-on cover for secure component protection
- Internal dimensions: 8" x 6" x 3.25"
- Through-holes for wall mounting and removable knockouts on all four sides
- Compatible with Type 3R, 4, and 4X applications; manufactured in the US
Specifications
Application | Instrument case |
Material | Polycarbonate |
Material Quality | Polycarbonate |
Nema Rating | Type 4X |
Series | Circuit Safe |
Size | [object Object] |
Special Features | Non-metallic mounting feet with all mounting hardware included |
Type | Circuit Safe JIC Enclosures |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 3.190 L |
Package Weight (Metric) | 1.447 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
Frequently Asked Questions
What materials are used for the enclosure?
The enclosure features a polycarbonate molded base and cover, with stainless steel screws and brass screw inserts.
What is the operating temperature range?
The enclosure is designed to operate within a temperature range of -40° C to 80° C.
What NEMA ratings does this enclosure meet?
This enclosure meets NEMA 1, 2, 3, 3S, 3X, 4, 4X, 12, and 13 standards.
What hardware is included with the enclosure?
The enclosures are shipped with mounting feet and panel mounting hardware.
What materials are available for the back panel?
Back panels are available in white/painted 14-gauge steel or 14-gauge aluminum.
Is a clear cover option available for the enclosure?
Yes, a clear polycarbonate cover is available for this enclosure.
How are back panels ordered?
Back panels are ordered separately from the enclosure.
What materials are used for the enclosure?
The enclosure features a polycarbonate molded base and cover, with stainless steel screws and brass screw inserts.
What is the operating temperature range?
The enclosure is designed to operate within a temperature range of -40° C to 80° C.
What NEMA ratings does this enclosure meet?
This enclosure meets NEMA 1, 2, 3, 3S, 3X, 4, 4X, 12, and 13 standards.
How to Install the CS863 Enclosure
This guide provides step-by-step instructions for installing and wiring the CS863 enclosure, ensuring proper setup and grounding.
Estimated time: 1h
Tools needed:
Screwdriver, Wire strippers, Multimeter, Hole saw
Supplies needed:
Mounting screws, Terminal connectors, Grounding bushing
- Mount the enclosure
Secure the CS863 enclosure to the desired surface using the mounting screws provided. Ensure the enclosure is level and securely attached.
- Cut conduit holes
Using a hole saw, cut the necessary conduit holes in the enclosure at the specified locations. Refer to the template dimensions for accurate placement.
- Connect metallic conduit
Attach the conduit connector to the conduit before securing it to the enclosure. Use the connector locknut to secure the connector into the prepared hole.
- Ground the enclosure
Install the grounding conductor by attaching a grounding bushing over the connector locknut. Ensure the enclosure is bonded according to the National Electrical Code.
- Verify connections
Use a multimeter to check all connections for continuity and proper grounding. Ensure there are no loose wires or connections.
