ABB - Installation Products CH4X1C-350 - 1-1/2 Inch Plenum-Gard orange corrugated non-metallic flexible conduit with tape, reel length-350 foot.
ABB - Installation Products

CH4X1C-350

UPC: 034481146254

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 350

Multiplier: 350

*Contact for lower quantities*

Overview

The ABB CH4X1C-350 1-1/2 Inch Plenum-Gard Orange Corrugated Non-Metallic Flexible Conduit is engineered for critical electrical installations requiring superior protection and flexibility, especially within plenum spaces. This conduit is constructed from high-quality non-metallic materials, ensuring compliance with stringent fire resistance and low smoke emission standards essential for air-handling spaces. The distinct orange color facilitates easy identification and adherence to safety regulations. Supplied on a 350-foot reel, it offers substantial length for extensive projects in commercial, industrial, and residential settings where dependable performance and safety are paramount. Its corrugated design significantly enhances flexibility, allowing for effortless routing around corners and through confined areas. This conduit is ideal for protecting electrical wiring in environments where standard conduits may not meet plenum requirements. The CH4X1C-350 features a 1-1/2 inch trade size and is manufactured in the US. Trust ABB Installation Products for durable, compliant, and high-performance conduit solutions designed for demanding applications. The UNSPSC code for this product is 39131706.
  • 1-1/2 Inch diameter for ample cable capacity.
  • Plenum-rated non-metallic construction for fire safety and low smoke emission.
  • Corrugated design provides excellent flexibility for easy installation.
  • Bright orange color for clear identification and code compliance.
  • 350-foot reel length for large-scale projects.

Specifications

Application
Plenum, riser and general purpose applications
Color
Orange
Inside Diameter
1.5 in
Inside Diameter
38.1 mm
Length
350 ft
Length
4200 in
Length
106680 mm
Material
PVDF
Material Quality
PVDF
Outside Diameter
1.88 in
Outside Diameter
47.752 mm
Special Features
Manufactured from PVDF resin which is extremely durable and resistant to abrasion and mechanical damage before/after cable installation
Standard
UL e151168
Trade Size
1-1/2 Inch
Type
Plenum-Gard Flexible Conduit
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.390 L
Package Weight (Metric)
0.177 kg
1-1/2 Inch Plenum-Gard orange corrugated non-metallic flexible conduit with tape, coil length-150 foot.

CH4X1C-150

1-1/2 Inch Plenum-Gard orange corrugated non-metallic flexible conduit with tape, coil length-150 foot.

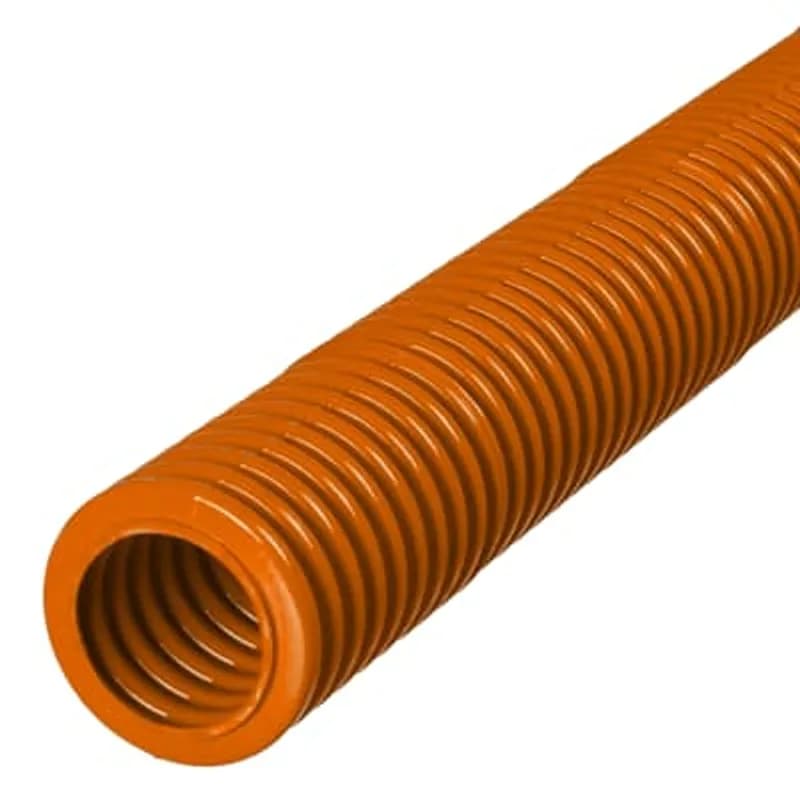

1-1/2 Inch Plenum-Gard orange corrugated non-metallic flexible conduit with tape, reel length-4000 foot.

CH4X1C-4000

1-1/2 Inch Plenum-Gard orange corrugated non-metallic flexible conduit with tape, reel length-4000 foot.
1-1/2 Inch Plenum-Gard orange corrugated non-metallic flexible conduit with tape, reel length-1200 foot.

CH4X1C-1200

1-1/2 Inch Plenum-Gard orange corrugated non-metallic flexible conduit with tape, reel length-1200 foot.
Low Density Polyethylene Duct, 1-1/2 Inch, Corrugated X-Flex split, Orange, 250 Foot coil.

L9D3E1JNNA250

Low Density Polyethylene Duct, 1-1/2 Inch, Corrugated X-Flex split, Orange, 250 Foot coil.

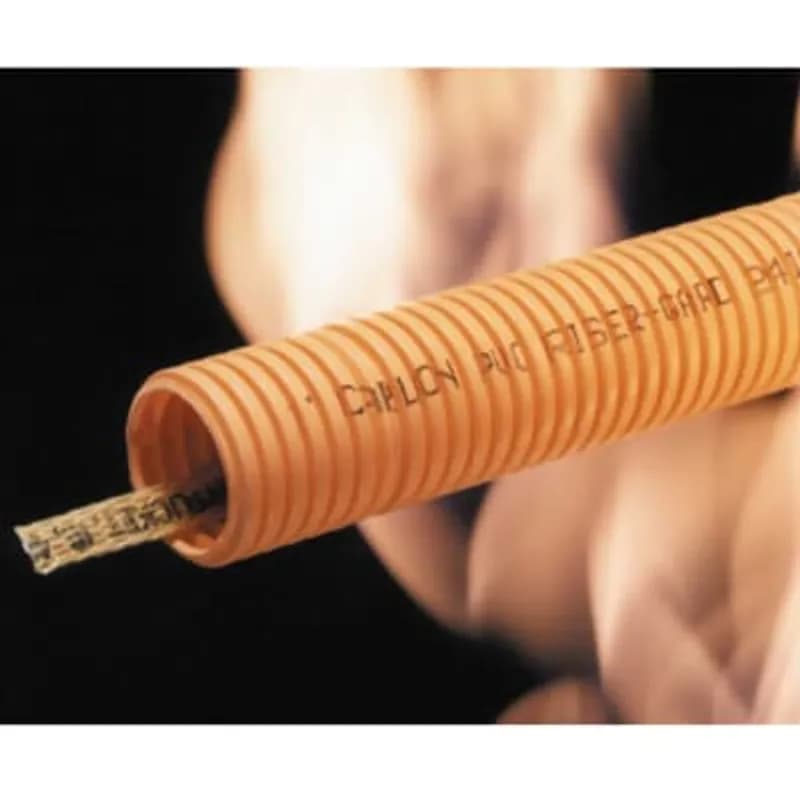

Riser-Gard Fiber Optic Corrugated Conduit, Size 1-1/2 Inch, Outer Diameter 1.91 Inch, Inner Diameter 1.54 Inch, Wall Thickness 0.080 Inch, Length 300 Feet, Material PVC, Color Orange, with Pull Tape

DH4X1C-300

Riser-Gard Fiber Optic Corrugated Conduit, Size 1-1/2 Inch, Outer Diameter 1.91 Inch, Inner Diameter 1.54 Inch, Wall Thickness 0.080 Inch, Length 300 Feet, Material PVC, Color Orange, with Pull Tape

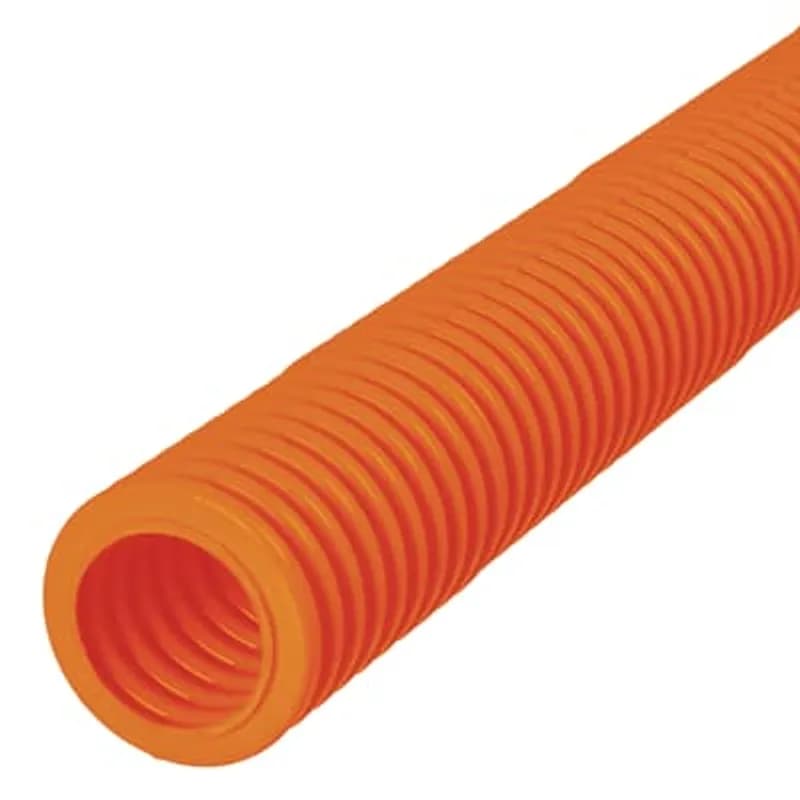

Riser-Gard Fiber Optic Corrugated Conduit, Size 1-1/2 Inch, Outer Diameter 1.91 Inch, Inner Diameter 1.54 Inch, Wall Thickness 0.080 Inch, Length 150 Feet, Material PVC, Color Orange, with Pull Tape
