UPC: 704508000103
Documents & Media
Contact for Pricing
Overview

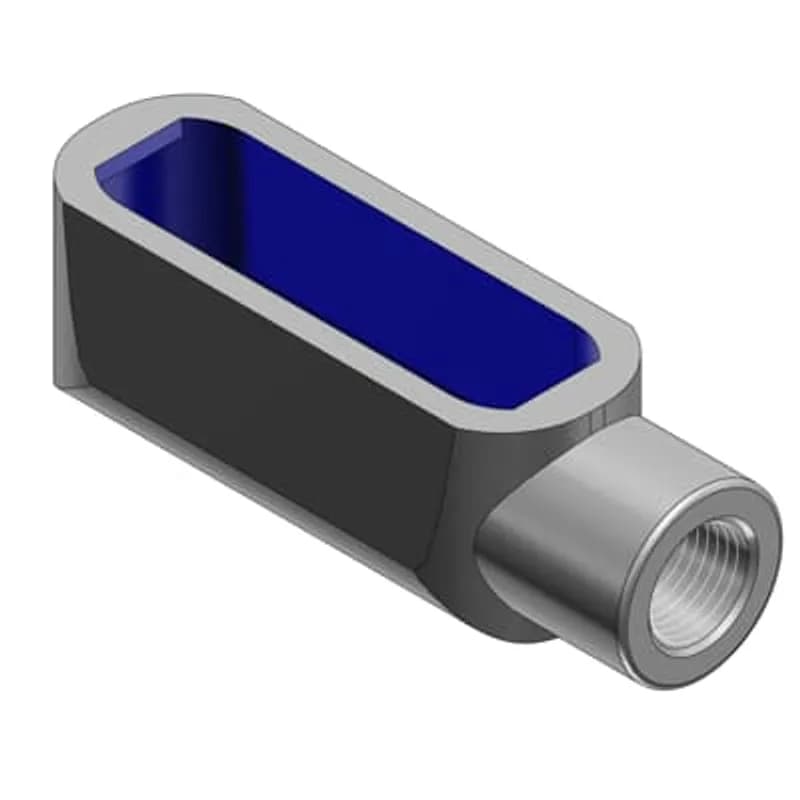

- Form 7 C-shape conduit body for directional changes and wire pulling
- 3/4-inch (21 metric) size with threaded hubs and pressure-sealing sleeves
- Double-coated PVC (40 mil exterior, 2 mil interior urethane) for corrosion resistance
- Encapsulated stainless steel screws and Type 4X Form 8 compliant
- Flat-seal design between body and cover for leak-proof performance
Specifications
Application | Act As Pull Outlets for Conductors that are Stiff, Due to Large Size or Type of Insulation |
Color | Dark Gray |
Color | Gray |
Finish | PVC Coated |
Form | Form 7 |
Height | 1.6 in |
Height | 40.64 mm |
Hub Size | 3/4 in , 21 mm |
Hub Size | 3/4 |
Hub Size | 21 |
Length | 6.05 in |
Length | 153.67 mm |
Material | Iron |
Material Quality | Iron |
Special Features | The Conduit Body and Cover are Double Coated with a Nominal .002 In. Blue Urethane on Both The Interior and Exterior, Before PVC Coating is Applied |
Standard | UL E2969 |
Type | Form 7 Conduit Body |
Width | 1.65 in |
Width | 41.91 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.850 L |
Package Weight (Metric) | 0.839 kg |
