ABB - Installation Products C10-PS-D - Non-Insulated Parallel Splice, Length 0.30 Inch, Outer Diameter 0.22 Inch, Inner Diameter 0.17 Inches, Wire Range #12-#10 AWG 5,180 kcmil-13,100 kcmil, Copper, Tin Plated
ABB - Installation Products

C10-PS-D

UPC: 786210936277

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 500

Multiplier: 500

*Contact for lower quantities*

Overview

The ABB C10-PS-D Non-Insulated Parallel Splice (SKU: C10-PS-D) is a high-performance, tin-plated copper connector engineered for secure and reliable electrical connections in industrial and commercial applications. Designed by ABB—Installation Products, this non-insulated parallel splice is optimized for splicing two solid or stranded copper wires together to repair or lengthen circuits, ensuring continuous electrical flow with minimal resistance. With a compact length of 0.30 inches, an outer diameter of 0.22 inches, and an inner diameter of 0.17 inches, the C10-PS-D accommodates wire sizes ranging from #12 to #10 AWG, supporting current-carrying capacities from 5,180 kcmil to 13,100 kcmil—ideal for heavy-duty wiring systems. Key features include a brazed seam that prevents terminal barrel splitting during crimping, ensuring long-term mechanical integrity. The internal wire stop guarantees proper insertion depth, eliminating guesswork and reducing installation errors. The non-insulated barrel design offers an economical termination solution when insulation is not required, making it suitable for applications where space and cost efficiency are critical. This splice is UL Flammability rated UL 94V-0 and supports a maximum insulation temperature of 221°F (105°C), ensuring safety in high-temperature environments. It is UL and CSA certified up to 600V per UL 486C, providing compliance with stringent electrical standards. The tin-plated copper construction delivers excellent corrosion resistance, enhancing durability and reliability in demanding industrial settings. Recommended installation tools include the CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, and UP14ZLW, ensuring compatibility with standard crimping equipment. With a standard package quantity of 50 and bulk packaging options available, the ABB C10-PS-D is designed for efficiency in both small-scale repairs and large-scale installations. Trust ABB’s proven expertise in electrical installation products for dependable splicing solutions that meet the demands of modern industrial applications.
  • Non-insulated parallel splice for #12-#10 AWG copper wires
  • Tin-plated copper construction for corrosion resistance and durability
  • Brazed seam prevents barrel splitting during crimping
  • Internal wire stop ensures proper insertion depth
  • UL Flammability UL 94V-0 and UL/CSA certified up to 600V

Specifications

Color
Metallic
Connection Type
Parallel Splice
Finish
Tin Plated
Material
Copper
Material
Copper, Tin Plated
Size
Length: 0.30 Inch, Outer Diameter: 0.22 Inch, Inner Diameter: 0.17 Inch
Special Features
Resistant to corrosion and preserve the electrical integrity of the wires in single or multiple strands. Feature an intelligent constructable part number for quick identification of the wire range
Standard
UL E9809
Standard
UL E9809 / UL E9809
Type
Non-Insulated Parallel Splice
Voltage Rating
600 V
Wire Range
#12-#10 AWG 5,180 kcmil-13,100 kcmil
Package Dimensions (L x W x H)
3.25 IN x 2.75 IN x 2.25 IN
Package Dimensions (L x W x H)
8.255 cm x 6.985 cm x 5.715 cm
Package Weight (Imperial)
0.001 L
Package Weight (Metric)
0.001 kg
Non-Insulated Butt Splice, Length 0.99 Inch, Width 0.27 Inch, Wire Range 10-8 AWG, Copper, Tin Plated

2D-8

Non-Insulated Butt Splice, Length 0.99 Inch, Width 0.27 Inch, Wire Range 10-8 AWG, Copper, Tin Plated
Non-Insulated Butt Splice, Length 0.63 Inches, Width 0.13 Inches, Wire Range 22-18 AWG, Copper, Tin Plated, 100 Pack

2A-18

Non-Insulated Butt Splice, Length 0.63 Inches, Width 0.13 Inches, Wire Range 22-18 AWG, Copper, Tin Plated, 100 Pack
Non-Insulated Butt Splice, Length 1.12 Inches, Width 0.307 Inch, Wire Range 6 AWG, Copper, Tin Plated

2E-6

Non-Insulated Butt Splice, Length 1.12 Inches, Width 0.307 Inch, Wire Range 6 AWG, Copper, Tin Plated
Non-Insulated Butt Splice, Length 1.12 Inches, Width 0.307 Inch, Wire Range 6 AWG, Copper, Tin Plated, 200 Pack

EE2

Non-Insulated Butt Splice, Length 1.12 Inches, Width 0.307 Inch, Wire Range 6 AWG, Copper, Tin Plated, 200 Pack
Non-Insulated Butt Splice, Length 0.63 Inch, Width 0.12 Inches, Wire Range 22-16 AWG, Copper, Tin Plated, 1,000 Pack

AA2

Non-Insulated Butt Splice, Length 0.63 Inch, Width 0.12 Inches, Wire Range 22-16 AWG, Copper, Tin Plated, 1,000 Pack
Non-Insulated Butt Splice, Length 1.12 Inches, Width 0.377 Inch, Wire Range 4-3 AWG, Copper, Tin Plated

2F-4

Non-Insulated Butt Splice, Length 1.12 Inches, Width 0.377 Inch, Wire Range 4-3 AWG, Copper, Tin Plated
Non-Insulated Butt Splice, Length 0.63 Inch, Width 0.16 Inch, Wire Range 18-14 AWG, Copper, Tin Plated, 100 Pack

2B-14

Non-Insulated Butt Splice, Length 0.63 Inch, Width 0.16 Inch, Wire Range 18-14 AWG, Copper, Tin Plated, 100 Pack
Non-Insulated Parallel Splice, Length 0.75 Inch, Outer Diameter 0.571 Inch, Inner Diameter 0.446 Inch, Wire Range 1/0 AWG, 83,700-119,500 kcmil, Copper, Tin Plated

H1/0-PS-C

Non-Insulated Parallel Splice, Length 0.75 Inch, Outer Diameter 0.571 Inch, Inner Diameter 0.446 Inch, Wire Range 1/0 AWG, 83,700-119,500 kcmil, Copper, Tin Plated
Non-Insulated Parallel Splice, Length .770 Inches, Outer Diameter .766 Inches, Inner Diameter .629 Inches, Wire Range 4/0 AWG 190,000kcmi-231,100kcmil, Copper, Tin Plated

L4/0-PS-L

Non-Insulated Parallel Splice, Length .770 Inches, Outer Diameter .766 Inches, Inner Diameter .629 Inches, Wire Range 4/0 AWG 190,000kcmi-231,100kcmil, Copper, Tin Plated

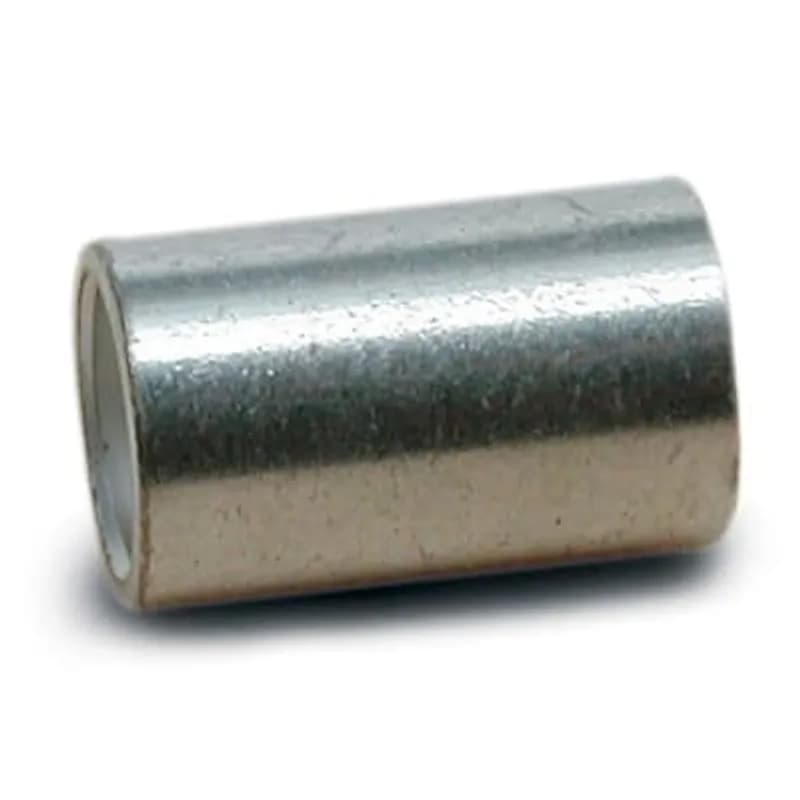

Non-Insulated Parallel Splice Connector For Wire Range 300 MCM For Circular Mil Range 300,000-380,000 Length 1.125 Diameter 1.1,Metallic
