Overview
- Four compartment design for organized cable management
- 172 cubic inches of internal volume
- Durable galvanized steel construction
- Gray cover for a finished appearance
- Includes left and right power panels and wiring tunnel
Specifications
Application | For use with most types of raised floors including ridged or waffled floor panels, carpet or tile |
Color | Gray |
Knockouts | True |
Material | Galvanized Steel |
Series | AFM-6S2 |
Size | 10 in (L) x 7-15/16 in (W) x 2-1/2 in (D) |
Special Features | Easy to install and designed to blend with any decor |
Standard | UL E2969 |
Standard | UL E2969 / UL E2969 |
Type | Access Floor Modules |
Package Dimensions (L x W x H) | 20.4 IN x 9.8 IN x 12.9 IN |
Package Dimensions (L x W x H) | 51.816 cm x 24.892 cm x 32.766 cm |
Package Weight (Imperial) | 7.450 L |
Package Weight (Metric) | 3.379 kg |
AFM 6 GRY

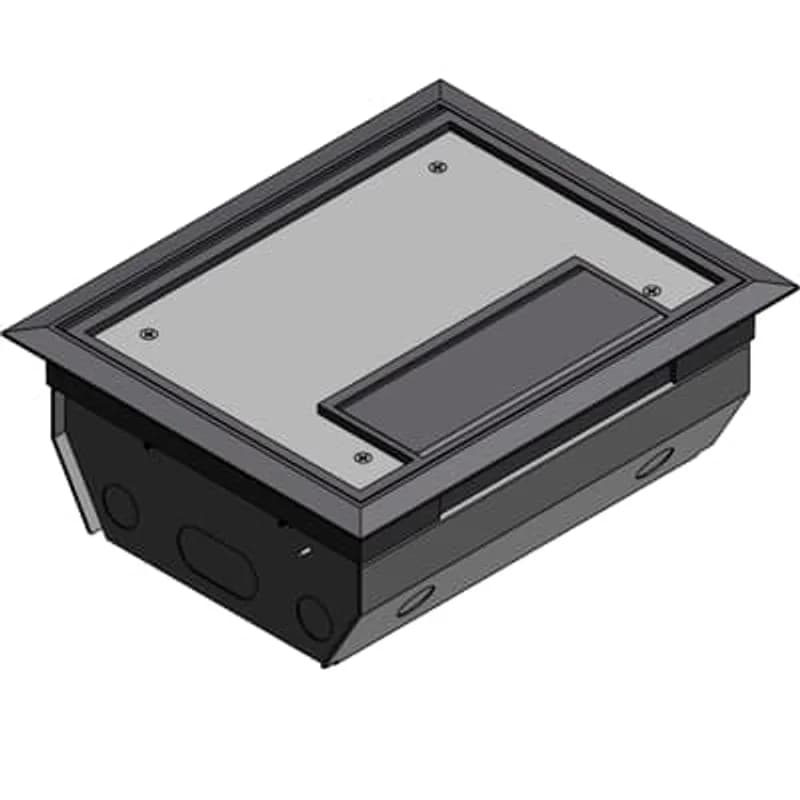

Three Compartment Raised Access Floor Module, 225 Cubic Inches, Floor Cut Out Length 7-15/16 Inches, Width 10 Inches, Cover Size Length 7-5/8 Inches, Width 9-3/4 Inches, Depth 4 Inches, Galvanized Steel with Gray Cover
AFM 8 GRY

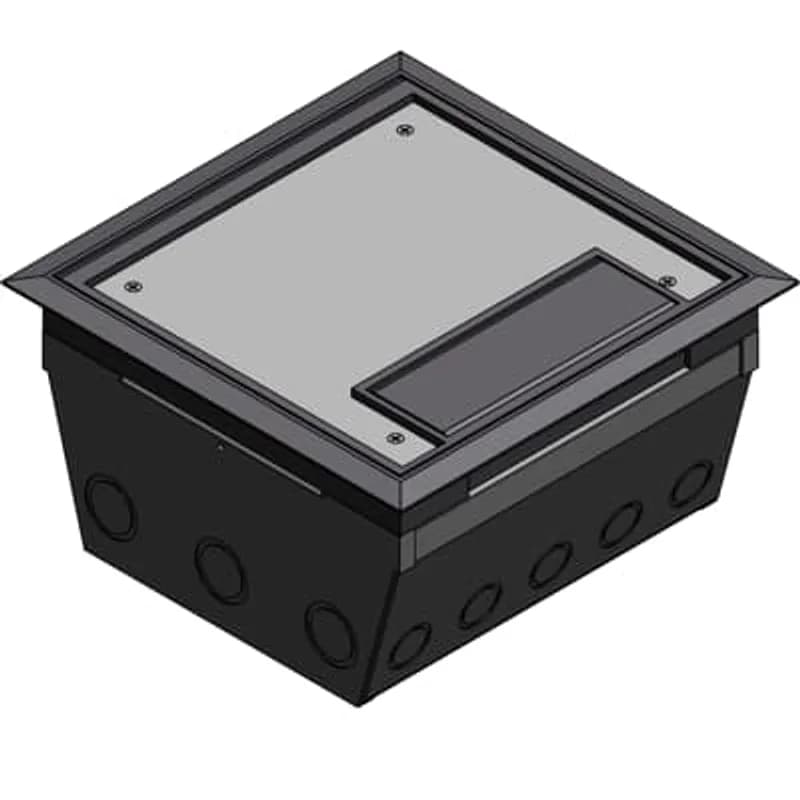

Ten Compartment Raised Access Floor Module, 325 Cubic Inches, Floor Cut Out Length 9-5/8 Inches, Width 9-5/8 Inches, Cover Size Length 9-3/8 Inches, Width 9-3/8 Inches, Depth 5-5/8 Inches, Galvanized Steel with Gray Cover
AFM 4 GRY

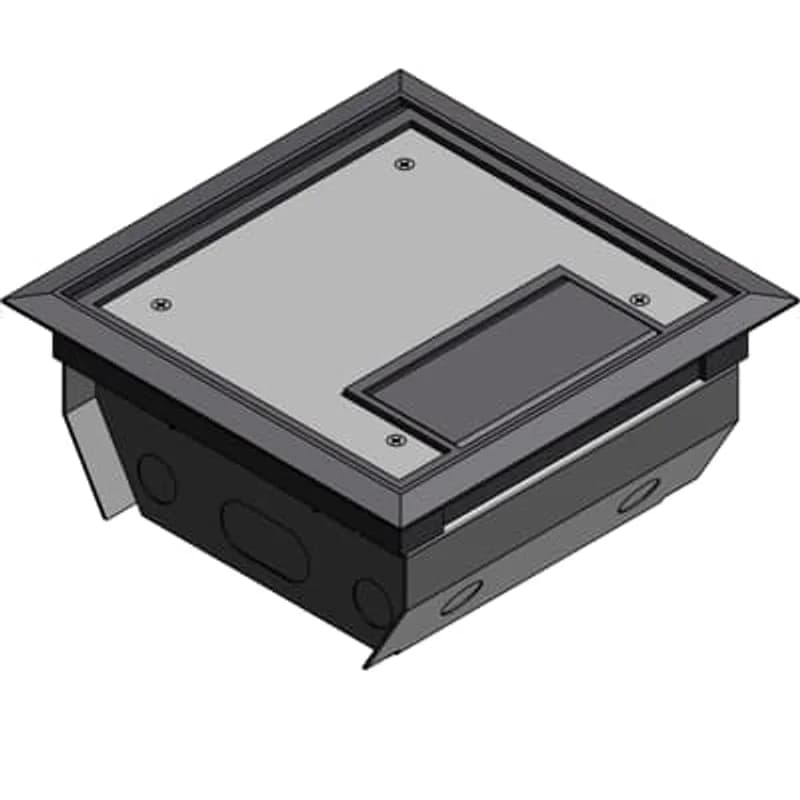

Three Compartment Raised Access Floor Module, 150 Cubic Inches, Floor Cut Out Length 7-15/16 Inches, Width 7-15/16 Inches, Cover Size Length 7-5/8 Inches, Width 7-5/8 Inches, Depth 4 Inches, Galvanized Steel with Gray Cover
AFM 2 GRY

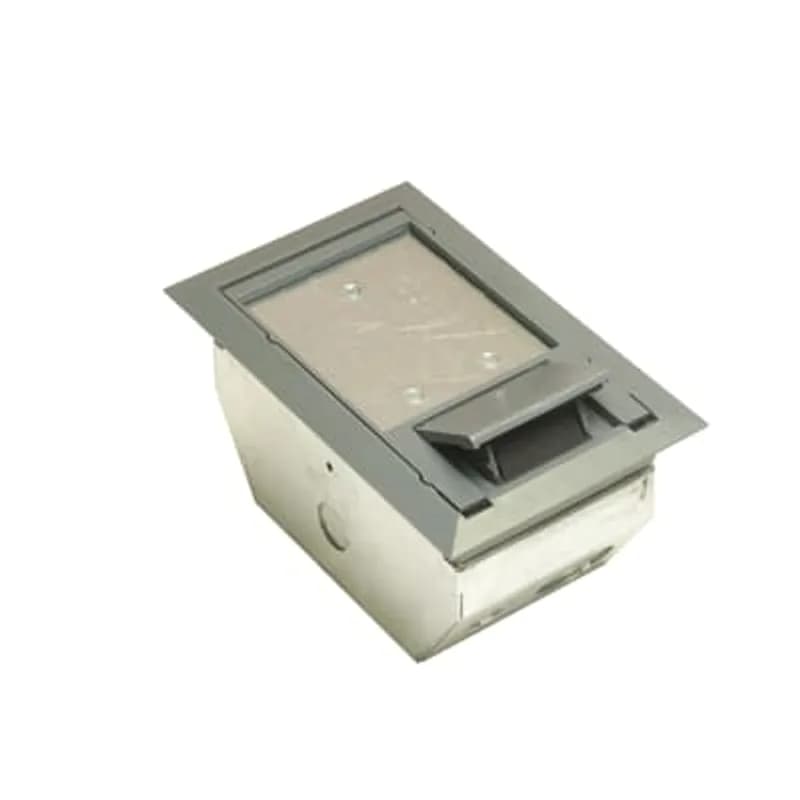

Two Compartment Raised Access Floor Module, 75 Cubic Inches, Floor Cut Out Length 7-1/8 Inches, Width 4-1/8 Inches, Cover Size Length 6-3/4 Inches, Width 3-7/8 Inches, Depth 4 Inches, Galvanized Steel with Gray Cover
668-TRIM-BRS

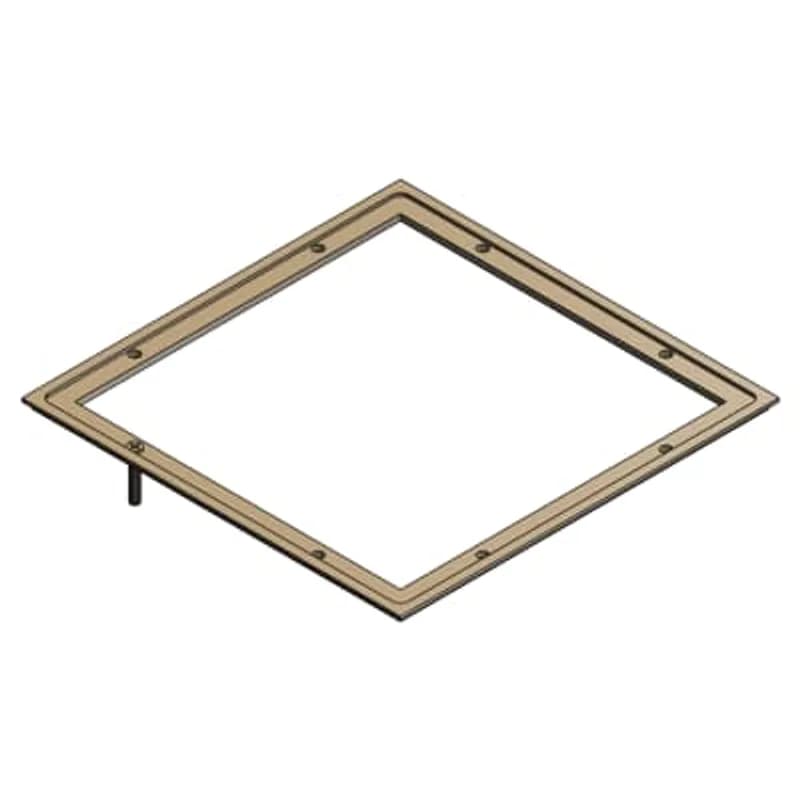

Trim Ring, Brass Powder Coat, For Four Gang Ultra-Shallow Recessed Service Floor Box, 192 Cubic Inches for Device Access and 41/55 Cubic Inches for Device Compartments, Length 13-1/4 Inches, Width 15-1/4 Inches, Depth 2-1/2 Inches, 3/4 Inch Knockouts, Galvanized Steel, Provides High Capacity Power and Data Solution for Shallow Concrete Floors

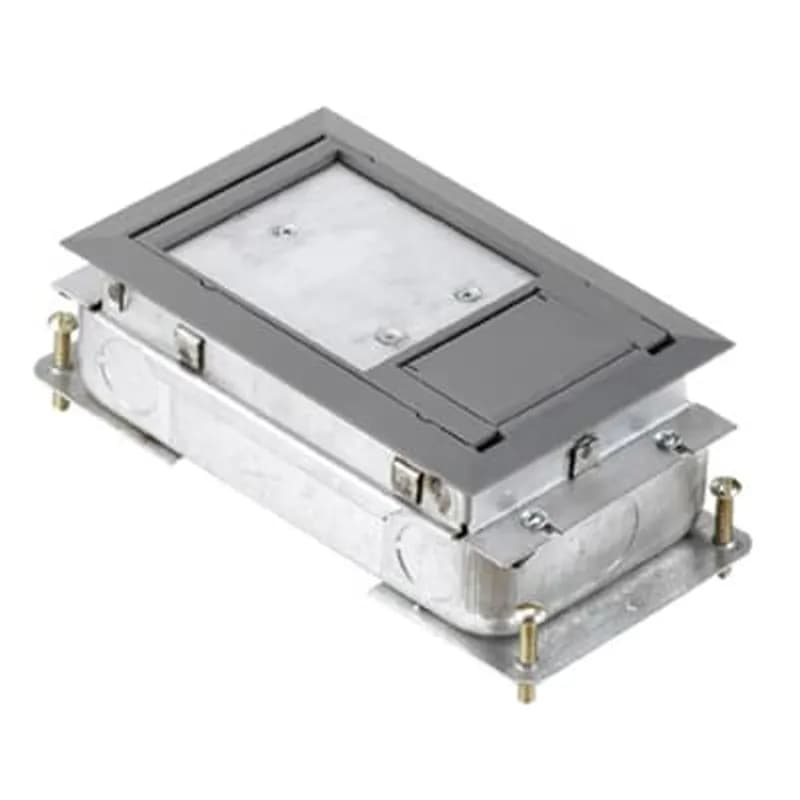

664 S
Two Gang Recessed Service Floor Box, 70 Cubic Inches, Length 10-1/4 Inches, Width 4-11/16 Inches, Depth 2-7/8 Inches, 3/4 Inch and 1 Inch Knockouts, Cast Iron, Delivers Power, Communications and Data from Standard Conduit with No Exposed Service Fittings
RPT6-3G-BLKC
Recessed Three-Gang Poke Through, Cover Diameter 8 Inches, Core Drill Size 6 Inches, Depth 11-1/2 Inches, Knockout Size 1 Inch, Finish Black Powder Coated Aluminum, Box Material Steel
742S

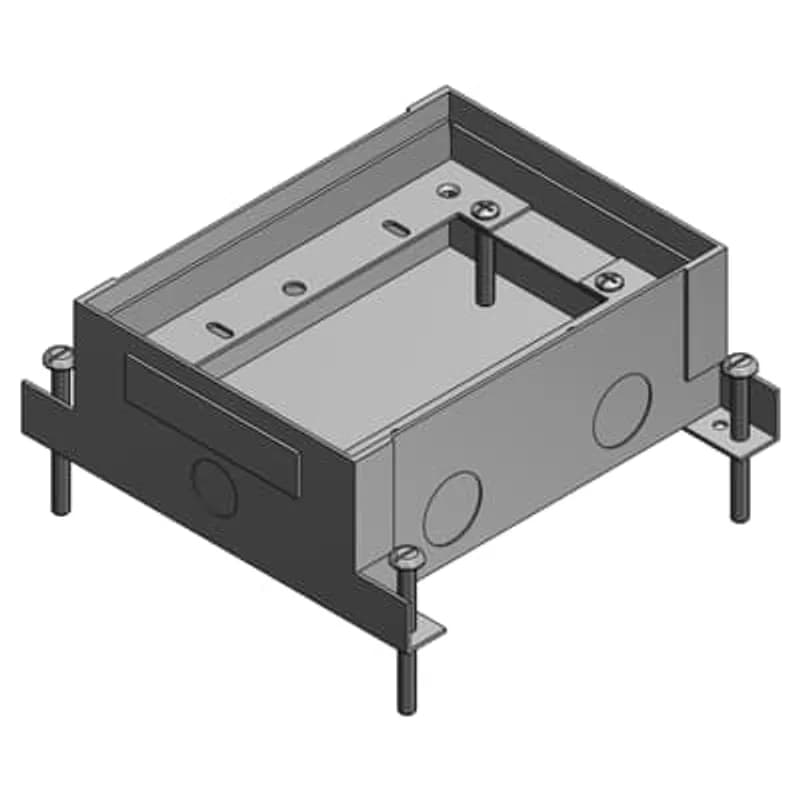

Two Gang Shallow Flush Service Floor Box, 52 Cubic Inches, Length 7-1/4 Inches, Width 5-1/2 Inches, Depth 2-5/8 Inches, 1/2 Inch 3/4 Inch and 1-1/4 Inch Knockouts, Galvanized Steel, For Power or Communications/Data
664 S WT

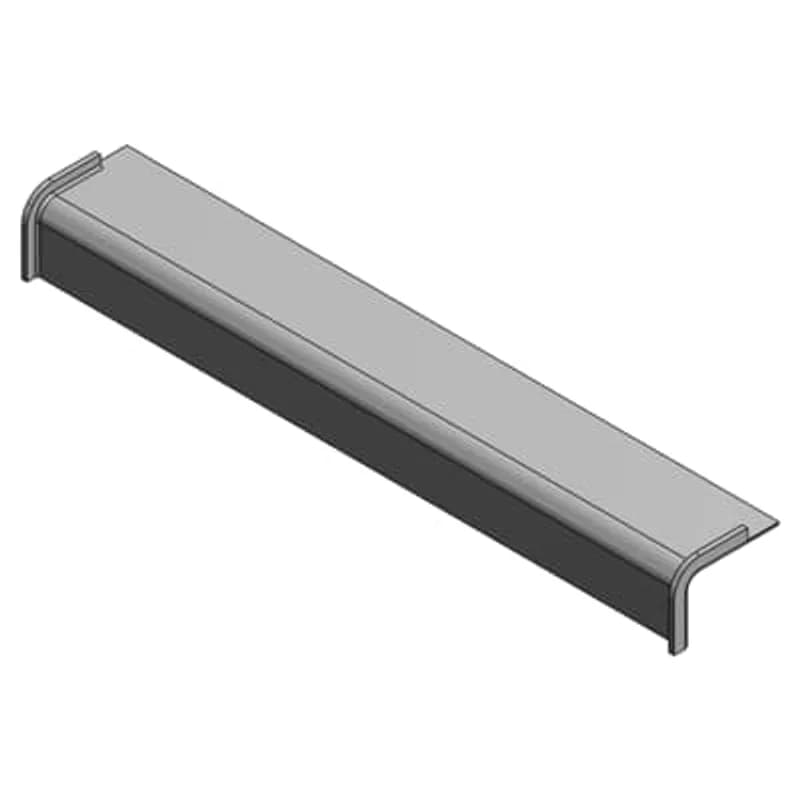

Wire Tunnel, Galvanized Steel, For use with Two Gang Recessed Service Floor Box, 70 Cubic Inches, Length 10-1/4 Inches, Width 4-11/16 Inches, Depth 2-7/8 Inches, 3/4 Inch and 1 Inch Knockouts, Cast Iron, Delivers Power, Communications and Data from Standard Conduit with No Exposed Service Fittings
663-SC

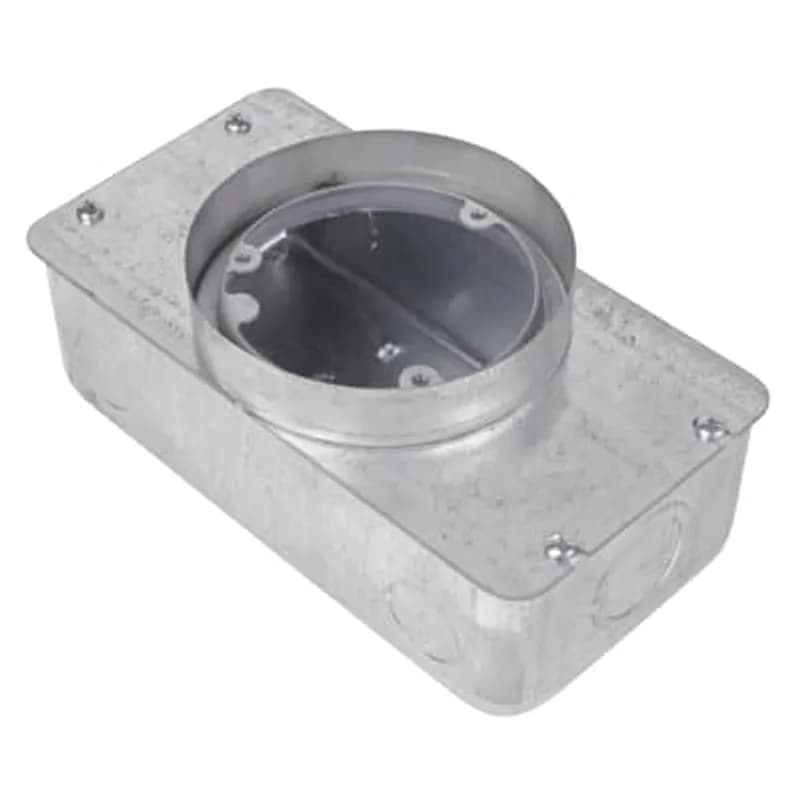

Two Gang Recessed Service Floor Box, 90 Cubic Inches, Length 8-13/16 Inches, Width 4-11/16 Inches, Depth 3-5/8 Inches, 3/4 Inch and 1-1/4 Inch Knockouts, Galvanized Steel, Wiring Device Duplex and or Data/Voice
How to Install the AFM-6S2-GRY Access Floor Module
This guide provides step-by-step instructions for installing the AFM-6S2-GRY Access Floor Module, including mounting, wiring, and initial setup.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors, Caulk or sealant, Petroleum jelly
- Cut the hole for the module
Cut a hole in the raised panel according to the dimensions of the AFM-6S2 (7-15/16" x 10").
- Install the AFH Bracket
Place the AFH Bracket in the center of the cutout opening and fold the legs around the edge to secure it tightly against the floor panel.
- Apply sealant
Before lowering the AFM-6S2 into the hole, apply caulk or sealant to the underside of the Carpet Flange to prevent water entry.
- Lower the module
Carefully lower the AFM-6S2 into the cut hole and attach conduit as required to meet wiring needs and comply with National Electrical Code.
- Secure the module
Install 1-1/8" long screws to engage the bracket and secure the AFM-6S2 in place.
- Condition the gaskets
Apply a light coating of petroleum jelly to the gaskets on the Cord Door and Carpet Flange to keep them supple and prevent water entry.
- Connect wiring
Open the cover of the AFM-6S2 and attach the device(s) as required, ensuring all wiring is installed in accordance with National Electrical Code and local codes.
- Close the module
Close the cover of the AFM-6S2, ensuring that the Cord Door is open to route any electrical or data cords.
