Overview
- 30 Amp rated for heavy-duty industrial use
- 3/4-inch NPT threading for top or bottom conduit entry
- Compatible with poly and metal boxes
- Supports wiring from 1/0 AWG to 444 MCM (185 mm² stranded)
- Meets North American and IEC/CE standards
Specifications
Application | For use where electrical connections need protection from water and/or dust entrance to the contacts or the wiring compartment |
Connection Type | Conduit Adapter (Plug or Connector) |
Current Rating | 30 A |
Material | DuraV |
Material | Durable industrial material |
Series | DuraGard |
Size | 3/4 Inch |
Special Features | Not just "watertight", Waterproof for washdown duty (DurORing Sealing) that eliminates the need for costly "weather boots" or "adapters." |
Type | DuraGard Waterproof Connections |
Package Dimensions (L x W x H) | 1.75 IN x 1.5 IN x 1.5 IN |
Package Dimensions (L x W x H) | 4.445 cm x 3.81 cm x 3.81 cm |
Package Weight (Imperial) | 0.220 L |
Package Weight (Metric) | 0.100 kg |
9MT34U1W30B
Safety Interlock with Circuit Breaker and Screw Cap, 30Amp, 3 Pole 4 Wire, 125/250 Volts, Trip Rating 30Amp, Conduit Hub Location Top
DBRF330703000
MaxGard Interlocked Receptacle with Circuit Breaker, 30 Amp, 3 Pole 4 Wire, 125/250V, 60Hz, Breaker Trip Rating 30 Amp
9MI34U2WNAA/75
DuraGard Rotary Controlled, Watertight, Non-Metallic Interlocked Receptacle- 30 Amp, 30 250V
9MT34U5W30B

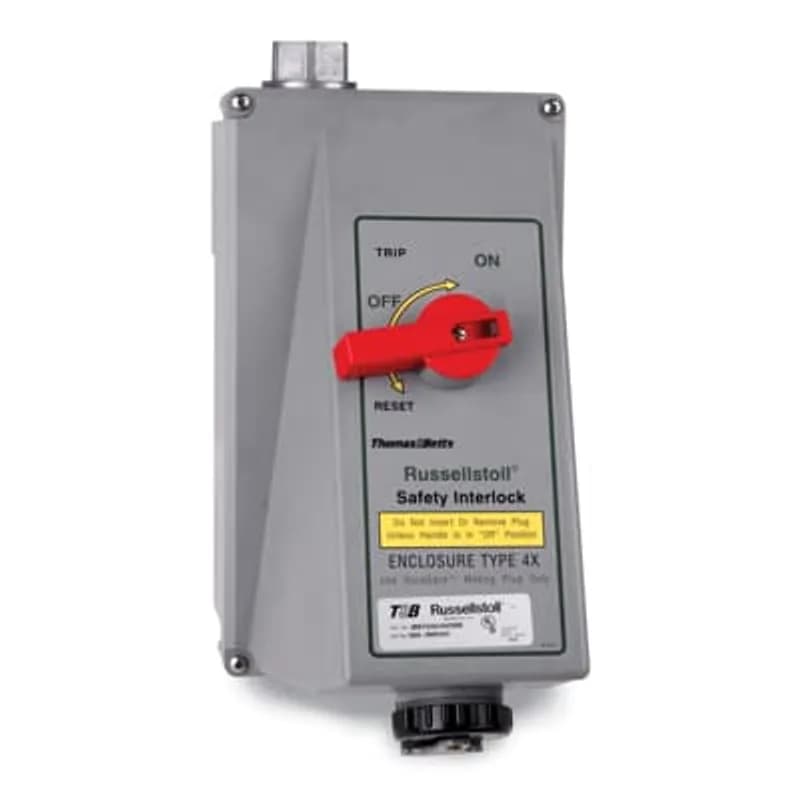

DuraGard Watertight Safety Interlock with Circuit Breaker, 30 600V, 30 Amp with 30 Amp trip rating
F34331B
Lock Out Box for Interlocked Switch, 30 Amp, 480Volts, 3 Pole 4 Wire, Automotive/Heavy Industrial I-Beam Web Mount, FS/FD Interface
How to Install the 9X3C75 Connector
This guide provides step-by-step instructions for installing and wiring the 9X3C75 connector for industrial applications.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Torque wrench, Ohmmeter
Supplies needed:
Mounting screws, Terminal connectors, Conduit adapter
- Turn off power
De-energize all power to the circuit where the 9X3C75 connector will be installed to prevent electrical shock.
- Disassemble the connector
Remove the gland nut, seal, conduit adapter, liner, and interior from the connector housing to prepare for wiring.
- Prepare and connect wires
Slide the seal and liner over the supply wires. Strip the wires according to the amperage rating and insert them into the appropriate contacts, ensuring proper phasing and grounding.
- Reassemble the connector
Reassemble the interior into the housing, ensuring the liner is flush with the top edge. Thread the gland nut onto the housing and tighten it securely.
- Perform electrical tests
Use an ohmmeter to check continuity and insulation resistance of the wiring to ensure there are no short circuits or grounding issues before powering on the system.
