UPC: 785991618822
Contact for Pricing
Minimum Qty: 4
Multiplier: 4
*Contact for lower quantities*
Overview
- 90 cubic inch capacity for multiple power, data, and communication connections
- Four 3/4-inch, four 1-inch, and four 1-1/4-inch concentric knockouts for flexible conduit routing
- Electro-galvanized steel construction for corrosion resistance and durability
- Recessed design with concealed service fittings for safety and clean installation
- Compact dimensions: 10-1/4" L x 4-11/16" W x 3-3/4" D for space-efficient flooring integration
Specifications
Application | Multiple service floor box that deliver power, communications and data from standard conduit with no exposed service fittings |
Cable Entry | Knockouts |
Cubic Capacity | 90 in3 |
Knockouts | True |
Material | Stamped Steel |
Material | Electro-Galvanized Steel |
Mounting Type | Recessed |
Series | 664 |
Size | 10-1/4" x 4-11/16" x 3-3/4", 90 cu. in. |
Special Features | Hinged floor plate is steel reinforced for superior load bearing and provides easy access to devices |
Standard | UL E2969 / UL E2969 |
Type | Recessed Service |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 3.520 L |
Package Weight (Metric) | 1.597 kg |
664 S
Two Gang Recessed Service Floor Box, 70 Cubic Inches, Length 10-1/4 Inches, Width 4-11/16 Inches, Depth 2-7/8 Inches, 3/4 Inch and 1 Inch Knockouts, Cast Iron, Delivers Power, Communications and Data from Standard Conduit with No Exposed Service Fittings
742S
Two Gang Shallow Flush Service Floor Box, 52 Cubic Inches, Length 7-1/4 Inches, Width 5-1/2 Inches, Depth 2-5/8 Inches, 1/2 Inch 3/4 Inch and 1-1/4 Inch Knockouts, Galvanized Steel, For Power or Communications/Data

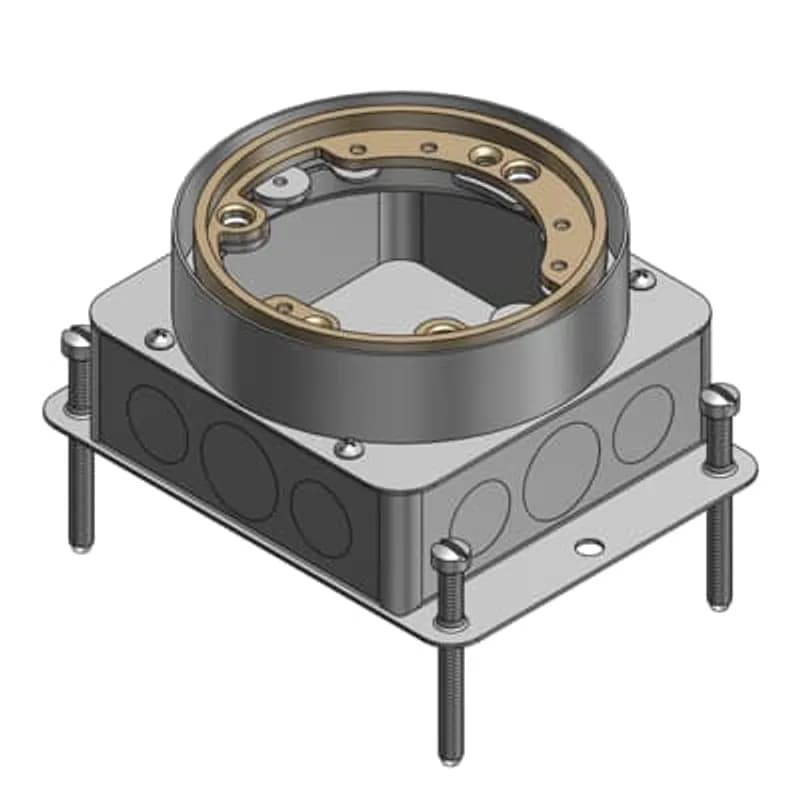

68 S
Single Gang Flush Service Floor Box, 47 Cubic Inches, Length 4-11/16 Inches, Width 4-1/4 Inches, Depth 2-3/4 Inches, 1/2 Inch 3/4 Inch Knockout, Galvanized Steel, For Power or Communications/Data
663-SC
Two Gang Recessed Service Floor Box, 90 Cubic Inches, Length 8-13/16 Inches, Width 4-11/16 Inches, Depth 3-5/8 Inches, 3/4 Inch and 1-1/4 Inch Knockouts, Galvanized Steel, Wiring Device Duplex and or Data/Voice

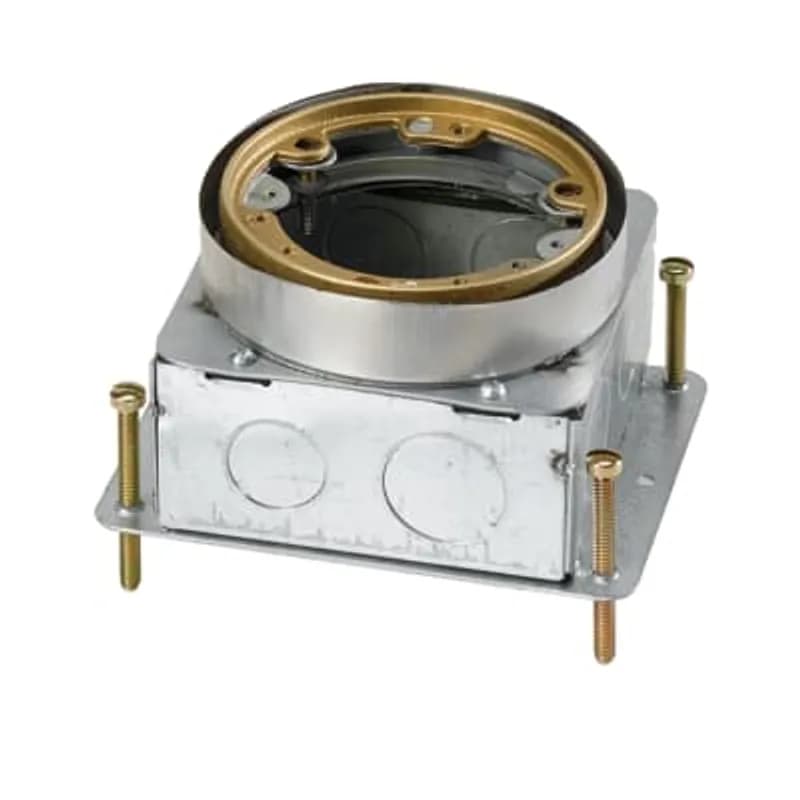

68 D
Single Gang Deep Flush Service Floor Box, 60 Cubic Inches, Length 4-11/16 Inches, Width 4-1/4 Inches, Depth 3-5/8 Inches, 1/2 Inch 3/4 Inch and 1 Inch Knockouts, Galvanized Steel, For Power or Communications/Data
88 S
Single Gang Flush Service Box, 23 Cubic Inches, Opening Diameter 3 Inches, Length 5-3/4 Inches, Depth 2-3/4 Inches, 1/2 Inch and 3/4 Inch Knockouts, Cast Iron, For Single Short-Strap Receptacles or Communications

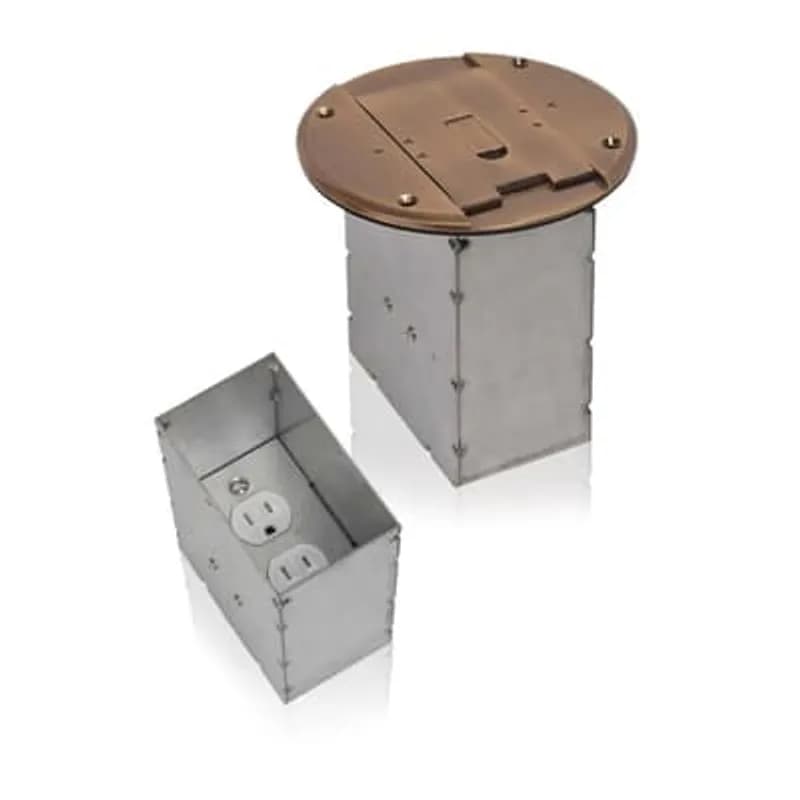

78WRB
Recessed Floor Box, Volume 29 Cubic Inches, Diameter 6.05 Inches, Depth 6.048 Inches, Knockout Size 1/2 Inch, Finish Brass, Material Galvanized Steel
RPT6-3G-BRSC
Recessed Three-Gang Poke Through, Cover Diameter 8 Inches, Core Drill Size 6 Inches, Depth 11-1/2 Inches, Knockout Size 1 Inch, Finish Brass, Box Material Steel

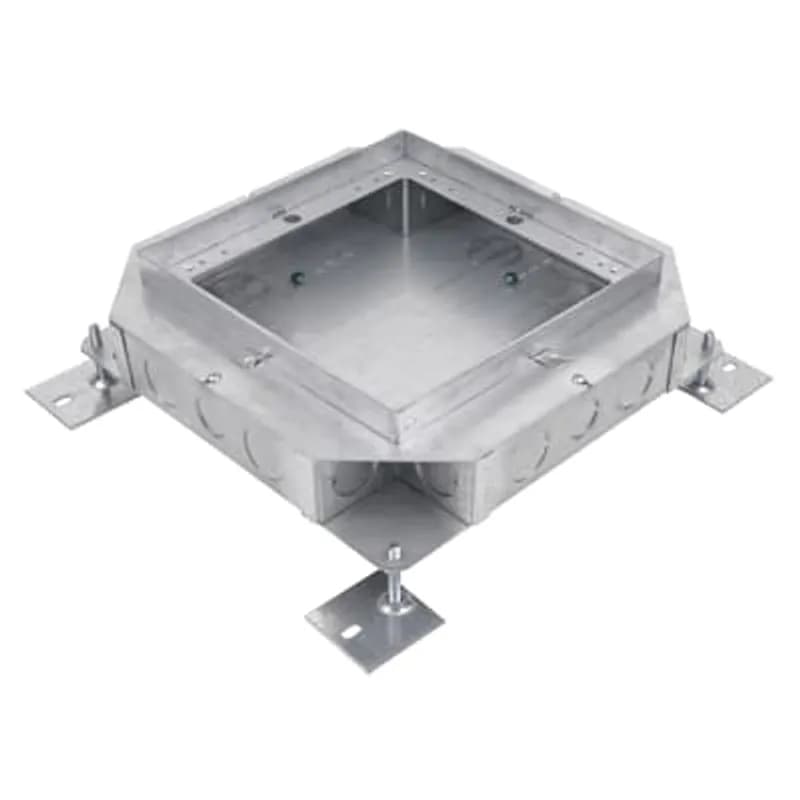

667-SC
Four Gang Recessed Service Floor Box, 128 Cubic Inches, 13 Inches Square, Depth 3 Inches, Galvanized Steel, 3/4 Inch 1 Inch and 1-1/4 Inch Knockouts, Delivers Power, Communications and Data from Standard Conduit with No Exposed Service Fittings
667-2G
Device Plate for Recessed Service Floor Box, Galvanized Steel, 2 GFI Receptacles, For use with 667 Boxes

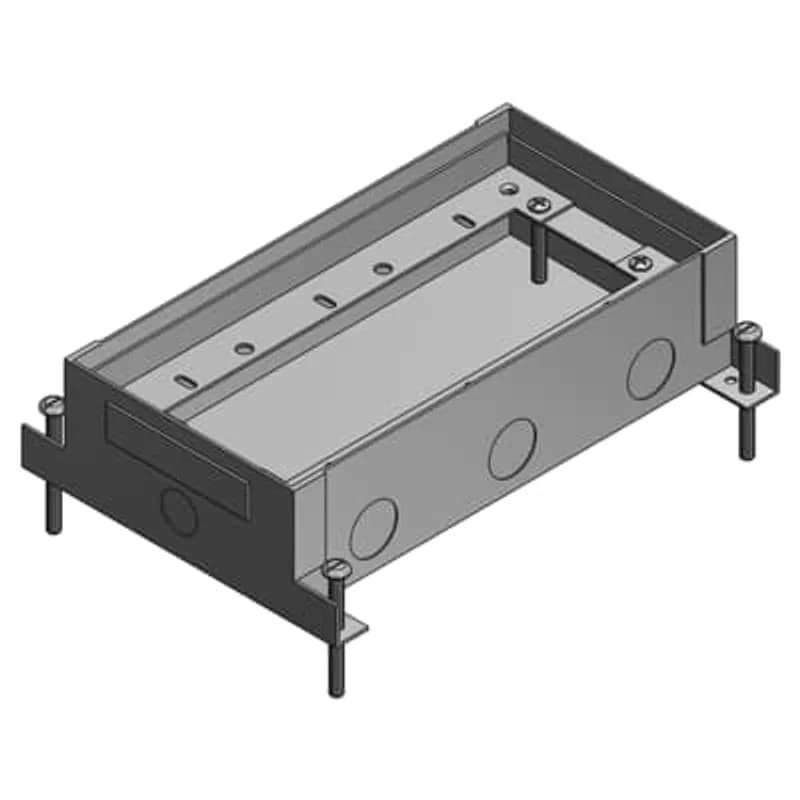

743S
Three Gang Shallow Flush Service Floor Box, 78 Cubic Inches, Length 7-1/4 Inches, Width 5-1/2 Inches, Depth 2-5/8 Inches, 1/2 Inch 3/4 Inch and 1-1/4 Inch Knockouts, Galvanized Steel, For Power or Communications/DataRPT6-3G-ALMC
Recessed Three-Gang Poke Through, Cover Diameter 8 Inches, Core Drill Size 6 Inches, Depth 11-1/2 Inches, Knockout Size 1 Inch, Finish Aluminum, Box Material SteelHow to Install the 664-SC Floor Box
This guide provides step-by-step instructions for installing the 664-SC floor box, including mounting, wiring, and activation procedures.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Level
Supplies needed:
Leveling screws, Conduit, Concrete cover, Device panels
- Install leveling screws
Install the leveling screws supplied with the box and place the box on a firm support.
- Attach conduit
Attach conduit in the appropriate knockout (K.O.) or tapped holes as required to meet your wiring needs. Ensure that device panels are installed prior to using the center K.O.'s.
- Level and secure the box
Level the floor box to the desired height using the leveling screws and secure it to the form or ground.
- Prepare for concrete pour
Ensure the temporary concrete cover is securely in place prior to the concrete pour.
- Activate the box
After the concrete has cured, locate the box and remove any concrete covering cap. Remove the concrete cover to expose the inside of the box.
- Install device panels
Attach the device(s) to the selected panel(s) as per the catalog and install the panel(s) in the box.
- Complete wiring
Install all wiring and devices in accordance with the National Electric Code and all local codes.
- Attach the cover
Attach the 664-CST cover (ordered separately) to complete the installation.
