UPC: 786210541839
Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Overview

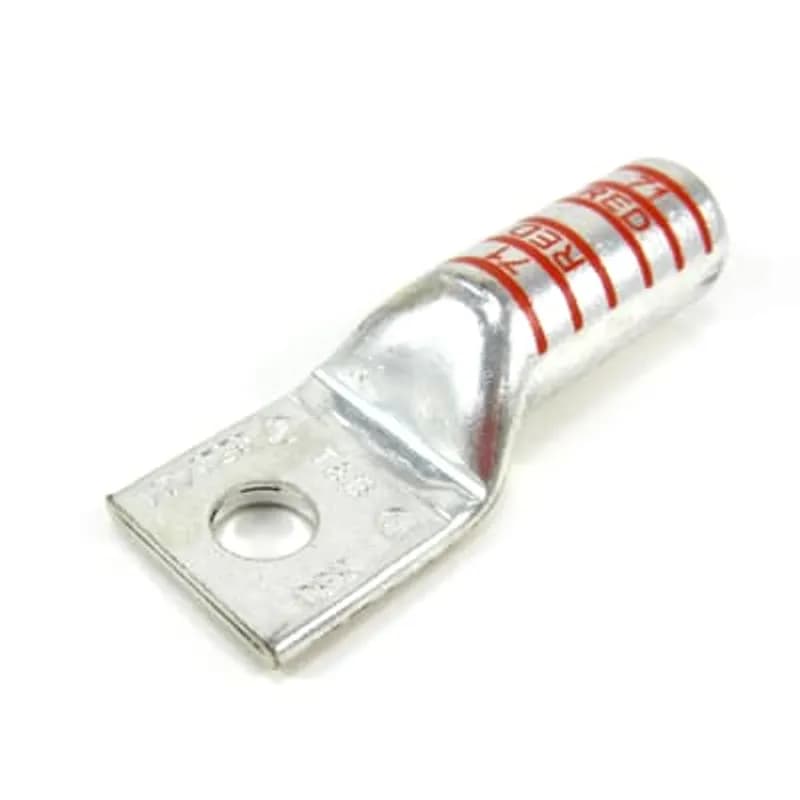

- Rated for 35kV maximum voltage and 90°C temperature
- Accommodates 350 kcmil stranded copper conductors
- 5/8-inch bolt hole for secure mechanical connections
- Tin-plated copper construction for corrosion resistance
- Peep hole for visual verification of conductor insertion
- Red color-coded barrel (Die Code 71) for easy identification
- UL486A and UL467 listed for compliance and reliability
- Compatible with Panduit and specified competitor crimping tools
Specifications
Cable Size | 350 kcmil |
Color | Red |
Insulation | None |
Material | Copper |
Number Of Holes | 1 |
Standard | UL E9809 |
Standard | UL E9809 / UL E9809 |
Stud Size | 5/8 in |
Type | Standard Barrel |
Voltage Rating | 35 kV |
Package Dimensions (L x W x H) | 4 IN x 4 IN x 3 IN |
Package Dimensions (L x W x H) | 10.16 cm x 10.16 cm x 7.62 cm |
Package Weight (Imperial) | 0.230 L |
Package Weight (Metric) | 0.104 kg |
OD581
Mechanical Crimp Tool with 5/8 Inch Nose Die APPLICATIONS: Designed for use with wide range and H-Tap connectors. It has fiberglass handles and comes with "O" and "D" Nose Dies. It has an output of 4.5 tons.
CD6A
U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
CD7
U-Type Compression Die - Black 2/0 AWG Copper U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
E6-PS-D
Non-Insulated Parallel Splice Connector For Wire Range 6 For Circular Mil Range 20,800-33,100 Length .5 Diameter .365,Metallic
AS-K1-H6
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
E989NNJ-5-HD
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
1SNK705030R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
Frequently Asked Questions
What is the minimum wire size for 54101?
The minimum wire size for product 54101 is 14 AWG.
What wire sizes are compatible with product 54101?
The product is compatible with wire sizes ranging from 14 AWG to 1000 kcmil.
What is the maximum wire size for 54101?
The maximum wire size for product 54101 is 1000 kcmil.
What is the bolt size for product 54101?
The bolt size for product 54101 is 1/4 inch.
What materials are used in product 54101?
Product 54101 is made of high conductivity copper and is electro tin plated.
What certifications does product 54101 have?
Product 54101 conforms to UL 486 A, UL 486 B, CSA C22.2 No. 65-18, and RoHS3.
How can I visually inspect the wire fit?
Product 54101 features a peep hole for visual inspection of wire fit.
What is the crimp area design of 54101?
The product has a chamfered barrel design that helps eliminate wire hang-ups and maximizes crimp area.
What installation tools are recommended for 54101?
Recommended installation tools include hydraulic tools like TBM6H and battery-operated tools like BPLT6BSCR.
What are the safety precautions for using 54101?
The product must be installed in accordance with applicable national and local electrical codes.
How to Install the 54183 Connector
This guide provides step-by-step instructions for installing and crimping the 54183 connector for high conductivity copper cables.
Estimated time: 30m
Tools needed:
Wire strippers, Crimping tool, Multimeter
Supplies needed:
Connector 54183, Insulation materials (adhesive pad or shrink tubing), Cable
- Prepare the cable
Strip the insulation from the cable to the specified length, ensuring not to nick any strands.
- Insert the cable into the connector
Clean the cable end and insert it into the connector until it stops. Use the inspection peep hole to confirm full insertion.
- Crimp the connector
Place the connector in the crimping tool and compress it according to the specified markings. Ensure to follow the correct number of compressions for the connector type.
- Remove sharp edges
After crimping, carefully remove any sharp edges, flash, or burrs from the connector.
- Insulate the connection
Use the appropriate insulation method as specified, either adhesive pads or shrink tubing, to cover the crimped area.
