UPC: 786210541587
Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Overview

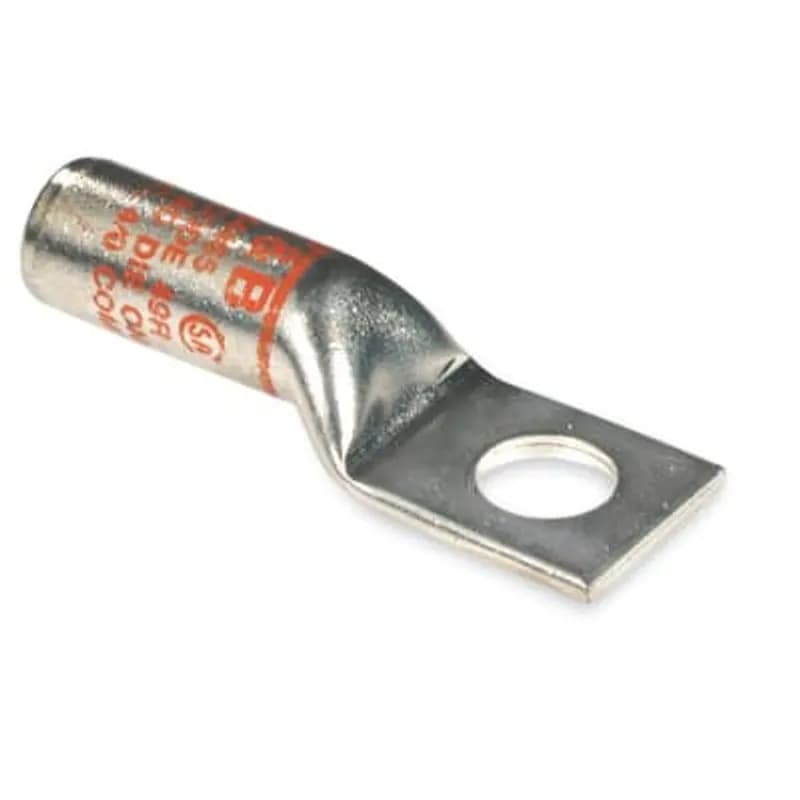

- Voltage rating: 35 kV for high-voltage applications
- Wire compatibility: 2/0 AWG with 5/16-inch bolt size
- Material: Premium copper with tin plating for corrosion resistance
- Design: One-hole lug with peep hole for visual wire insertion verification
- Identification: Die code 45 and black die color code for easy inventory management
Specifications
Cable Size | 2/0 AWG |
Color | Black |
Connection Type | Peep Hole for Wire Insertion |
Connection Type | Peep Hole (for visual inspection) |
Connection Type | One-Hole Lug |
Insulation | None |
Material | Copper |
Material | Copper, Tin Plated |
Mounting Type | Bolt Mount |
Mounting Type | Peep Hole for Visual Inspection |
Number Of Holes | 1 |
Series | ABB Installation Products |
Size | 2/0 AWG |
Size | 2/0 AWG, 5/16 Inch Bolt Size |
Standard | UL E9809 / UL E9809 |
Standard | UL E9809 |
Stud Size | 5/16 in |
Type | Standard Barrel |
Voltage Rating | 35kV |
Voltage Rating | 35 kV |
Package Dimensions (L x W x H) | 3.3 IN x 2.8 IN x 2.3 IN |
Package Dimensions (L x W x H) | 8.382 cm x 7.112 cm x 5.842 cm |
Package Weight (Imperial) | 0.070 L |
Package Weight (Metric) | 0.032 kg |
OD581
Mechanical Crimp Tool with 5/8 Inch Nose Die APPLICATIONS: Designed for use with wide range and H-Tap connectors. It has fiberglass handles and comes with "O" and "D" Nose Dies. It has an output of 4.5 tons.
CD6A
U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
CD7
U-Type Compression Die - Black 2/0 AWG Copper U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
E6-PS-D
Non-Insulated Parallel Splice Connector For Wire Range 6 For Circular Mil Range 20,800-33,100 Length .5 Diameter .365,Metallic
AS-K1-H6
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
E989NNJ-5-HD
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
1SNK705030R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
Frequently Asked Questions
What material is used in product 54158?
The product is made of high conductivity copper.
What is the finish of product 54158?
Product 54158 has a tin-plated finish.
What is the wire size compatibility for product 54158?
Product 54158 is compatible with wire sizes up to 2/0.
Are the dimensions of product 54158 exact?
All dimensions provided are for reference only and may vary.
How to Install the 54158 Standard Barrel Lug
This guide provides step-by-step instructions for installing the 54158 standard barrel lug, ensuring proper crimping and insulation for electrical connections.
Estimated time: 30m
Tools needed:
Wire strippers, Crimping tool, Multimeter
Supplies needed:
Standard barrel lugs (54158), Cable (2/0 AWG), Insulation tubing, Wire brush
- Prepare the cable
Strip the insulation from the cable to the specified length, ensuring not to nick the cable strands. Clean the cable end with a wire brush.
- Insert the cable into the lug
Insert the clean cable end into the 54158 lug until it stops. Use the inspection peep hole to confirm that the cable is fully inserted.
- Crimp the lug
Place the connector in the crimping tool and compress it according to the markings, starting near the tongue of the connector. Ensure the crimp is secure and free of sharp edges.
- Insulate the connection
Apply insulation to the crimped area using the method specified in the documentation. Ensure that the insulation is secure and covers all exposed metal.
- Verify the connection
Use a multimeter to check the continuity of the connection, ensuring that it is properly crimped and insulated.
