ABB - Installation Products 256-30695-1356 - Copper Two-Hole Lug, 90 Degree Standard Barrel, Peep Hole, Max 35kV, Wire Size #6 AWG, #10 Bole Size, 5/8 Inch Hole Spacing, Die Color Code Blue, Die Code 24
ABB - Installation Products

256-30695-1356

UPC: 786210886749

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Overview

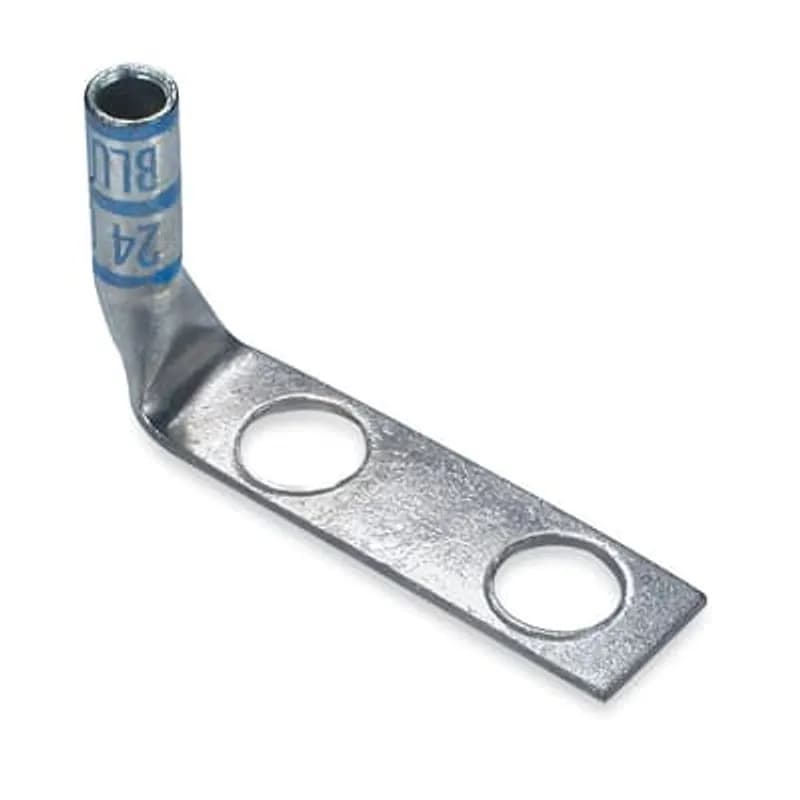

The ABB 256-30695-1356 is a high-quality, two-hole copper lug engineered by ABB Installation Products for secure and reliable electrical connections in demanding industrial environments. This lug features a standard 90-degree barrel configuration, optimized for efficient wire termination and space-saving installations. An integrated peep hole allows for visual confirmation of complete wire insertion, ensuring a safe and effective connection. Rated for a maximum voltage of 35kV, this lug is suitable for high-voltage power distribution and transmission applications. It is designed to accommodate wire sizes up to #6 AWG, providing broad compatibility with common industrial conductors. The lug features a #10 bolt size for secure mounting and a 5/8 inch hole spacing, ensuring stable attachment to busbars or equipment. Identified by its distinct blue die color code, which corresponds to Die Code 24, this lug simplifies inventory management and application identification, reducing the risk of errors. Manufactured in the USA, the 256-30695-1356 is constructed from durable copper for excellent conductivity and long-term performance, making it an essential component for electrical infrastructure projects, industrial machinery, and power systems where dependable connections are critical.
  • Two-hole copper lug for secure electrical connections
  • 90-degree standard barrel with peep hole for visual inspection
  • Rated for maximum 35kV applications
  • Accommodates wire sizes up to #6 AWG
  • Blue Die Color Code 24 for easy identification

Specifications

Cable Size
6 AWG
Color
Blue
Connection Type
Two-Hole Lug, 90 Degree Standard Barrel
Connection Type
Peep Hole
Connection Type
Two-Hole Lug
Insulation
None
Material
Copper
Mounting Type
5/8 Inch Hole Spacing
Mounting Type
Two-Hole
Mounting Type
Peep Hole
Number Of Holes
2
Poles
2-hole
Series
256-30695
Size
#6 AWG wire, #10 stud, 5/8" hole spacing
Size
#6 AWG wire, #10 stud size, 5/8 inch hole spacing
Size
#6 AWG wire, #10 bolt, 5/8" hole spacing
Size
#6 AWG, #10 Bolt Size, 5/8 Inch Hole Spacing
Size
#6 AWG wire, 5/8 Inch hole spacing
Size
#6 AWG
Standard
UL E9809 / UL E9809
Stud Size
#10 IN
Type
Standard Barrel 90 Degree Bend
Voltage Rating
35kV
Voltage Rating
35 kV
Package Dimensions (L x W x H)
3.5 IN x 3 IN x 3 IN
Package Dimensions (L x W x H)
8.89 cm x 7.62 cm x 7.62 cm
Package Weight (Imperial)
0.030 L
Package Weight (Metric)
0.014 kg
Copper Two-Hole Lug, Standard Barrel, Peep Hole, Tongue Length 1.43 Inches, Max 35kV, Wire Size #6 AWG, 1/4 Inch Bolt Size, 3/4 Inch Hole Spacing, Tin Plated, Die Color Code Blue, Die Code 24

256-30695-372

Copper Two-Hole Lug, Standard Barrel, Peep Hole, Tongue Length 1.43 Inches, Max 35kV, Wire Size #6 AWG, 1/4 Inch Bolt Size, 3/4 Inch Hole Spacing, Tin Plated, Die Color Code Blue, Die Code 24
Copper Two-Hole Lug, Long Barrel, Peep Hole, Max 35kV, Wire Size #6 AWG, 1/4 Inch Bolt Size, 1 Inch Hole Spacing, Tin Plated, Die Code 24, Die Color Code Blue

54852BE0416PH

Copper Two-Hole Lug, Long Barrel, Peep Hole, Max 35kV, Wire Size #6 AWG, 1/4 Inch Bolt Size, 1 Inch Hole Spacing, Tin Plated, Die Code 24, Die Color Code Blue
Copper Two-Hole Lug, Long Barrel, Peep Hole, Max 35kV, Wire Size #6 AWG, 1/4 Inch Bolt Size, 1/2 Inch Hole Spacing, Tin Plated, Die Code 24, Die Color Code Blue

54852BE0408PH

Copper Two-Hole Lug, Long Barrel, Peep Hole, Max 35kV, Wire Size #6 AWG, 1/4 Inch Bolt Size, 1/2 Inch Hole Spacing, Tin Plated, Die Code 24, Die Color Code Blue
Copper Blank Tongue Lug, 90 Degree Bend Standard Barrel, Peep Hole, Max 35kV, Wire Size 400 kcmil, Silver Plated, Die Code 76, Die Color Code Blue

54283UBBTSP

Copper Blank Tongue Lug, 90 Degree Bend Standard Barrel, Peep Hole, Max 35kV, Wire Size 400 kcmil, Silver Plated, Die Code 76, Die Color Code Blue
Copper One-Hole Lug, Standard Barrel - Bell Shaped End, Peep Hole, Max 35kV, #6 AWG Wire, 1/4 Inch Bolt Size, Tin Plated, Die Code 24, Die Color Code Blue

54105BS

Copper One-Hole Lug, Standard Barrel - Bell Shaped End, Peep Hole, Max 35kV, #6 AWG Wire, 1/4 Inch Bolt Size, Tin Plated, Die Code 24, Die Color Code Blue
