ABB - Installation Products 171-SV18-18 - Pre-assembly with 18 inch vertical mounting bracket, 4 inch pre-galvanized steel square box, box depth-2-1/8 inch, 3/4 inch raised two device box cover and pre-installed pigtail.
ABB - Installation Products

171-SV18-18

UPC: 785991027785

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Overview

The ABB 171-SV18-18, SKU 171-SV18-18, is a pre-assembled electrical enclosure solution from ABB Installation Products, designed for efficient and reliable installation in industrial and commercial settings. This unit features a robust 4-inch square electrical box constructed from pre-galvanized steel, offering excellent corrosion resistance and durability. The box has a depth of 2-1/8 inches, providing ample space for wiring and device connections. A key component of this assembly is the integrated 18-inch vertical mounting bracket. This bracket ensures secure and stable mounting of the electrical box, facilitating installation in various orientations and locations where vertical support is critical. The pre-galvanized steel construction of both the box and bracket ensures longevity even in challenging environments. Included with the box is a 3/4-inch raised two-device cover. This raised design offers increased clearance, accommodating devices and wiring without obstruction, and allows for the installation of up to two electrical devices. The cover's design also simplifies access for maintenance or future modifications. To further streamline the installation process, the ABB 171-SV18-18 comes with a pre-installed pigtail. This integrated wiring lead eliminates the need for separate wire connectors at the initial connection point, significantly reducing labor time and the potential for installation errors. This feature is particularly beneficial for electrical contractors and facility managers looking to optimize project timelines and reduce on-site assembly efforts. This pre-assembled unit is ideal for applications requiring a dependable and convenient electrical box solution. Its combination of durable materials, thoughtful design features, and pre-assembly benefits makes it a practical choice for electrical installations where efficiency and reliability are paramount. The UNSPSC code for this product is 39121309.
  • Pre-assembled for rapid installation
  • Durable 4-inch square pre-galvanized steel box (2-1/8" deep)
  • Includes 18-inch vertical mounting bracket for secure placement
  • 3/4-inch raised cover accommodates two devices
  • Pre-installed pigtail simplifies wiring connections

Specifications

Color
Gray
Knockouts
True
Material
Steel
Mounting
Bracket
Type
eFab
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.700 L
Package Weight (Metric)
0.771 kg
Pre-assembly with 18 inch vertical mounting bracket, 4 inch pre-galvanized steel square box, box depth-2-1/8 inch, 3/4 inch raised one device box cover and pre-installed pigtail.

171-SV18-14

Pre-assembly with 18 inch vertical mounting bracket, 4 inch pre-galvanized steel square box, box depth-2-1/8 inch, 3/4 inch raised one device box cover and pre-installed pigtail.
Pre-assembly with 18 inch vertical mounting bracket, 4 inch pre-galvanized steel square box, box depth-2-1/8 inch, 1/2 inch raised one device box cover and pre-installed pigtail.

171-SV18-13

Pre-assembly with 18 inch vertical mounting bracket, 4 inch pre-galvanized steel square box, box depth-2-1/8 inch, 1/2 inch raised one device box cover and pre-installed pigtail.

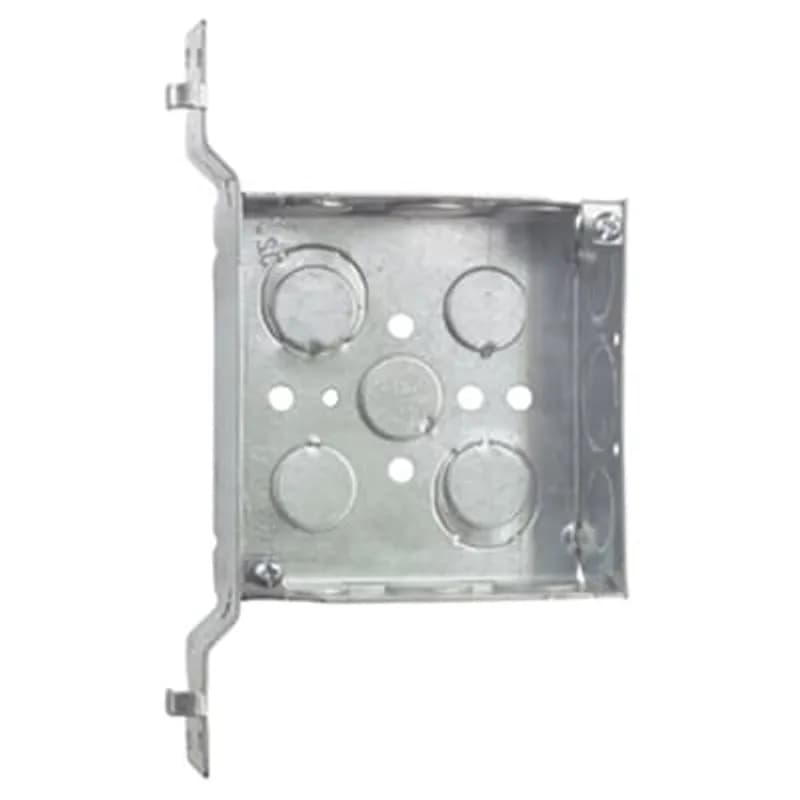

Square Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, MS Bracket, #12 AWG Solid Ground Wire Pigtail, and Armored Cable Clamp (C-3), For Use with Armored/Metal Clad Cable

52151 MSX P

Square Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, MS Bracket, #12 AWG Solid Ground Wire Pigtail, and Armored Cable Clamp (C-3), For Use with Armored/Metal Clad Cable
Pre-assembly with 'MS' bracket 4 inch pre-galvanized steel square box, box depth-2-1/8 inch with 5/8 inch raised one device box cover and pre-installed pigtail.

171MS1458

Pre-assembly with 'MS' bracket 4 inch pre-galvanized steel square box, box depth-2-1/8 inch with 5/8 inch raised one device box cover and pre-installed pigtail.
Pre-Fabricated, Two Gang Outlet Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 and 3/4 Inch Eccentric Knockouts, Galvanized Steel, 1/2 Inch Raised Box Cover, with 10-1/2 Inch Grounding #12 AWG Solid Ground Wire Pigtail and 18 Inch Vertical Mounting Bracket, For Use with Conduit

151-SV18-17

Pre-Fabricated, Two Gang Outlet Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 and 3/4 Inch Eccentric Knockouts, Galvanized Steel, 1/2 Inch Raised Box Cover, with 10-1/2 Inch Grounding #12 AWG Solid Ground Wire Pigtail and 18 Inch Vertical Mounting Bracket, For Use with Conduit
Pre-assembly with 18 inch vertical mounting bracket, 4 inch pre-galvanized steel square box, box depth-2-1/8 inch, 5/8 inch raised one device box cover and pre-installed pigtail.

171-SV18-1458

Pre-assembly with 18 inch vertical mounting bracket, 4 inch pre-galvanized steel square box, box depth-2-1/8 inch, 5/8 inch raised one device box cover and pre-installed pigtail.
Pre-Fabricated, Two Gang Outlet Box, 30.3 Cubic Inches, 4 Inch Square x 2-1/8 Inch Deep, 1/2 and 3/4 Inch Eccentric Knockouts, 5/8 Inch Raised Box Cover, with Grounding #12 AWG Solid Ground Wire Pigtail and 18 Inch Vertical Mounting Bracket, For Use with Conduit

171-SV18-1858

Pre-Fabricated, Two Gang Outlet Box, 30.3 Cubic Inches, 4 Inch Square x 2-1/8 Inch Deep, 1/2 and 3/4 Inch Eccentric Knockouts, 5/8 Inch Raised Box Cover, with Grounding #12 AWG Solid Ground Wire Pigtail and 18 Inch Vertical Mounting Bracket, For Use with Conduit

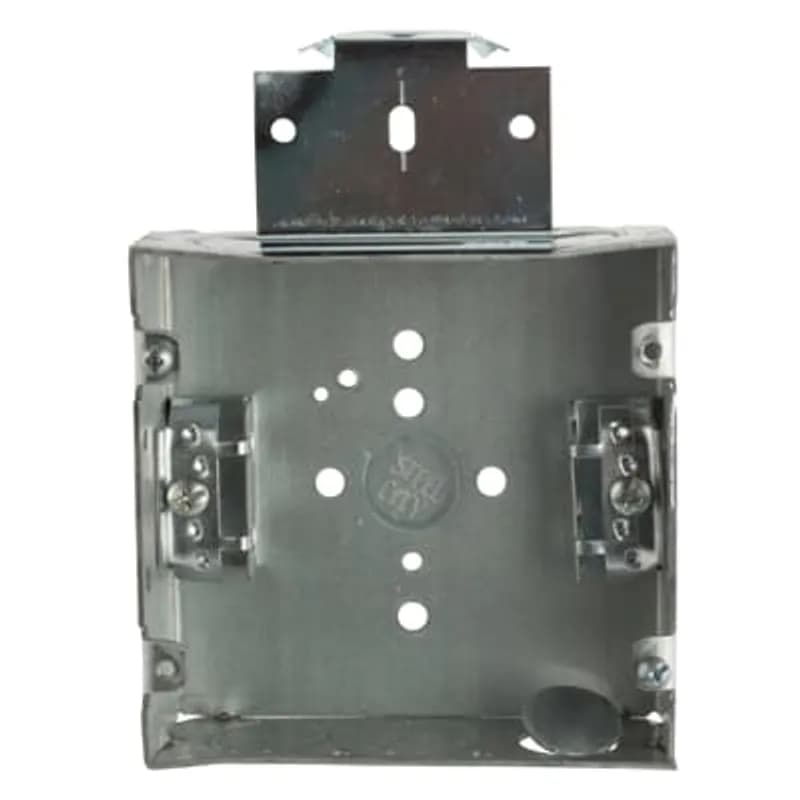

Pre-Fabricated, Two Gang Outlet Box, 42 Cubic Inches, 4-11/16 Inches Square x 2-1/8 Inches Deep, 1/2 Inch Knockouts, Galvanized Steel, 5/8 Inch Raised Device Box Cover, Metal Stud Bracket, Armored Cable Clamp (C-3) and 10-1/2 Inch Pigtail

72171MSX1858

Pre-Fabricated, Two Gang Outlet Box, 42 Cubic Inches, 4-11/16 Inches Square x 2-1/8 Inches Deep, 1/2 Inch Knockouts, Galvanized Steel, 5/8 Inch Raised Device Box Cover, Metal Stud Bracket, Armored Cable Clamp (C-3) and 10-1/2 Inch Pigtail
Pre-assembly with 'MS' bracket 4 inch pre-galvanized steel square box with C-3 armored cable clamp, box depth-2-1/8 inch. 1/2 inch to 1-1/2 inch one device adjustable mud ring and pre-installed pigtail.

171MSXADJ

Pre-assembly with 'MS' bracket 4 inch pre-galvanized steel square box with C-3 armored cable clamp, box depth-2-1/8 inch. 1/2 inch to 1-1/2 inch one device adjustable mud ring and pre-installed pigtail.
Square Box, 29.5 Cubic Inches, 4-11/16 Inches Square x 1-1/2 Inches Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, Welded Construction, with Metal Stud Bracket and 10-1/2 Inch #12 AWG Solid Wire Pigtail, For use with Conduit

72151MSP

Square Box, 29.5 Cubic Inches, 4-11/16 Inches Square x 1-1/2 Inches Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, Welded Construction, with Metal Stud Bracket and 10-1/2 Inch #12 AWG Solid Wire Pigtail, For use with Conduit
Pre-Fabricated, Two Gang Outlet Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 and 3/4 Inch Eccentric Knockouts, Galvanized Steel, 1/2 Inch Raised Box Cover, with 10-1/2 Inch Grounding #12 AWG Solid Ground Wire Pigtail and Box to Stud Bracket, For Use with Conduit

151-SH2346-17

Pre-Fabricated, Two Gang Outlet Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 and 3/4 Inch Eccentric Knockouts, Galvanized Steel, 1/2 Inch Raised Box Cover, with 10-1/2 Inch Grounding #12 AWG Solid Ground Wire Pigtail and Box to Stud Bracket, For Use with Conduit
Square Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, SV Bracket Mounted Flush, 10-1/2 Inch #12 AWG Solid Ground Wire Pigtail, For use with Conduit

52151V1234P

Square Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, SV Bracket Mounted Flush, 10-1/2 Inch #12 AWG Solid Ground Wire Pigtail, For use with Conduit

Frequently Asked Questions

What is the depth of the 521911234RD box?

The 521911234RD box is 31⁄2 inches deep.

What is the capacity of the 521911234RD box?

The 521911234RD box has a capacity of 46 cubic inches.

What is the standard packaging quantity for the box?

The standard packaging quantity for the 521911234RD box is 24.

What types of knockouts are available?

The box includes (4) 1⁄2" & 3⁄4" combo knockouts on each side and bottom.

What materials are used in the 521911234RD box?

The box is made from high-quality Steel City® components.

What types of devices can the box accommodate?

The box can accommodate both 4" and 4 11⁄16" outlet boxes.

What is the purpose of the cable support in the mounting bracket?

The built-in cable support secures cable 6 inches above the box, satisfying NEC® code requirements.

Is the 521911234RD box suitable for fire alarm systems?

Yes, the red-painted version is designed for quick identification of life-safety electrical systems.

What is the installation height for the T Bracket?

The T Bracket provides a fixed height of 18 inches for installation.

What is the purpose of the locator tab on the T Bracket?

The locator tab helps locate installed boxes that may be hidden by wall coverings.
