Contact for Pricing
Overview
- 15kV operating voltage rating
- 200 Amp current rating
- Integrated test point for diagnostics
- Cold-shrinkable jacket seal for secure termination
- Bi-metal connector for 240-4/0 AWG stranded/compressed or 250 kcmil solid/compact conductors
Specifications
Amperage Rating | 200 A |
Application | Designed for connecting to and operating 15kV Class, 95kV BIL apparatus |
Color | Black |
Conductor Range | 4/0 STR/COMPR AWG , 250 kcmil |
Connection | Compression |
Current Rating | 200 A |
Environmental Conditions | Fully Submersible |
Insulation | True |
Length | 11.71 in |
Length | 297.434 mm |
Material | Bi-Metal |
Material | Housing - EPDM-Rubber |
Size | 240 - 4/0 Stranded/Compressed or 250 Solid/Compact |
Special Features | Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended Length Housing and Compression Lug - plus 3-1/4 inch (82.6mm) |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |

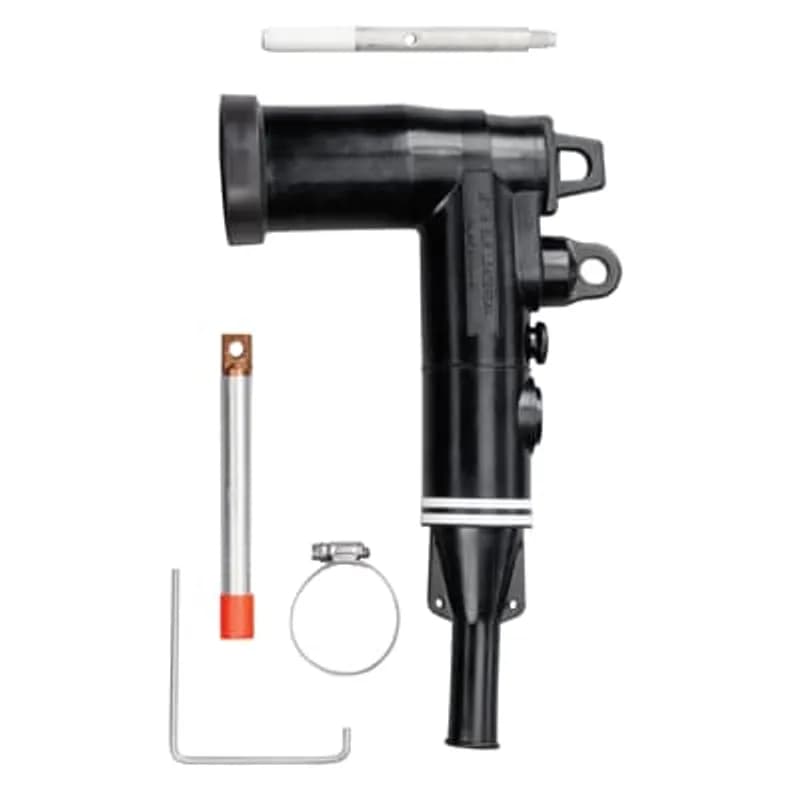

Type | Loadbreak Repair Elbow Connector with Test Point |
Voltage Rating | 15 kV |
Voltage Rating | 15kV |
Width | 7.95 in |
Width | 201.93 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
CI16-90-AT8PL
Hinged Connector Interface Fitting, Standard Profile Plug, 90 Degree Elbow with 360 Degree Swivel, 8-Way Ampseal Automotive Connector to Conduit, Conduit Size NC16/NW13, Operating Temperature -40 to 120 Degrees Celsius, RoHS Compliant, IP40 Rating, Very High UV Protection, Polyamide (Nylon), Black
VAG-022-00
Solenoid Valve Connectors, Field Wireable, 3 Pole, Form A 18mm, 24V, 10A, LED w/MOV, .5-NPT opening
T1505063000-000
Rectangular hoods and bases portfolio features base housing, cover, hood, or hood and base housing assembly with inserts connector product types. Products are designed for bottom, side, top, or top and side cable entry. Rectangular hoods and bases offer solutions with a variety of hood and base locking device types as well as connector mounting types.Frequently Asked Questions
What is the maximum operating voltage for this loadbreak elbow?
The loadbreak repair elbow has a maximum operating voltage of 15kV.
What is the current rating of the ABB 168ELR-7495-5270-S elbow?
This loadbreak repair elbow is rated for 200 Amps.
What conductor sizes can this elbow accommodate?
It accommodates 240 - 4/0 AWG stranded/compressed or 250 kcmil solid/compact conductors.
What is the compatible cable insulation diameter range?
The elbow is designed for cable insulation diameters ranging from 0.740 to 1.100 inches.
What type of seal does this repair elbow utilize?
This repair elbow features a cold-shrinkable jacket seal for secure termination.
Does this loadbreak elbow include a test point?
Yes, this loadbreak repair elbow is equipped with a test point for diagnostics.
What material is the connector on this elbow made of?
The connector on this loadbreak repair elbow is bi-metal.
