ABB - Installation Products 151-SV12-17 - Pre-assembly with 12 inch vertical mounting bracket, 4 inch pre-galvanized steel square box, box depth-1-1/2 inch, 1/2 inch raised two device box cover and pre-installed pigtail.
ABB - Installation Products

151-SV12-17

UPC: 785991027549

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Overview

The ABB 151-SV12-17 pre-assembled electrical box kit simplifies installations in industrial and commercial environments. This kit includes a 12-inch vertical mounting bracket for secure positioning, a 4-inch pre-galvanized steel square box with 1-1/2-inch depth, and a 1/2-inch raised two-device cover for flush mounting. The pre-installed pigtail eliminates wiring complexity, reducing installation time by up to 40% compared to field-assembled alternatives. The galvanized steel construction ensures corrosion resistance in harsh conditions, while the square box design accommodates standard device configurations. Ideal for electrical panels, control systems, and machinery enclosures, this product meets UL and NEC standards for safety and performance. The pre-assembled design minimizes labor costs and potential errors, making it a cost-effective solution for OEMs and contractors. Compatible with 1/2-inch trade size conduits, this box supports two devices in a compact footprint. Manufactured in the US by ABB Installation Products, the 151-SV12-17 delivers reliability in high-volume installations.
  • Pre-assembled kit with 12-inch vertical mounting bracket for secure installation
  • 4-inch pre-galvanized steel square box with 1-1/2-inch depth for corrosion resistance
  • 1/2-inch raised two-device cover for flush mounting in panels and enclosures
  • Pre-installed pigtail for quick, reliable electrical connections
  • Compatible with 1/2-inch trade size conduits and standard devices

Specifications

Color
Galvanized Steel
Connection Type
Pigtail
Material
Steel
Material
Galvanized Steel
Mounting Type
Vertical
Mounting Type
Surface Mount with Vertical Bracket
Mounting Type
Vertical bracket
Mounting Type
Surface Mount with 12-inch vertical bracket
Mounting Type
Vertical bracket, 12 inch
Mounting Type
Surface Mount with 12 inch vertical bracket
Series
151
Series
151-SV
Series
ABB 151-SV
Size
12" vertical bracket, 4" square box, depth 1-1/2"
Size
4 inch square box, 12 inch vertical bracket
Size
4-inch square box, 1-1/2 inch depth
Size
4-inch square box, 1-1/2 inch depth, 12-inch vertical bracket
Size
4 Inch Square Box, 1-1/2 Inch Depth
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.530 L
Package Weight (Metric)
0.694 kg
Pre-assembly with 18 inch vertical mounting bracket, 4 inch pre-galvanized steel square box, box depth-2-1/8 inch, 3/4 inch raised one device box cover and pre-installed pigtail.

171-SV18-14

Pre-assembly with 18 inch vertical mounting bracket, 4 inch pre-galvanized steel square box, box depth-2-1/8 inch, 3/4 inch raised one device box cover and pre-installed pigtail.
Pre-assembly with 18 inch vertical mounting bracket, 4 inch pre-galvanized steel square box, box depth-2-1/8 inch, 1/2 inch raised one device box cover and pre-installed pigtail.

171-SV18-13

Pre-assembly with 18 inch vertical mounting bracket, 4 inch pre-galvanized steel square box, box depth-2-1/8 inch, 1/2 inch raised one device box cover and pre-installed pigtail.
Pre-assembly with 'MS' bracket 4 inch pre-galvanized steel square box, box depth-2-1/8 inch with 5/8 inch raised one device box cover and pre-installed pigtail.

171MS1458

Pre-assembly with 'MS' bracket 4 inch pre-galvanized steel square box, box depth-2-1/8 inch with 5/8 inch raised one device box cover and pre-installed pigtail.
Pre-assembly with 18 inch vertical mounting bracket, 4 inch pre-galvanized steel square box, box depth-2-1/8 inch, 5/8 inch raised one device box cover and pre-installed pigtail.

171-SV18-1458

Pre-assembly with 18 inch vertical mounting bracket, 4 inch pre-galvanized steel square box, box depth-2-1/8 inch, 5/8 inch raised one device box cover and pre-installed pigtail.
Pre-assembly with 'MS' bracket 4 inch pre-galvanized steel square box, box depth-2-1/8 inch with 1 inch raised one device box cover and pre-installed pigtail.

171MS15

Pre-assembly with 'MS' bracket 4 inch pre-galvanized steel square box, box depth-2-1/8 inch with 1 inch raised one device box cover and pre-installed pigtail.

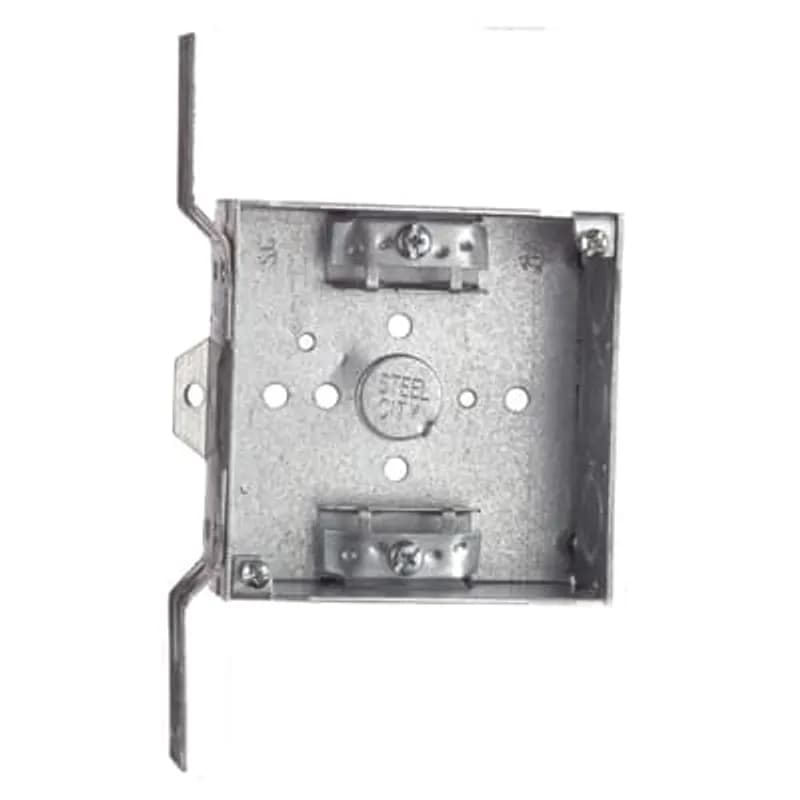

Square Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, Non-Metallic Cable Clamp (C-3), 10-1/2 Inch #12 AWG Solid Ground Wire Pigtail, and CV Bracket, for use with Armored/Metal Clad Cable

52151-CVX-P

Square Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, Non-Metallic Cable Clamp (C-3), 10-1/2 Inch #12 AWG Solid Ground Wire Pigtail, and CV Bracket, for use with Armored/Metal Clad Cable
Square Box, 42 Cubic Inches, 4-11/16 Inches Square x 2-1/8 Inches Deep, 3/4 Inch, and 1 Inch Eccentric Knockouts, Pre-Galvanized Steel, Welded Construction, Pigtail, For use with Conduit

72171341-P

Square Box, 42 Cubic Inches, 4-11/16 Inches Square x 2-1/8 Inches Deep, 3/4 Inch, and 1 Inch Eccentric Knockouts, Pre-Galvanized Steel, Welded Construction, Pigtail, For use with Conduit

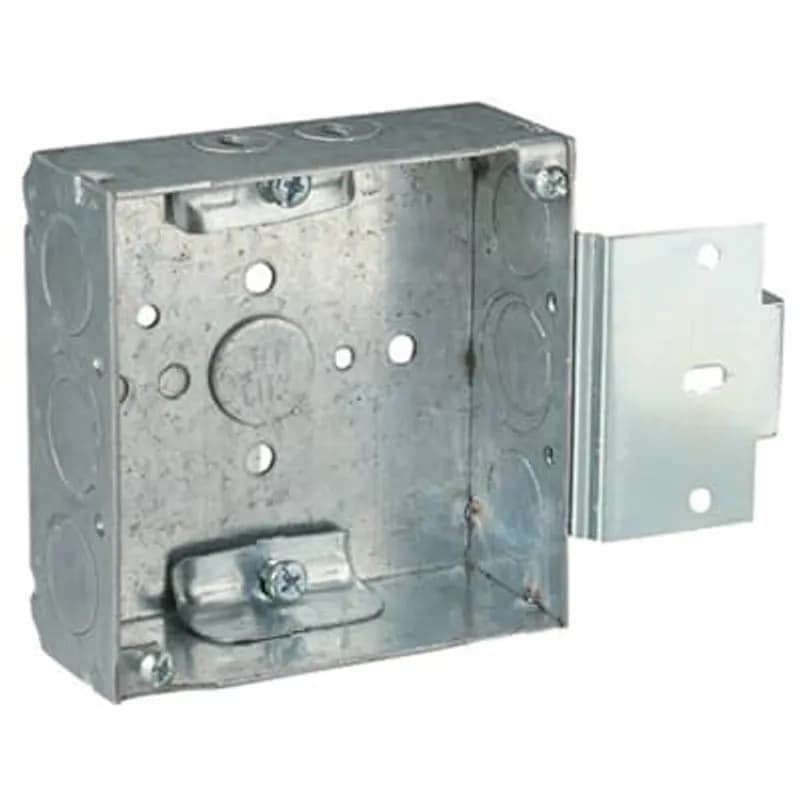

Square Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, Welded Construction, MS Bracket and #12 AWG Solid Ground Wire Pigtail, for use with Conduit

52151MSP

Square Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, Welded Construction, MS Bracket and #12 AWG Solid Ground Wire Pigtail, for use with Conduit
Pre-assembly with Box support cover, 5/8 inch raised one device, 4 inch pre-galvanized steel square box, box depth-2-1/8 inch, and pre-installed pigtail.

52171-CM1458

Pre-assembly with Box support cover, 5/8 inch raised one device, 4 inch pre-galvanized steel square box, box depth-2-1/8 inch, and pre-installed pigtail.
Pre-Fabricated, Single Gang Outlet Box, 30.3 Cubic Inches, 4 Inch Square x 2-1/8 Inch Deep x 1/2 Inch Raised, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Galvanized Steel, with Box Support Cover, 10-1/2 Inch #12 AWG Solid Ground Wire Pigtail, For use with Conduit

52171-CM13

Pre-Fabricated, Single Gang Outlet Box, 30.3 Cubic Inches, 4 Inch Square x 2-1/8 Inch Deep x 1/2 Inch Raised, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Galvanized Steel, with Box Support Cover, 10-1/2 Inch #12 AWG Solid Ground Wire Pigtail, For use with Conduit
Pre-assembly with box to stud bracket, 4 inch pre-galvanized steel square box, 5/8 inch raised one device box cover and pre-installed pigtail. For use with conduit.

151-SH2346-1458

Pre-assembly with box to stud bracket, 4 inch pre-galvanized steel square box, 5/8 inch raised one device box cover and pre-installed pigtail. For use with conduit.
Pre-assembly with box to stud bracket, 4 inch pre-galvanized steel square box, box depth-2-1/8 inch, 5/8 inch raised two device box cover and pre-installed pigtail. For use with conduit.

171-SH2346-1858

Pre-assembly with box to stud bracket, 4 inch pre-galvanized steel square box, box depth-2-1/8 inch, 5/8 inch raised two device box cover and pre-installed pigtail. For use with conduit.
