ABB - Electrification
VB6-30-01-F01
Contact for Pricing
Overview
- 3-pole design for three-phase motor control up to 4 kW (AC-3) at 400V
- Built-in mechanical interlock prevents phase-to-phase short circuits
- Flat pin connection for secure, shake-proof wiring and easy installation
- Hum-free AC coil (3.5 VA) for energy-efficient, silent operation
- Suitable for rail or wall mounting with switch position indication
Specifications
Application | Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits. |
Connection Type | Flat Pin Connection |
Current Rating | 10 A |
Current Rating | 4 kW (AC-3) |
Mounting Type | Rail or Wall Mounting |
Mounting Type | Rail/Wall Mount |
Poles | 3P |
Rated Control Circuit Voltage | 24 V AC |
Series | VB6 |
Size | 82x110x108mm |
Size | Compact |

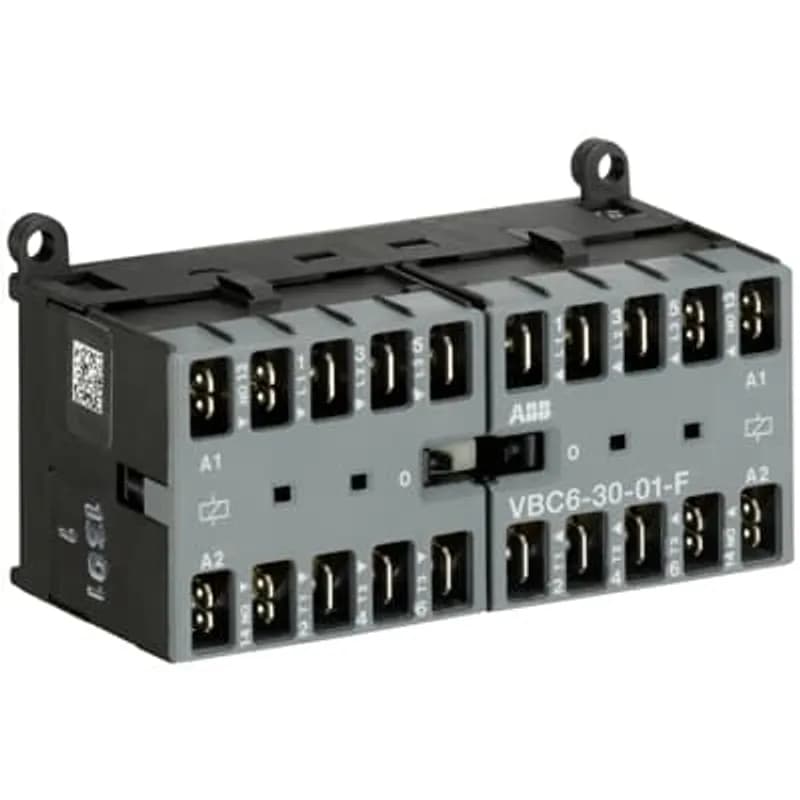

Special Features | The VB6-30-01-F mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, flat pin connection and normal mechanical interlock. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 4 kW (AC-3). Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting. |
Standard | RoHs, CSA, cUL, CE, GOST |
Terminal Type | Flat-Pin Connections |
Type | Contactors |
Voltage Rating | 690 V AC |
Package Dimensions (L x W x H) | 11.024 IN x 4.528 IN x 2.126 IN |
Package Dimensions (L x W x H) | 28.001 cm x 11.5011 cm x 5.4 cm |
Package Weight (Imperial) | 3.957 L |
Package Weight (Metric) | 1.795 kg |
Frequently Asked Questions
What is the maximum motor power for this contactor?
This contactor is rated for three-phase motor loads up to 4 kW at 400V AC-3.
What type of connection does the VB6-30-01-F01 use?
The VB6-30-01-F01 features a flat pin connection for plug-in wiring and a shake-proven connection.
Can this contactor be mounted on a DIN rail?
Yes, the VB6-30-01-F01 is suitable for both rail and wall mounting.
What is the coil consumption of this contactor?
The AC operated coil has a low consumption of 3.5 VA at both pull-in and holding.
Does this contactor have a mechanical interlock?
Yes, the VB6-30-01-F01 has a built-in mechanical interlock to prevent phase-to-phase short circuits.
How to Install the ABB VB6-30-01-F01 Mini Reversing Contactor
Step-by-step guide to install the ABB VB6-30-01-F01 mini reversing contactor on DIN rail or wall.
Estimated time: 15m
Tools needed:
Screwdriver, Wire strippers, Crimping tool
Supplies needed:
Mounting screws, DIN rail (if applicable), Wiring cables
- Prepare the mounting surface
Ensure the mounting surface is clean, flat, and free of obstructions. For rail mounting, attach the DIN rail securely to the surface.
- Mount the contactor
Position the VB6-30-01-F01 on the DIN rail or wall, aligning the mounting holes. Secure with screws and ensure it is firmly attached.
- Connect the wiring
Insert the flat pin connectors into the corresponding terminals, ensuring a secure and shake-proof connection. Connect the control circuit wires to the coil terminals, observing the correct polarity.
- Verify mechanical interlock
Check that the built-in mechanical interlock is engaged and functioning correctly to prevent phase-to-phase short circuits.
- Test the operation
Apply power to the control circuit and verify that the contactor operates smoothly. Check the switch position indication to confirm the operational status.
