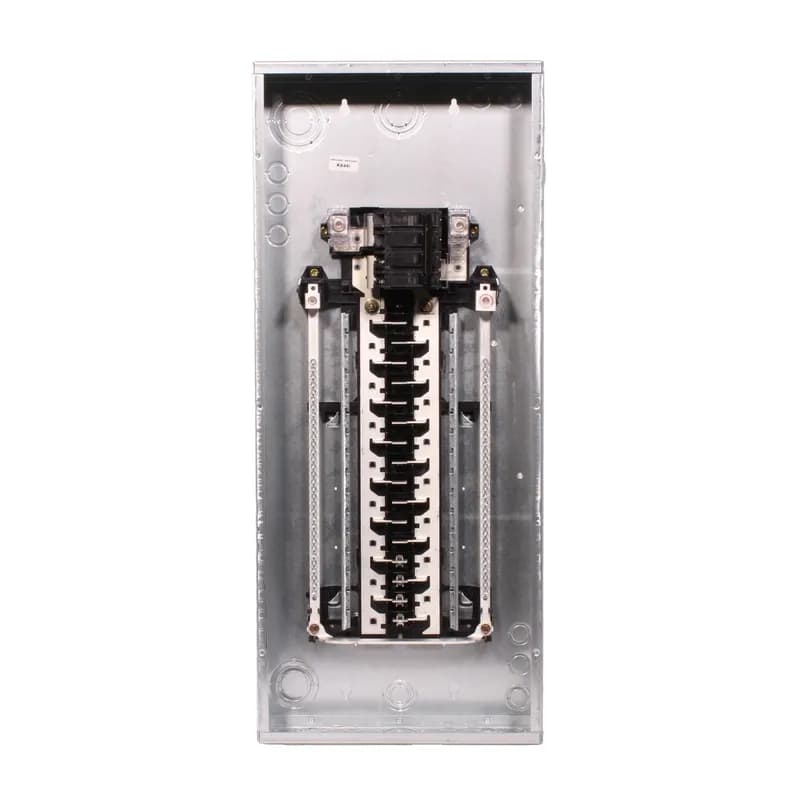

ABB - Electrification TM4020CCU - PowerMark Gold main breaker load centers arrive with a main breaker installed for a convenient and swift install. Main breakers allow for the user to stop the flow of electricity in the load center, shutting off all the power in the residence. The TM4020CCU features spaces for 40, 1" breakers, a 200 A bus ampere rating, a copper bus, and a combination surface/flush enclosure.
ABB - Electrification

TM4020CCU

UPC: 783164112627

Contact for Pricing

Overview

The ABB PowerMark Gold TM4020CCU is a 40-space, 200A main breaker load center engineered for reliable residential and light commercial electrical distribution. This unit comes pre-installed with a main breaker for immediate power shutoff capability, enhancing safety and simplifying installation. The TM4020CCU features a robust copper bus, ensuring superior conductivity and efficient energy transfer, which reduces heat buildup and improves system performance. With 40 spaces for 1" breakers, it accommodates current and future electrical needs in single-family homes, multi-unit dwellings, or light commercial applications. The combination surface/flush enclosure provides installation flexibility, allowing mounting either on the surface or recessed within a wall. This load center is solar-ready, with specifications indicating compatibility for PV systems (refer to catalog for specific PV breaker ratings and limitations, e.g., Max PV + main breaker rating ≤ busbar ratings x 1.2). Manufactured by ABB - Electrification in the US, the TM4020CCU adheres to high standards of electrical distribution equipment. Its design prioritizes ease of use for electricians and homeowners alike, with a focus on safety and long-term operational integrity. The inclusion of a main breaker simplifies emergency power cutoff, a critical safety feature for any electrical system. The copper bus is a key differentiator, offering enhanced electrical properties over aluminum alternatives for critical distribution points.
  • 40 spaces for 1" breakers with 200A bus ampere rating
  • Pre-installed main breaker for immediate power shutoff and safety
  • Copper bus for superior conductivity and reduced heat buildup
  • Combination surface/flush enclosure for flexible installation
  • Solar-ready with compatibility for PV systems (refer to catalog for specifics)

Specifications

Amperage Rating
200 A
Current Rating
200 A
Enclosure
Indoor
Height
39.8 in
Interrupt Rating
22 22
Load Regulation
120/240V ac
Material
Copper
Mounting Type
Combination Surface/Flush
Number Of Feeders
Either
Phase
1
Poles
40
Series
PowerMark Gold
Size
40 spaces
Special Features
PowerMark Gold main breaker load centers arrive with a main breaker installed for a convenient and swift install. Main breakers allow for the user to stop the flow of electricity in the load center, shutting off all the power in the residence. The TM4020CCU features spaces for 40, 1" breakers, a 200 A bus ampere rating, a copper bus, and a combination surface/flush enclosure.
Standard
UL
Type
Standard
Wiring Configuration
3 Wire
Package Dimensions (L x W x H)
41.25 IN x 16 IN x 5.5 IN
Package Dimensions (L x W x H)
104.775 cm x 40.64 cm x 13.97 cm
Package Weight (Imperial)
39.000 L
Package Weight (Metric)
17.690 kg
PowerMark Gold convertible load centers arrive as main lug, but have the capability to have a main breaker installed. All ABB load centers are rated up to 60 degree/75 degree centrigrade and is suitable for use with service entrance equipment when installed in accordance with electrical code. The TLM4020CCUG features space for 40, 1" breakers, 200 A bus ampere rating, a copper bus, a factory installed ground bar, and a combination/flush enclosure.

TLM4020CCUG

PowerMark Gold convertible load centers arrive as main lug, but have the capability to have a main breaker installed. All ABB load centers are rated up to 60 degree/75 degree centrigrade and is suitable for use with service entrance equipment when installed in accordance with electrical code. The TLM4020CCUG features space for 40, 1" breakers, 200 A bus ampere rating, a copper bus, a factory installed ground bar, and a combination/flush enclosure.
LOAD CTR MLO 200A 40CKT N3R GRAY PON

PLM4020R

LOAD CTR MLO 200A 40CKT N3R GRAY PON
LOAD CTR MLO 200A 40 CKT N1 GRAY PON

PLM4020C

LOAD CTR MLO 200A 40 CKT N1 GRAY PON
PowerMark Gold main breaker load centers arrive with a main breaker installed for a convenient and swift install. Main breakers allow for the user to stop the flow of electricity in the load center, shutting off all the power in the residence. The TM4020RCU features spaces for 40, 1" breakers, a 200 A bus ampere rating, a copper bus, and an outdoor suitable enclosure.

TM4020RCU

PowerMark Gold main breaker load centers arrive with a main breaker installed for a convenient and swift install. Main breakers allow for the user to stop the flow of electricity in the load center, shutting off all the power in the residence. The TM4020RCU features spaces for 40, 1" breakers, a 200 A bus ampere rating, a copper bus, and an outdoor suitable enclosure.
PowerMark Gold main breaker load centers arrive with a main breaker installed for a convenient and swift install. Main breakers allow for the user to stop the flow of electricity in the load center, shutting off all the power in the residence. The TM3220CCU features spaces for 32, 1" breakers, a 200 A bus ampere rating, a copper bus, and a combination surface/flush enclosure.

TM3220CCU

PowerMark Gold main breaker load centers arrive with a main breaker installed for a convenient and swift install. Main breakers allow for the user to stop the flow of electricity in the load center, shutting off all the power in the residence. The TM3220CCU features spaces for 32, 1" breakers, a 200 A bus ampere rating, a copper bus, and a combination surface/flush enclosure.
LOAD CTR MCB 200A 60CKT N1 WHITE PON

PM6020W

LOAD CTR MCB 200A 60CKT N1 WHITE PON
PowerMark PRO main breaker plug-on neutral load centers arrive with a main circuit breaker installed for a convenient and swift install. Main circuit breakers allow for the user to stop the flow of electricity in the load center, shutting off all the power in the residence. The PM6020C features spaces for 60 - 1" circuit breakers and 120 circuits, a 200-ampere bus rating, copper bus bars, and a gray combination/flush enclosure.

PM6020C

PowerMark PRO main breaker plug-on neutral load centers arrive with a main circuit breaker installed for a convenient and swift install. Main circuit breakers allow for the user to stop the flow of electricity in the load center, shutting off all the power in the residence. The PM6020C features spaces for 60 - 1" circuit breakers and 120 circuits, a 200-ampere bus rating, copper bus bars, and a gray combination/flush enclosure.
PowerMark Gold main breaker load centers arrive with a main breaker installed for a convenient and swift install. Main breakers allow for the user to stop the flow of electricity in the load center, shutting off all the power in the residence. The TM2020CCU features spaces for 20, 1" breakers, a 200 A main ampere rating, a copper bus, and a combination surface/flush enclosure.

TM2020CCU

PowerMark Gold main breaker load centers arrive with a main breaker installed for a convenient and swift install. Main breakers allow for the user to stop the flow of electricity in the load center, shutting off all the power in the residence. The TM2020CCU features spaces for 20, 1" breakers, a 200 A main ampere rating, a copper bus, and a combination surface/flush enclosure.
PowerMark PRO main breaker plug-on neutral load centers arrive with a main circuit breaker installed for a convenient and swift install. Main circuit breakers allow for the user to stop the flow of electricity in the load center, shutting off all the power in the residence. The PM4020C features spaces for 40 - 1" circuit breakers and 80 circuits, a 200-ampere bus rating, copper bus bars, and a gray combination/flush enclosure.

PM4020C

PowerMark PRO main breaker plug-on neutral load centers arrive with a main circuit breaker installed for a convenient and swift install. Main circuit breakers allow for the user to stop the flow of electricity in the load center, shutting off all the power in the residence. The PM4020C features spaces for 40 - 1" circuit breakers and 80 circuits, a 200-ampere bus rating, copper bus bars, and a gray combination/flush enclosure.
PowerMark Gold main breaker load centers arrive with a main breaker installed for a convenient and swift install. Main breakers allow for the user to stop the flow of electricity in the load center, shutting off all the power in the residence. The TM1620CCUG features spaces for 16, 1" breakers, a 200 A main ampere rating, a copper bus, a factory installed ground bar, and a combination surface/flush enclosure.

TM1620CCUG

PowerMark Gold main breaker load centers arrive with a main breaker installed for a convenient and swift install. Main breakers allow for the user to stop the flow of electricity in the load center, shutting off all the power in the residence. The TM1620CCUG features spaces for 16, 1" breakers, a 200 A main ampere rating, a copper bus, a factory installed ground bar, and a combination surface/flush enclosure.
PowerMark PRO main breaker plug-on neutral load centers arrive with a main circuit breaker installed for a convenient and swift install. Main circuit breakers allow for the user to stop the flow of electricity in the load center, shutting off all the power in the residence. The PM4020R features spaces for 40 - 1" circuit breakers and 80 circuits, a 200-ampere bus rating, copper bus bars, and a gray NEMA 3R enclosure.

PM4020R

PowerMark PRO main breaker plug-on neutral load centers arrive with a main circuit breaker installed for a convenient and swift install. Main circuit breakers allow for the user to stop the flow of electricity in the load center, shutting off all the power in the residence. The PM4020R features spaces for 40 - 1" circuit breakers and 80 circuits, a 200-ampere bus rating, copper bus bars, and a gray NEMA 3R enclosure.
PowerMark Gold Meter Socket Load Centers are an ideal option for residential applications. Additonally, PowerMark Gold Meter Socket Load Centers provide increased reliability and maximum circuit layout flexibility. All our PowerMark Gold Meter Socket Load Centers are built with high-quality materials for extended durability. Furthermore, their perfected design allows for an easy and fast installation. The TSM2020CFCU is a main breaker meter socket with a ring and features spaces for 20, 1" breakers, a 200A main ampere rating, a copper bus, and an outdoor suitable, semi-flush enclosure.

TSM2020CFCU

PowerMark Gold Meter Socket Load Centers are an ideal option for residential applications. Additonally, PowerMark Gold Meter Socket Load Centers provide increased reliability and maximum circuit layout flexibility. All our PowerMark Gold Meter Socket Load Centers are built with high-quality materials for extended durability. Furthermore, their perfected design allows for an easy and fast installation. The TSM2020CFCU is a main breaker meter socket with a ring and features spaces for 20, 1" breakers, a 200A main ampere rating, a copper bus, and an outdoor suitable, semi-flush enclosure.

Frequently Asked Questions

Is the TM4020CCU UL-listed?

Yes, the TM4020CCU is UL-listed, meeting high standards for electrical distribution equipment.

Where is the TM4020CCU manufactured?

The TM4020CCU is manufactured in the US by ABB - Electrification.

Does the TM4020CCU come with a main breaker installed?

Yes, the TM4020CCU arrives with a main breaker pre-installed for immediate power shutoff capability.

What is the phase and voltage rating of the TM4020CCU?

The TM4020CCU operates on a single-phase, 3-wire, 120/240V AC system.

What is the bus ampere rating of the TM4020CCU?

The TM4020CCU features a 200A bus ampere rating, ensuring reliable electrical distribution for residential and light commercial applications.

What type of bus does the TM4020CCU use?

The TM4020CCU uses a copper bus, which provides superior conductivity compared to aluminum alternatives.

What is the enclosure type for the TM4020CCU?

The TM4020CCU features a combination surface/flush enclosure, suitable for both surface and recessed mounting.

Can the TM4020CCU be installed in a recessed wall?

Yes, the TM4020CCU features a combination surface/flush enclosure, allowing installation either on the surface or recessed within a wall.

What is the interrupting capacity rating of the TM4020CCU?

The TM4020CCU has an interrupting capacity rating of 22kAIC, ensuring safe operation under fault conditions.

Is the TM4020CCU compatible with solar PV systems?

The TM4020CCU is solar-ready, but specific PV breaker ratings and limitations must be checked in the catalog (e.g., Max PV + main breaker rating ≤ busbar ratings x 1.2).
